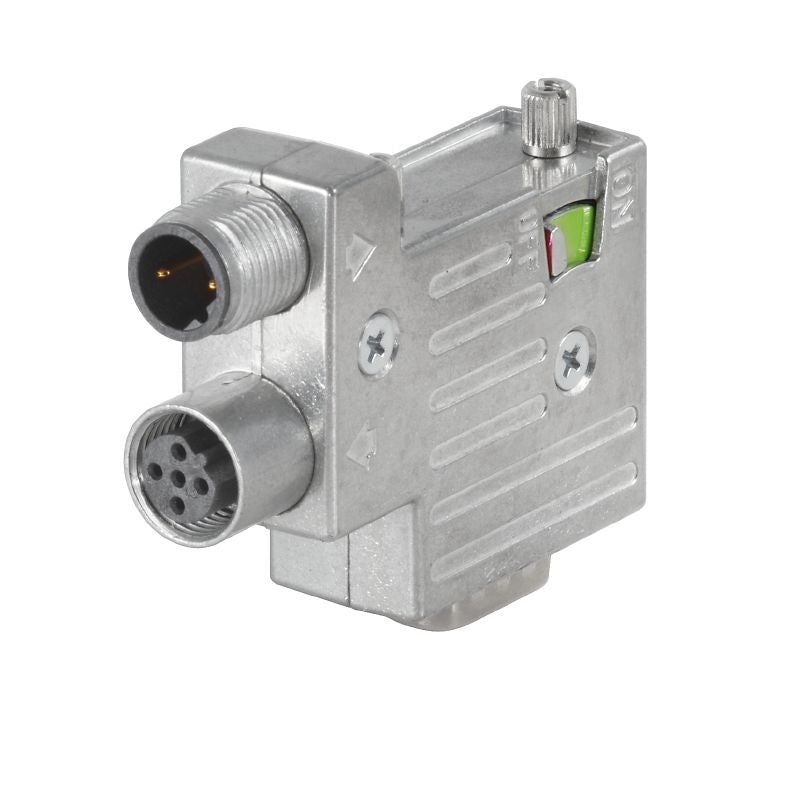

1140650000 - M12 SUB-D Connector, 16.8mm Depth, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

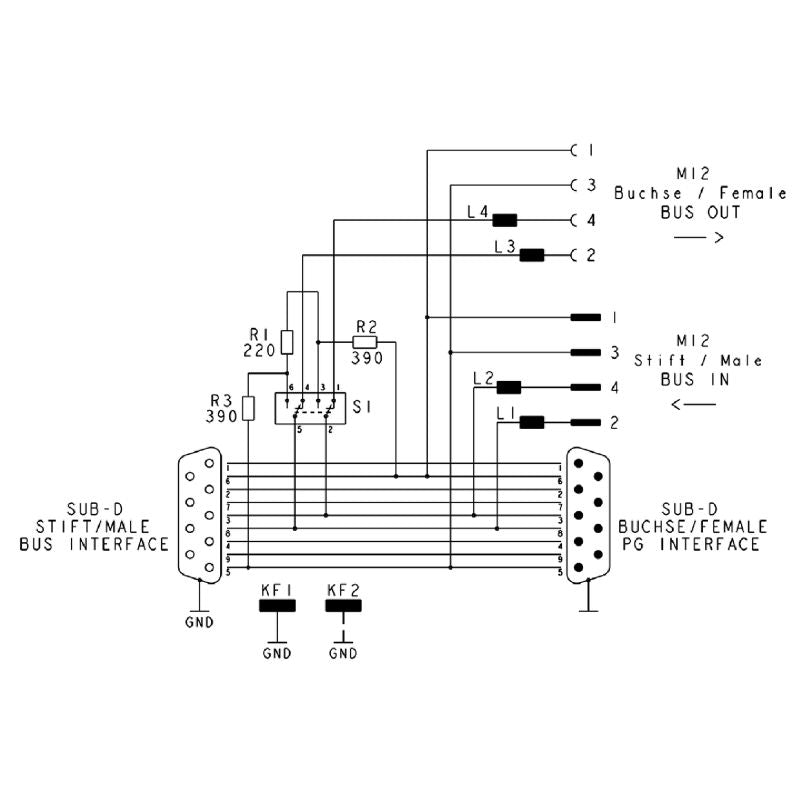

Introducing a versatile SUB-D connector suitable for a variety of applications With dimensions of 168 mm in depth, 588 mm in height, and 49 mm in width, this connector is compact yet robust, weighing just 83 g It adheres to RoHS standards with specific exemptions, ensuring environmental compliance Supporting a data transfer rate of 12 MBit/s, it features both M12 B-coded male and female connectors with clearly designated pins.

Crafted from ZnAl, the housing is designed to withstand temperatures ranging from -20 to +70 °C, making it a reliable choice for a range of operating conditions.

Features and Benefits:

•Compliant with RoHS standards.

•Interlock available for reliable connection.

•Suitable for embedding with a terminating resistor.

•Designed for PROFIBUS applications.

•Plugging cycles rated at ≥ 200.

Specifications:
