1108710500 - 5m M12 4-Pole Sensor/Actuator Connection Cable

1108710500 - 5m M12 4-Pole Sensor/Actuator Connection Cable

SKU: SKU: 1108710500   Download PDF

Select a Variant:
  • 1108710500 - 5m M12 4-Pole Sensor/Actuator Connection Cable
Qty:
Regular price Now $16.76   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $16.76 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

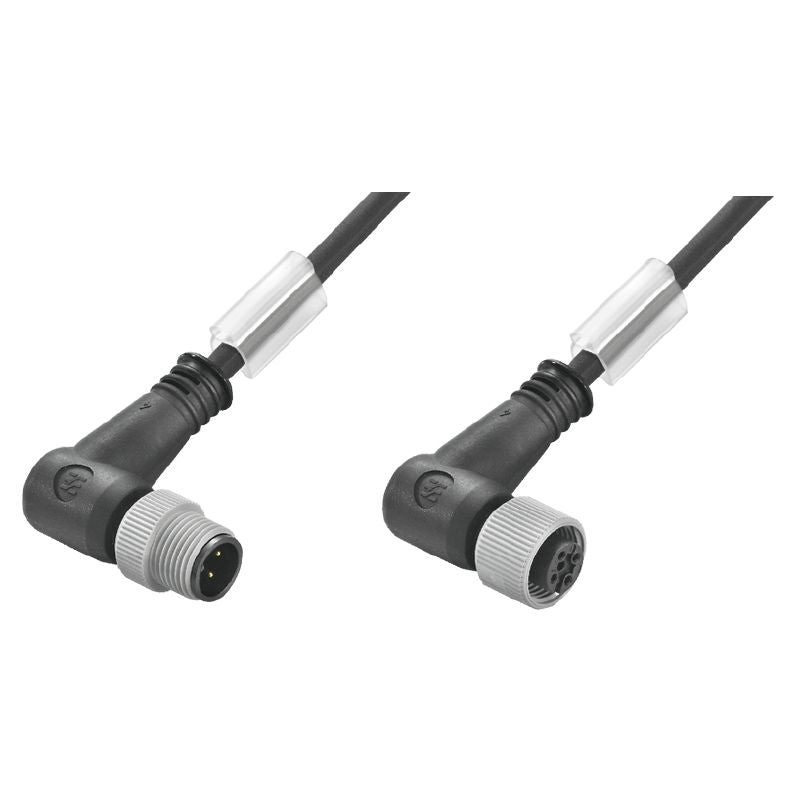

This connecting line is specially designed for linking sensors and actuators, featuring an M12 to M12 connection with four poles Spanning 5 meters in length, it has pin and socket configurations that are oriented at a 90-degree angle The cable is unshielded and does not include an LED indicator Its sheath is crafted from PUR material, ensuring it is halogen-free and suitable for various applications.

Features and Benefits:

    •ROHS compliant with exemption.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Cable length 5 m
 Number of poles 4
 Outer cladding in accordance with UL AWM style 20549 (80 °C / 300 V)
 Outside diameter 4.7 mm ± 0.2 mm
 Insulation PP
 Bending cycles 12 Mio
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Torsion resistance 360 °/m
 Contact surface Gold-plated
 Threaded ring material Plastic
 Plugging cycles ≥ 100
