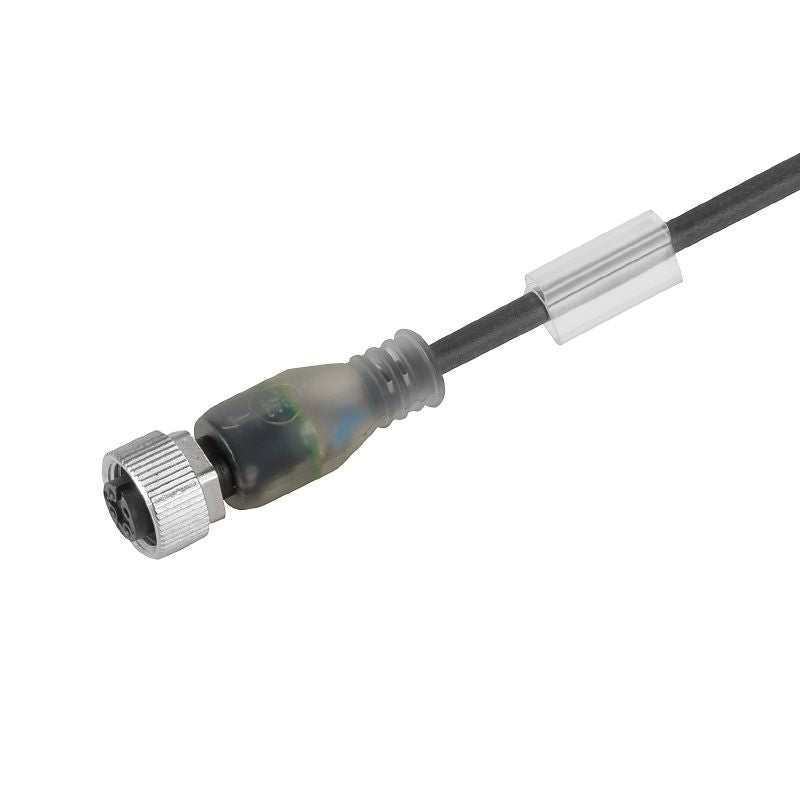

1094190200 - 2m PUR Connector, 4 Poles, Straight Female Socket

1094190200 - 2m PUR Connector, 4 Poles, Straight Female Socket

SKU: SKU: 1094190200

Variant:
  • 1094190200 - 2m PUR Connector, 4 Poles, Straight Female Socket
Regular price Now $11.54
Regular price BEFORE   $0.00 Sale price Now $11.54
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover our premium sensor/actuator connector, ideal for various applications This 2-meter long cable features a 4-pole female socket with a straight configuration, designed for easy connectivity Although it is not shielded, it supports LED functionality, ensuring reliable performance Constructed from sturdy PUR material, this connector meets RoHS standards and is classified as exempt under specific conditions, making it a compliant choice for your projects.

Features and Benefits:

    •LED functionality included.

    •Halogen-free sheath material.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Cable length 2 m
 Core cross-section 0.34 mm²
 Number of poles 4
 Outside diameter 4.7 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68
 Bending cycles 12 Mio
 Weight 62.48 g
 Coding A-coded
 Insulation resistance 10^8 Ω
 Connection thread M12
 Plugging cycles ≥ 100
