1093210500 - 5m PUR Sensor/Actuator Line with 3 Poles and LED

1093210500 - 5m PUR Sensor/Actuator Line with 3 Poles and LED

SKU: SKU: 1093210500

Select a Variant:
  • 1093210500 - 5m PUR Sensor/Actuator Line with 3 Poles and LED
Qty:
Regular price Now $13.96   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $13.96 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

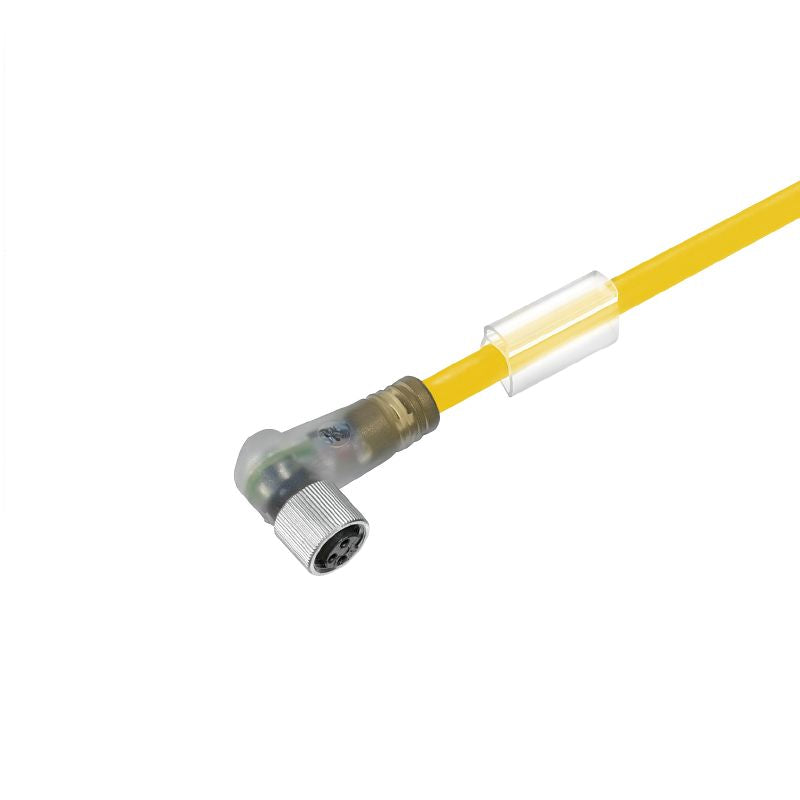

Introducing our versatile sensor/actuator line, featuring a unique design with one end that lacks a connector This model showcases an angled socket equipped with three poles for efficient connection With a generous cable length of 5 meters, this non-shielded option is ideal for various applications Notably, it incorporates an LED for added functionality Crafted from halogen-free PUR material, the sheath ensures safety and environmental considerations are met.

Features and Benefits:

    •Approvals: RoHS Compliant.

    •LED indicator present.

    •Hydrolysis and microbe resistant.

    •Suitable for cable carriers.

Specifications:

 Cable length 5 m
 Number of poles 3
 Outside diameter 4.1 mm ± 0.2 mm
 Insulation resistance 10^8 Ω
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67/IP68 when screwed in, IP65/IP66
 Speed 5 m/s
 Bending radius minimum moving 10 x cable diameter
 Bending radius minimum stationary 5 x cable diameter
 Temperature range moving -25...80 °C
 Temperature range stationary -40...80 °C
 Sheath material PUR
 Sheathing color yellow
 Threaded ring material Brass, nickel-plated
 Tightening torque M8: 0.5 - 0.6 Nm
