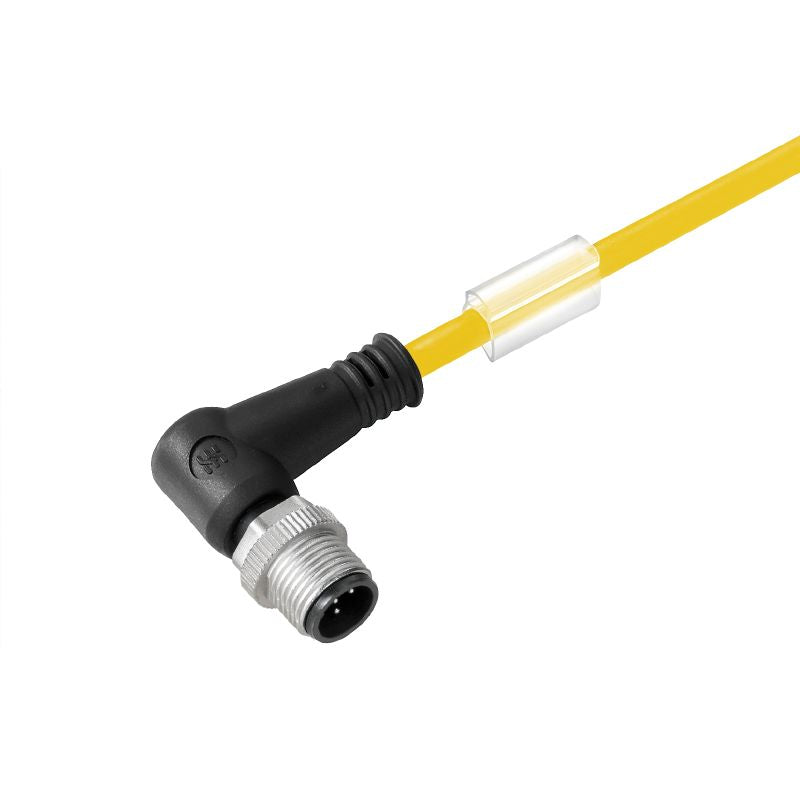

1093180150 - 1.5m M12 5-Pole Sensor/Actuator Line, PUR Sheath

1093180150 - 1.5m M12 5-Pole Sensor/Actuator Line, PUR Sheath

SKU: SKU: 1093180150

Select a Variant:
  • 1093180150 - 1.5m M12 5-Pole Sensor/Actuator Line, PUR Sheath
Qty:
Regular price Now $8.58   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $8.58 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this sensor/actuator component, featuring a 15 m length with a 5-pole M12 connector at one end, designed without a connector on the other This product is made from halogen-free PUR material and does not include shielding or an integrated LED Perfect for various applications, it combines functionality with reliable build quality.

Features and Benefits:

    •Compliant with RoHS and has exemptions.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

    •Gold-plated contact surface.

    •Electrical connections rated IP segments from IP65 to IP69.

Specifications:

 Number of poles 5
 Cable length 1.5 m
 Core cross-section 0.34 mm²
 Outside diameter 5 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Nominal current 4 A
 Nominal voltage 125 V
 Insulation resistance 10^8 Ω
 Protection degree IP65/IP66/IP67/IP68/IP69
 Bending cycles 5 Mio

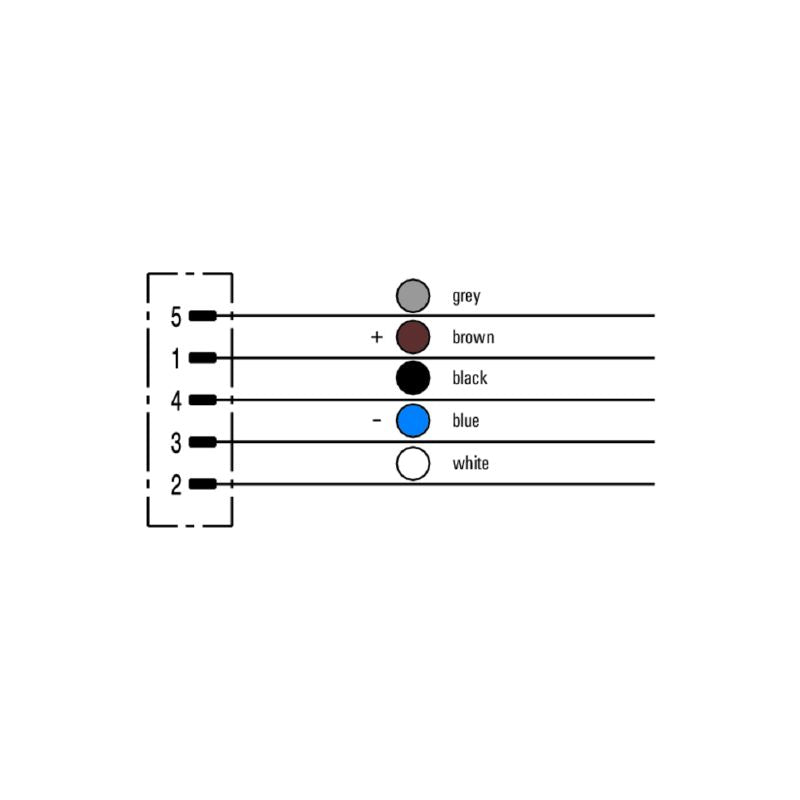

 Plug, left M12, A-coded, IP69, male contact, angled 90°, Plastic, unshielded
 Plug, right free conductor end
