1062030000 - Blue SlimFix Cable Markers 4-6mm, 120 Pack (Pack of 120)

1062030000 - Blue SlimFix Cable Markers 4-6mm, 120 Pack (Pack of 120)

SKU: SKU: 1062030000 Download PDF

Variant:
  • 1062030000 - Blue SlimFix Cable Markers 4-6mm, 120 Pack (Pack of 120)
Regular price Now $24.32
Regular price BEFORE   $0.00 Sale price Now $24.32
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

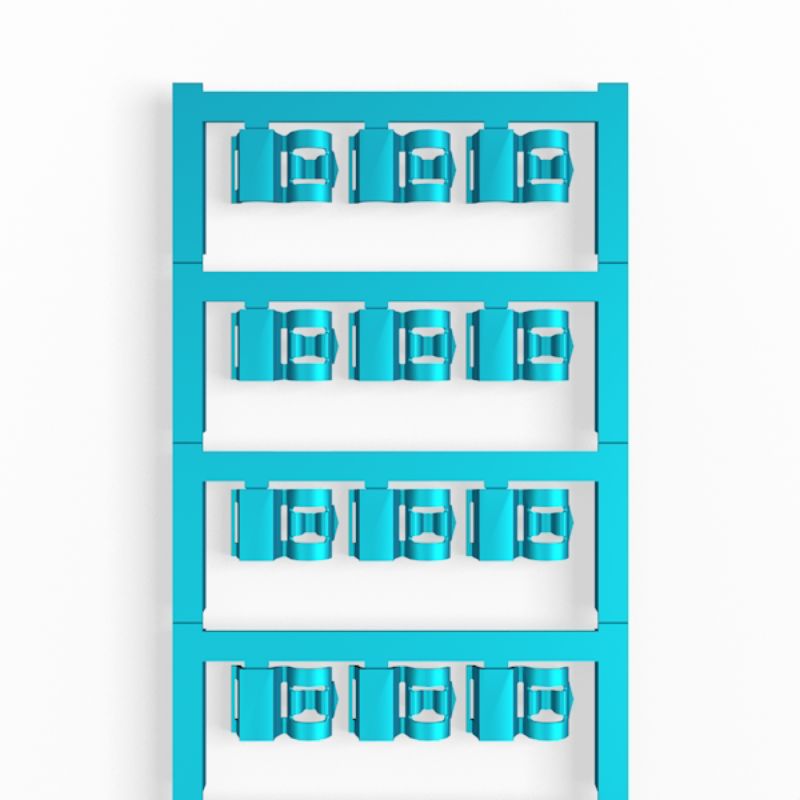

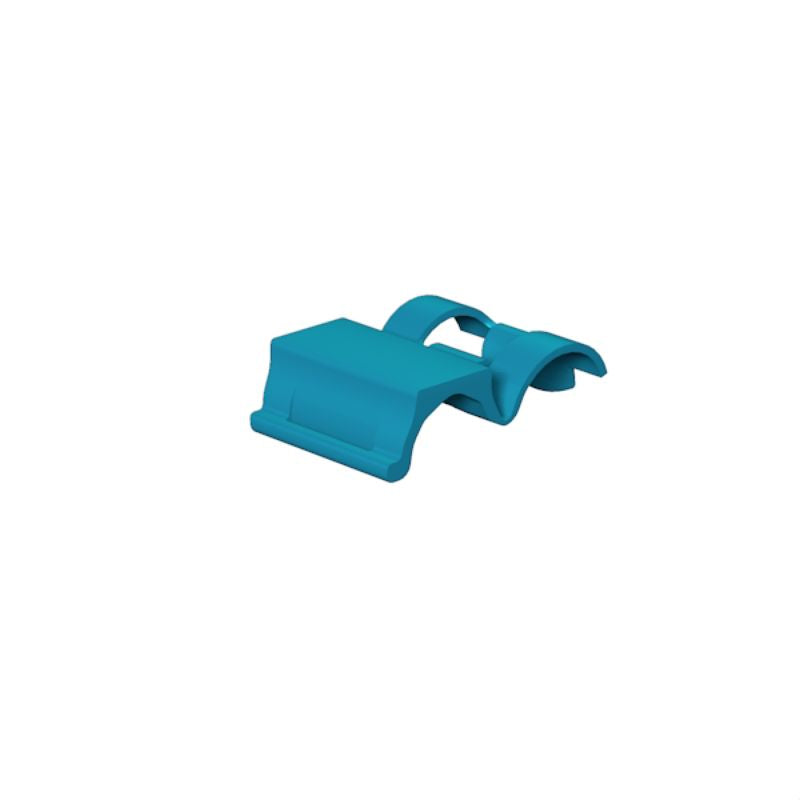

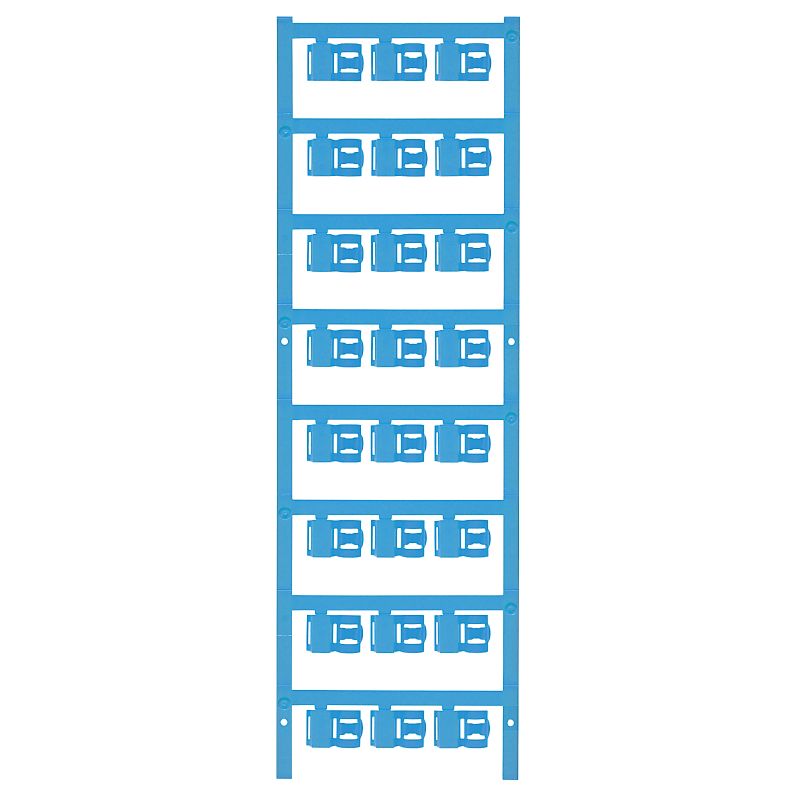

Introducing the SFC 25/12 MC NE BL, a dependable solution that meets RoHS compliance standards This item is part of the SlimFix Clip series, specifically designed for cable and conductor markers ranging from 4 to 6 mm and measuring 12 x 93 mm, all presented in a striking blue hue Delivered in convenient packs of 120, this product is crafted from durable polyamide 66 material It is capable of functioning effectively in environments with temperatures between -40 to 100 °C, showcasing its adaptability.

Additionally, it boasts a low carbon footprint, producing only 0005 kg CO2 equivalent from cradle to gate, making it an eco-conscious choice.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •No SVHC above 0.1 wt%.

    •Halogen-free material.

    •Suitable for machinery industries.

    •Neutral type of printing.

    •UL 94 flammability rating of V-2.

    •Used for marking conductors and cables.

Specifications:

 Depth 9.1 mm
 Height 12 mm
 Width 9.3 mm
 Operating temperature range -40...100 °C
 Basic material Polyamide 66
 Conductor cross-section, max. 10 mm²
 Conductor cross-section, min. 4 mm²
 Conductor O.D. 4 - 6 mm
 Cross-section for connected wire 4 - 10 mm²
 Size of labelling field 12 x 5.8 mm
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Form of supply MultiCard
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
