1058490500 - 5m Shielded M12 Connection Line for Sensors & Actuators

1058490500 - 5m Shielded M12 Connection Line for Sensors & Actuators

SKU: SKU: 1058490500   Download PDF

Select a Variant:
  • 1058490500 - 5m Shielded M12 Connection Line for Sensors & Actuators
Qty:
Regular price Now $44.40   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $44.40 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

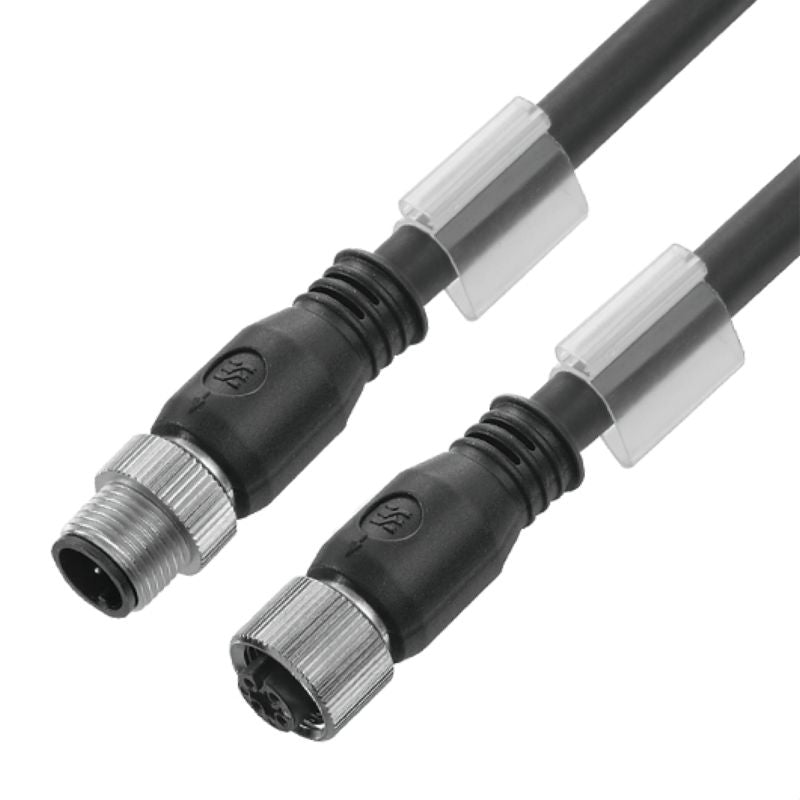

Introducing the SAIL-M12GM12G-3S50U, a versatile connection cable ideal for sensor and actuator applications Measuring 5 meters in length, this cable comes equipped with M12 connectors on both ends and features a robust design with 3 poles The protective PUR sheath ensures durability, while the cable remains compliant with RoHS environmental standards Please note that it does not support LED integration and is intended for operation within specific temperature ranges, abiding by relevant safety and environmental regulations.

Features and Benefits:

    •Shielded design for improved signal integrity.

    •Core cross-section of 0.34 mm² allows for efficient current conduction.

    •Halogen-free materials for environmental safety.

    •Hydrolysis and microbe resistant for durability in various conditions.

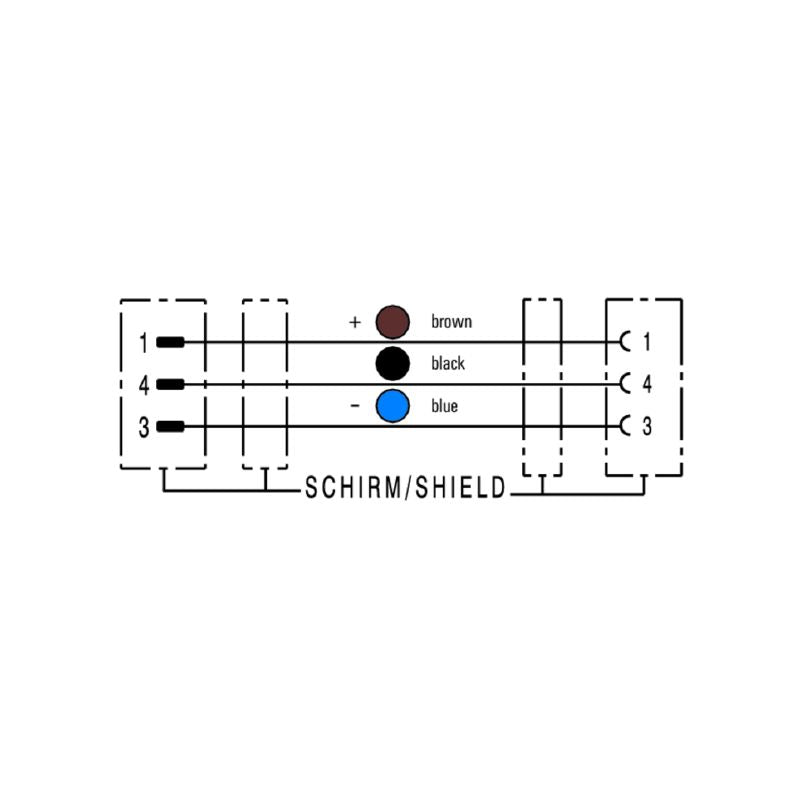

    •Available in a color-coded format of brown, blue, and black.

Specifications:

 Dimension 5 m
 Nominal current 4 A
 Nominal voltage 250 V
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Outside diameter 5 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Protection degree IP65, IP66, IP67, IP68
 Plugging cycles ≥ 100
 Weight 202 g
 Environmental Compliance Compliant with exemption 6c
