1057940000 - IP67 M12 Y Connector with Gold-Plated Contacts

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

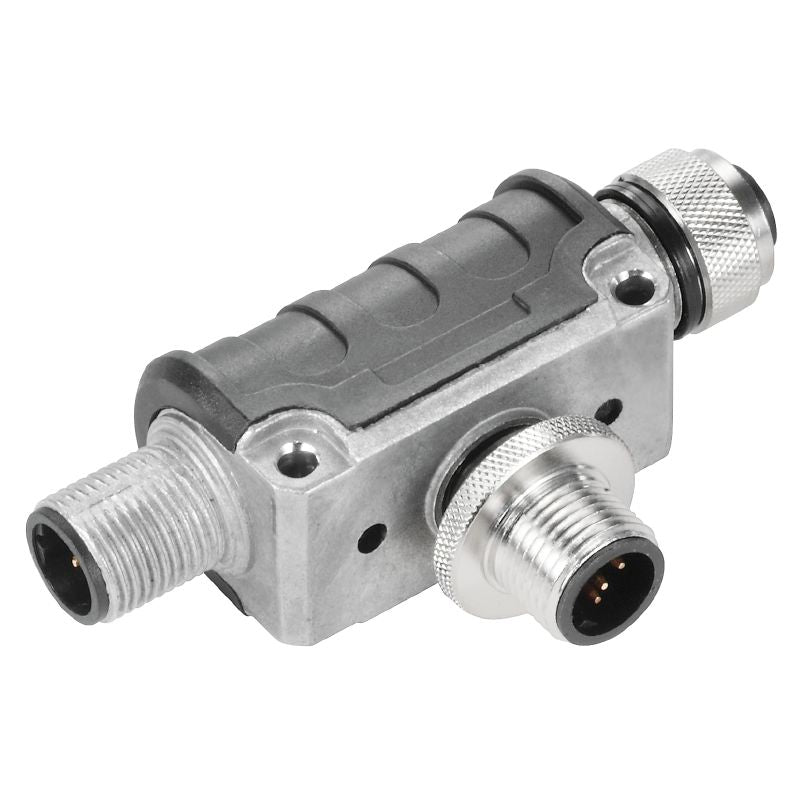

Introducing the SAI-T-5-M12/M12 B-COD, a reliable Y connector boasting an M12 configuration that adheres to RoHS compliance standards This connector features a robust gold-plated contact surface crafted from CuSn, ensuring secure connections It is equipped with two M12 pins and a single M12 socket outlet This versatile product supports a nominal current of 4A and a nominal voltage of 60V, alongside a protection rating of IP67, making it suitable for environments with pollution severity classified as level 3.

For optimal installation, the M12 connections have a maximum tightening torque specification of 08 to 12 Nm.

Features and Benefits:

•Gold-plated contact surface for enhanced conductivity.

•Compliant with RoHS regulations.

•Protection degree of IP67 for water and dust protection.

•Rated for nominal currents up to 4A and voltages up to 60V.

Specifications:
