1057840500 - 5m Halogen-Free M12 Sensor/Actuator Connecting Line, 4 Poles

1057840500 - 5m Halogen-Free M12 Sensor/Actuator Connecting Line, 4 Poles

SKU: SKU: 1057840500   Download PDF

Select a Variant:
  • 1057840500 - 5m Halogen-Free M12 Sensor/Actuator Connecting Line, 4 Poles
Qty:
Regular price Now $18.25   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $18.25 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M12GM12G-4B-50U connecting line, expertly crafted for seamless integration of sensors and actuators Measuring 5 meters in length and featuring 4 poles, this connection solution is equipped with M12 connectors on both ends for reliable performance Made with a halogen-free PUR sheath, this line prioritizes safety and compliance, being RoHS compliant and adhering to UL standards It’s an ideal choice for your technical needs without the distraction of shielding or LED indicators.

Features and Benefits:

    •Sensor/actuator connection.

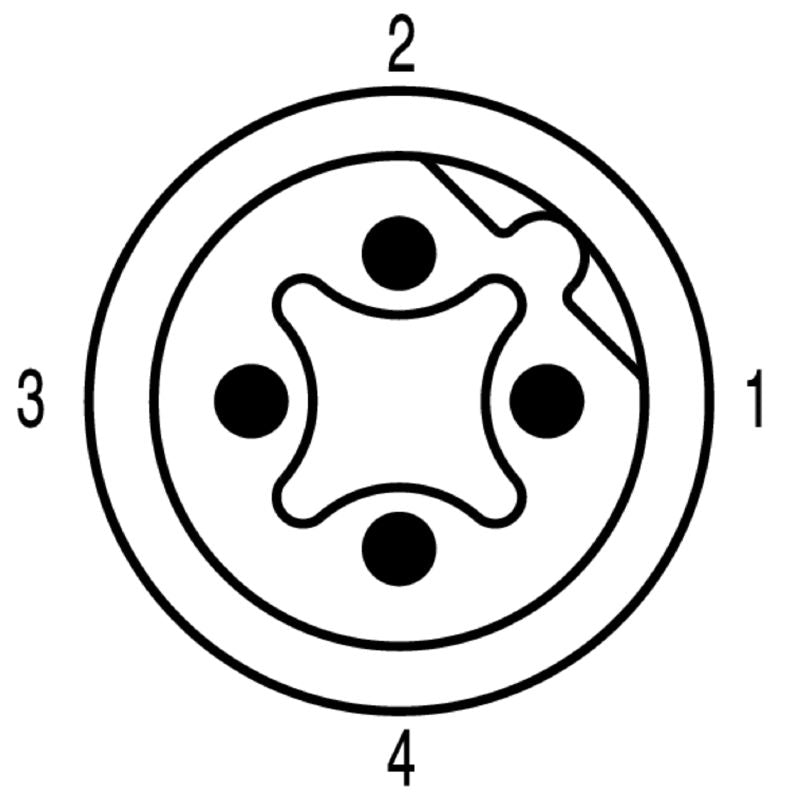

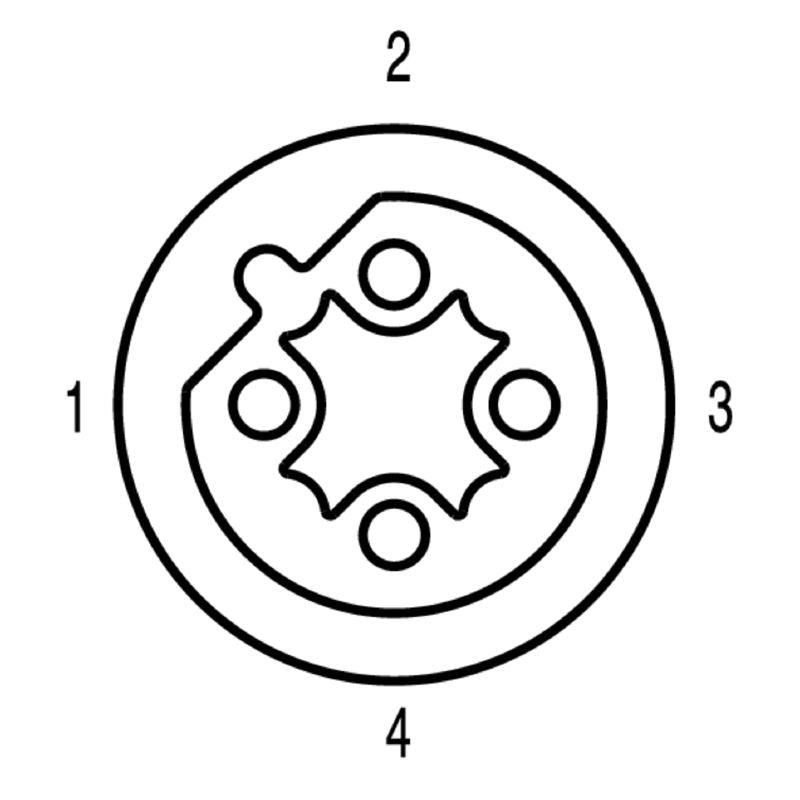

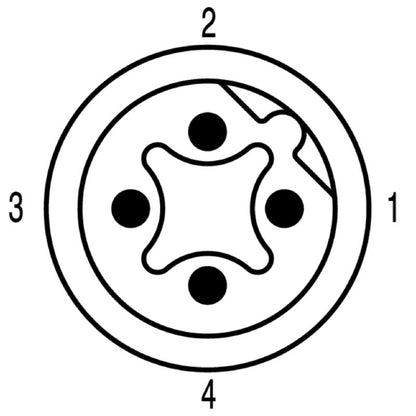

    •M12 connectors at both ends.

    •5 meters in length.

    •Compliant with RoHS.

    •Constructed of halogen-free material.

Specifications:

 Number of poles 4
 Cable length 5 m
 Core cross-section 0.34 mm²
 Outside diameter 4.7 mm ± 0.2 mm
 Nominal current 4 A
 Nominal voltage 250 V
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Protection degree IP65, IP66, IP67, IP68, IP69
 Plugging cycles ≥ 100
 Bending cycles 12 Mio
 Insulation resistance 10^8 Ω
 Speed 5 m/s
