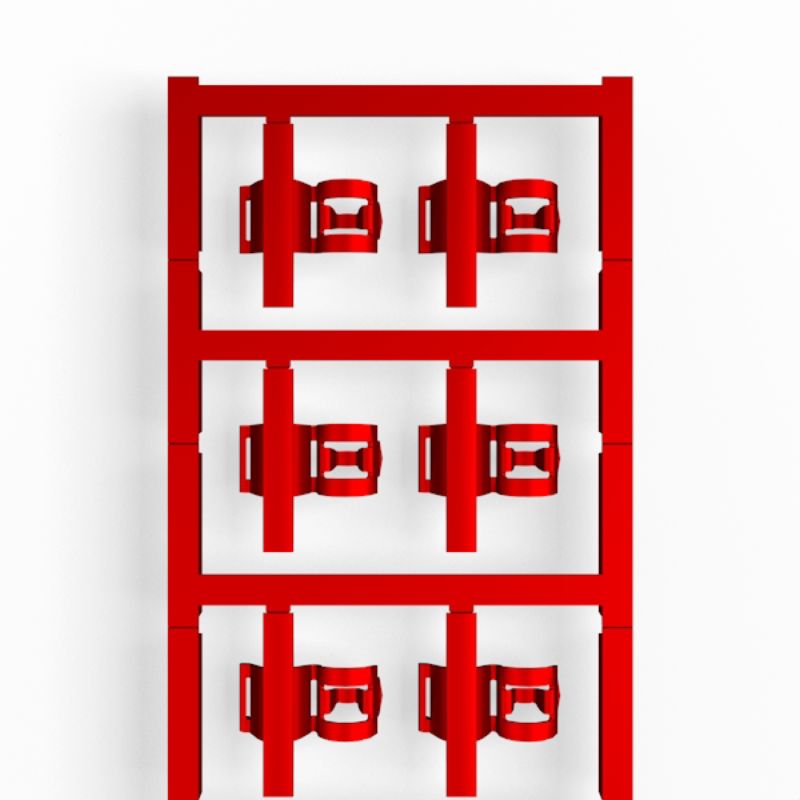

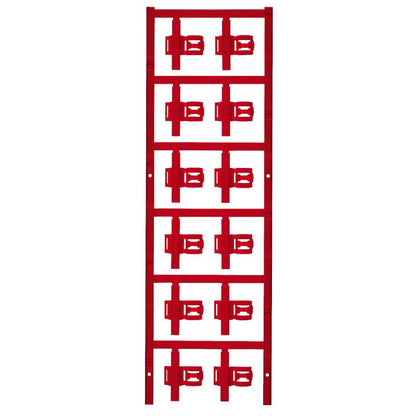

1025330000 - Red Clip for 3.5-7mm Cables, 30x12.5mm Size (Pack of 60)

1025330000 - Red Clip for 3.5-7mm Cables, 30x12.5mm Size (Pack of 60)

SKU: SKU: 1025330000 Download PDF

Variant:
  • 1025330000 - Red Clip for 3.5-7mm Cables, 30x12.5mm Size (Pack of 60)
Regular price Now $16.70
Regular price BEFORE   $0.00 Sale price Now $16.70
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SFC 3/30 MC NE RT clip, expertly crafted for marking conductors and cables with an outer diameter of 35 mm to 7 mm Measuring 30 x 125 mm, this slim-fitting clip is available in a vibrant red color It adheres to RoHS compliance standards, ensuring it is free from exemptions, and features a minimal carbon footprint of just 0009 kg CO2 equivalent Ideal for applications in the machinery sector, this product combines functionality and environmental responsibility.

Features and Benefits:

    •Temperature range operation of -40 to 100 °C.

    •Compliant with RoHS standards without exemptions.

    •MultiCard supply form ensures easy handling.

    •UL 94 flammability rating of V-2.

    •Compatible with PRINTJET CONNECT printer.

    •Used in machinery.

    •Suitable for conductor and cable marking.

Specifications:

 Depth 11.3 mm
 Height 30 mm
 Width 12.5 mm
 Conductor cross-section, max 10 mm²
 Conductor cross-section, min 4 mm²
 Conductor O.D. 3.5 - 7 mm
 Cross-section for connected wire 4 - 10 mm²
 Basic material Polyamide 66
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Size of labelling field 30 x 5 mm
 Number of markers per packaging unit 60
 Operating temperature range, max 100 °C
 Operating temperature range, min -40 °C
 Halogen No
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
