1025240000 - Slim Clips for Conductors 3.5-7mm, -40 to 100 °C (Pack of 80)

SKU: SKU: 1025240000 Download PDF

Select a Variant:

1025240000 - Slim Clips for Conductors 3.5-7mm, -40 to 100 °C (Pack of 80)

SET THE QTY:

Now $17.08 Web pricing policy

~~BEFORE $0.00~~ Now $17.08 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

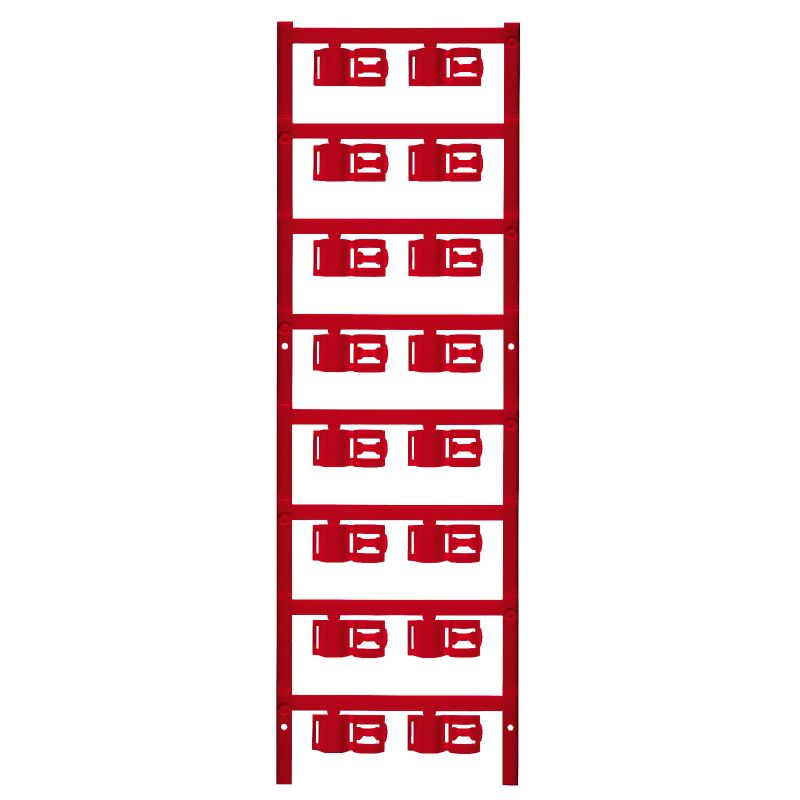

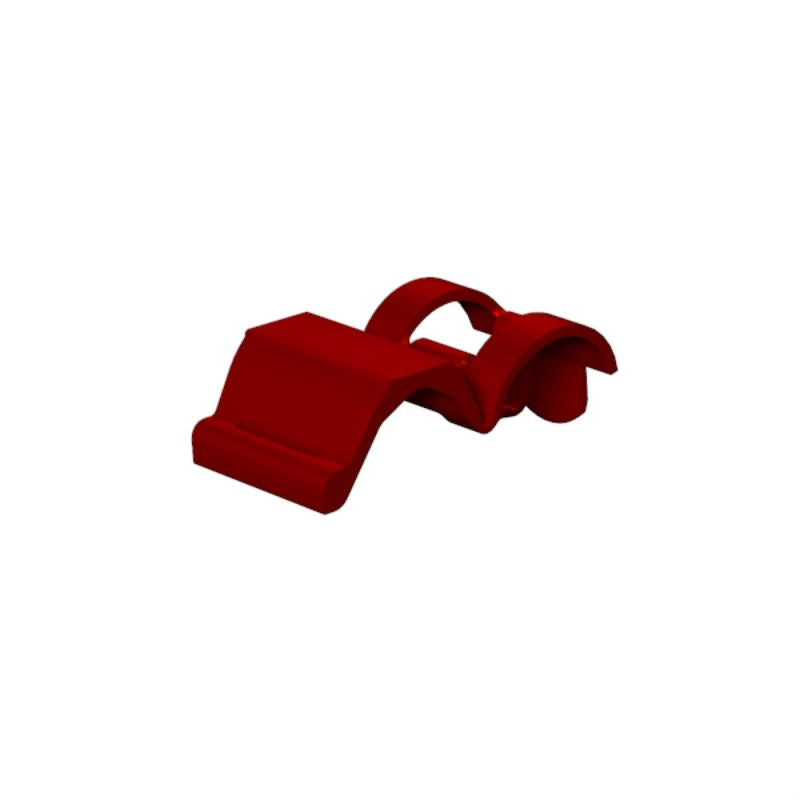

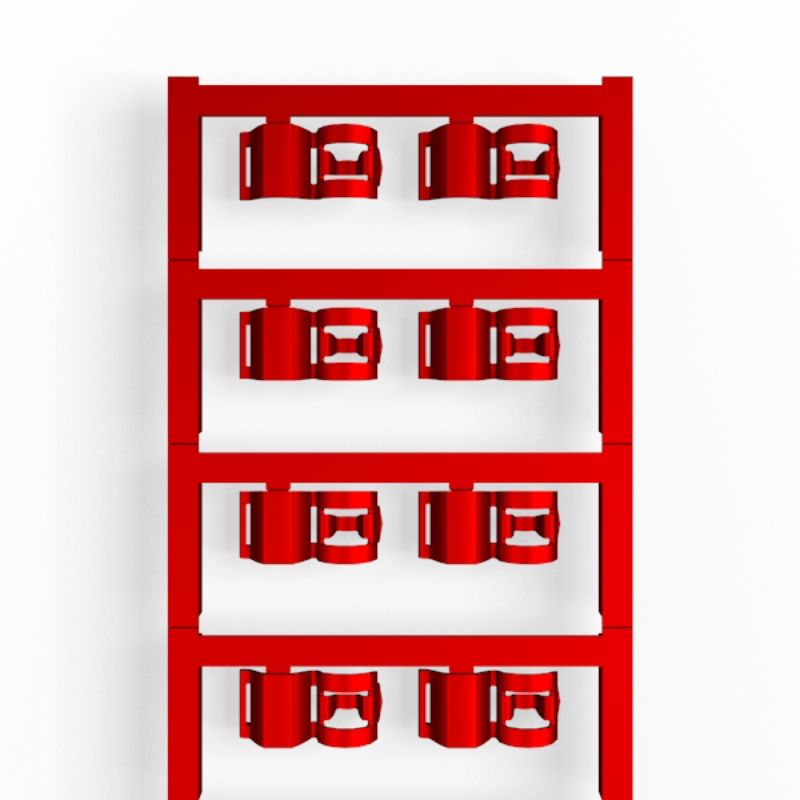

Introducing the SFC 3/12 MC NE RT, an essential tool for labeling conductors and cables This model features slim clips and is compatible with various printer types It accommodates conductor diameters ranging from 35 to 7 mm, making it versatile for different applications Built to withstand an operating temperature from -40 to 100 °C, this product is ideal for a range of environments Additionally, it meets RoHS standards and is free from any substances of very high concern above 0.

1 weight percent, ensuring safe usage.

Features and Benefits:

•Compliant with RoHS without exemptions.

•Product Carbon Footprint of 0.007 kg CO2 eq..

•Made from Polyamide 66.

•Operating temperature range from -40 to 100 °C.

•UL 94 flammability rating of V-2.

•MultiCard format for easy supply.

•Suitable for machinery.

Specifications:

Depth	11.3 mm
Height	12 mm
Width	12.5 mm
Conductor cross-section, max	10 mm²
Conductor cross-section, min	4 mm²
Conductor O.D., max	7 mm
Conductor O.D., min	3.5 mm
Size of labelling field	12 x 5 mm
Number of markers per combination	1 MultiCard = Conductor and cable markers
Number of markers per packaging unit	80
ETIM 6.0	EC001530
ECLASS 9.0	27-40-04-01
