Description:

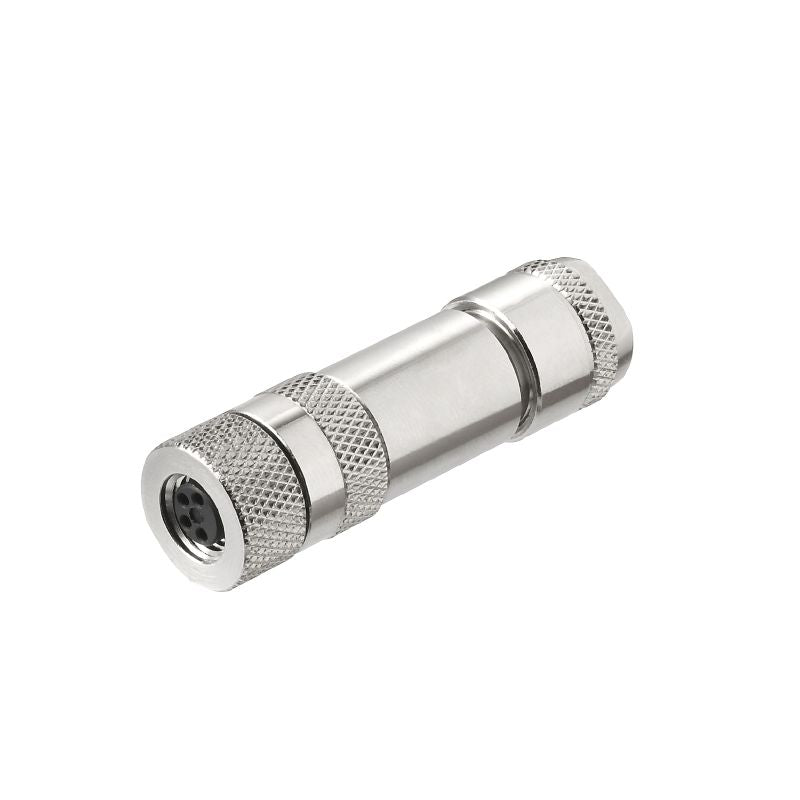

Introducing the M8 attachable connector, model SAIBGS-M-3A-35/55-M8-IF, engineered for a variety of applications This connector accommodates cable diameters ranging from 35 mm to 55 mm, making it versatile for your connection needs It supports conductor cross-sections from 014 mm² to 05 mm², ensuring compatibility with numerous electrical setups Featuring a gold-plated contact surface, it enhances conductivity for optimal performance.

This three-pole connector is rated for a nominal current of 4 A and a nominal voltage of 60 V It is built for durability with a minimum of 100 plugging cycles and boasts an impressive insulation resistance of 10^8 Ω Designed to withstand harsh conditions, it comes with an IP67 protection rating and operates effectively in temperatures ranging from -40 to +85 °C Ideal for demanding environments, this connector ensures reliability and functionality.

Features and Benefits:

•Gold-plated contact surface for improved conductivity.

•Supports a nominal current of 4 A.

•Designed for up to 100 plugging cycles.

•IP67 protection for durability in harsh environments.

•Wide operating temperature range from -40 to +85 °C.

Specifications:
