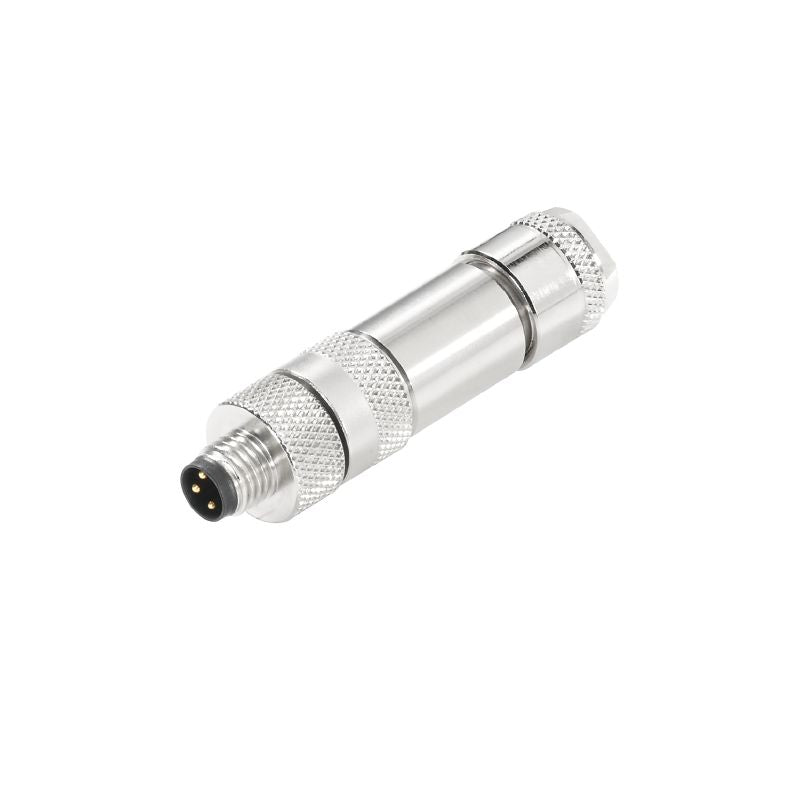

1010070000 - Customizable M8 Field Attachable Connector, RoHS Compliant

1010070000 - Customizable M8 Field Attachable Connector, RoHS Compliant

SKU: SKU: 1010070000 Download PDF

Variant:
  • 1010070000 - Customizable M8 Field Attachable Connector, RoHS Compliant
Regular price Now $16.37
Regular price BEFORE   $0.00 Sale price Now $16.37
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M8 field attachable connector, with the order number 1010070000, engineered for versatile plug-in configurations This connector meets RoHS standards and bears a UL Certificate number E307231, ensuring its reliability It is an excellent choice for a wide range of electrical applications, making it an essential component for your projects.

Features and Benefits:

    •RoHS compliant.

    •Gold-plated contact surface.

    •Support for screw connection.

    •Rated for a maximum current of 4 A.

    •Housing material made of CuZn.

    •Protection degree of IP67.

    •Threaded ring made of diecast zinc.

    •Shield connection available.

Specifications:

 Cable diameter, max. 5.5 mm
 Cable diameter, min. 3.5 mm
 Conductor cross-section, max. 0.5 mm²
 Conductor cross-section, min. 0.14 mm²
 Insulation resistance 10^8 Ω
 Nominal voltage 60 V
 Number of poles 4
 Plugging cycles ≥ 100
 Pollution severity 3
 Temperature range of housing -40 … +85 ° C
