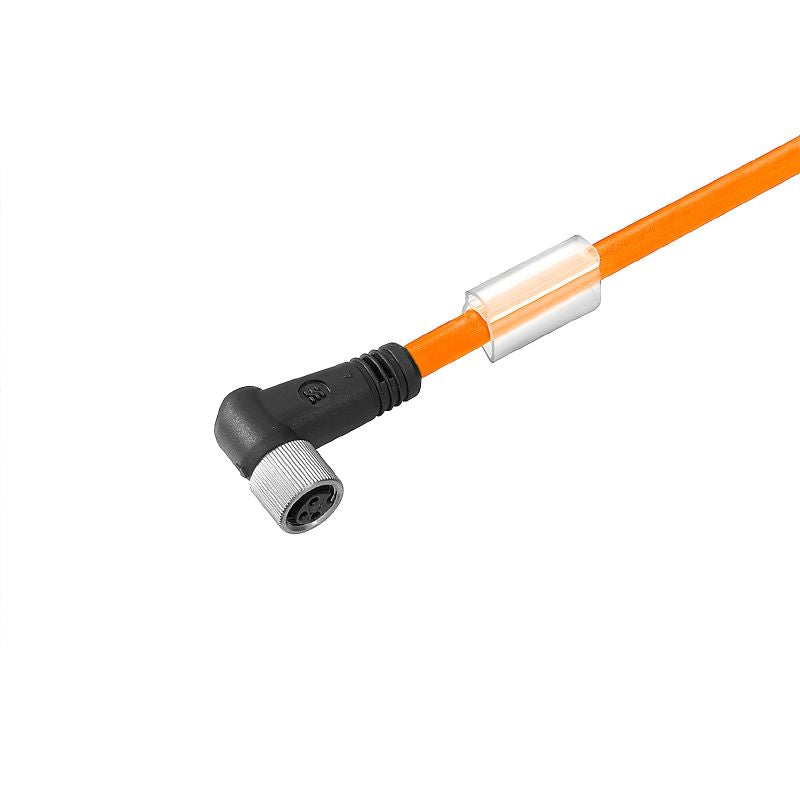

2812940800 - 8m M8 Sensor/Actuator Line, 3 Poles, PUR Material

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this M8 sensor/actuator cable line, featuring three poles and measuring a generous 8 meters in length Designed with an angled socket, this cable does not include shielding or an LED indicator Constructed from halogen-free PUR material, it adheres to RoHS standards for safety and environmental compliance This robust cable is engineered to endure up to 12 million bending cycles.

It requires a minimum bending radius of 10 times its diameter while in motion and 5 times when stationary The core is color-coded in brown, blue, and black, with a cross-section of 034 mm² Designed for versatility, the cable's outer diameter measures 45 mm ± 02 mm and is resistant to welding beads, making it suitable for various applications Its vibrant orange sheath is perfect for use with cable carriers.

Operating efficiently within a temperature range of -25 to 80 °C when moving, and -40 to 80 °C when stationary, this cable also allows for torsional movement of up to 360° per meter and is spark resistant to welding.

Features and Benefits:

•Compliant with RoHS exemptions.

•LABS-free.

•Number of poles: 3.

•Socket, angled design.

•IP65/IP66/IP67/IP68 protection degrees when screwed in.

•Nominal current rating of 4 A.

•Nominal voltage rating of 24 V.

•Temperature range of housing: -25 to +85 °C.

Specifications:
