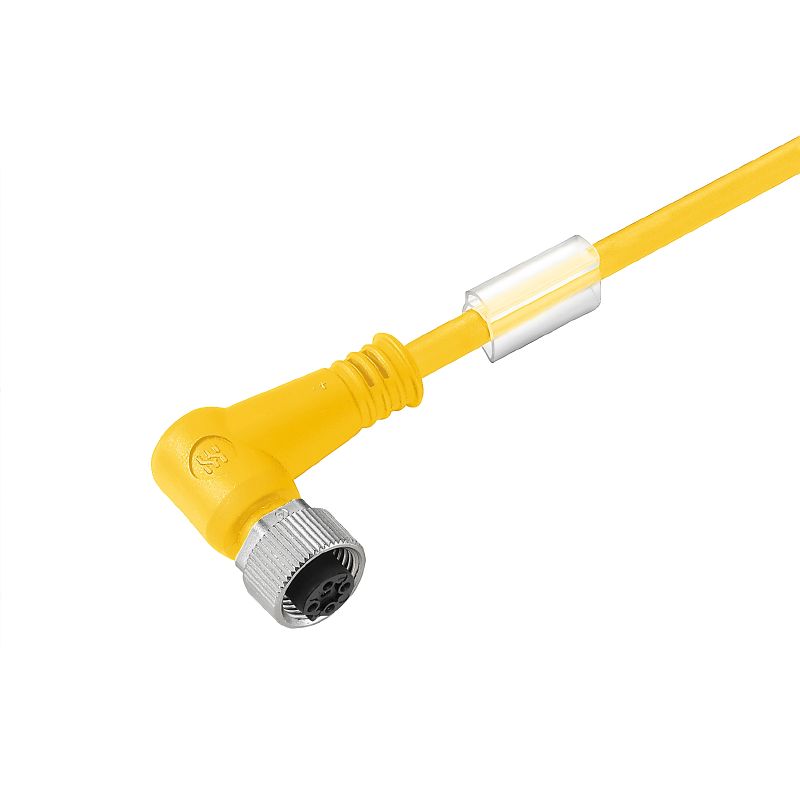

2812781000 - M12 5-Pole Angled Connector, 10m PUR Cable

2812781000 - M12 5-Pole Angled Connector, 10m PUR Cable

SKU: SKU: 2812781000 Download PDF

Variant:
  • 2812781000 - M12 5-Pole Angled Connector, 10m PUR Cable
Regular price Now $22.36
Regular price BEFORE   $0.00 Sale price Now $22.36
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this robust 10-meter cable, ideal for sensor and actuator linkages Featuring a 5-pole M12 angled socket design, this cable ensures reliable connections Made from halogen-free PUR material, it adheres to RoHS regulations, guaranteeing safety and environmental compliance Please note, this cable does not have shielding or an LED indicator, focusing instead on optimal function and performance.

Features and Benefits:

    •Non-shielded design.

    •Angled socket type.

    •Compliant with RoHS exemptions.

    •Bending cycles rated for 10 million.

    •Resistant to welding beads.

Specifications:

 Cable length 10 m
 Core cross-section 0.34 mm²
 Outside diameter 5.2 mm ± 0.2 mm
 Temperature range, moving -40...105 °C
 Temperature range, stationary -30...105 °C
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68 when screwed in
 Resistance to oils in accordance with IEC 60811:404
 Sheath material PUR
 Sheathing colour yellow
