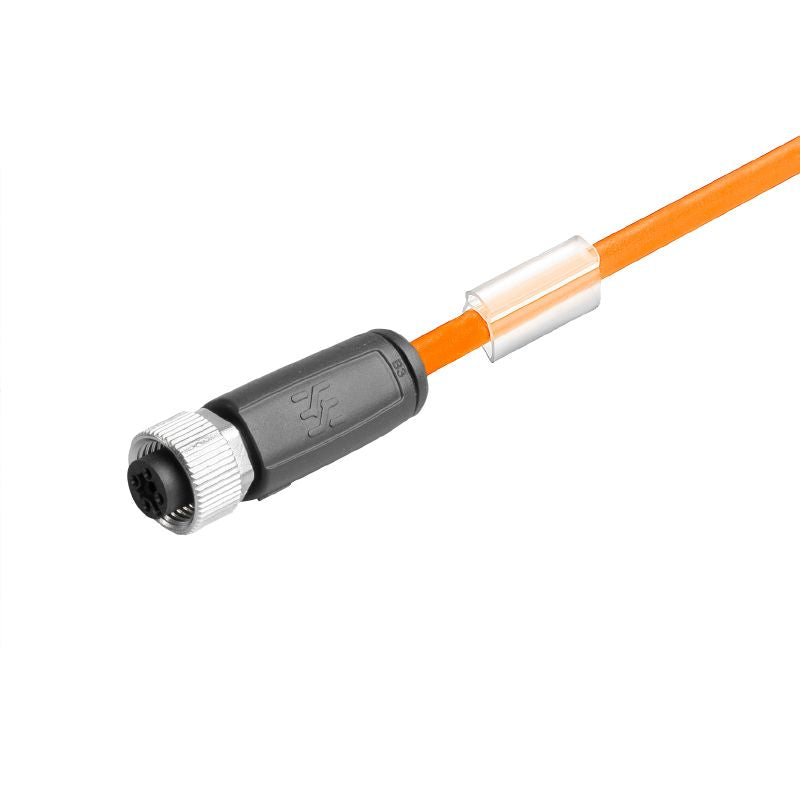

2812640250 - 2.5m M12 5-Pole Unshielded Sensor/Actuator Connector

2812640250 - 2.5m M12 5-Pole Unshielded Sensor/Actuator Connector

SKU: SKU: 2812640250   Download PDF

Select a Variant:
  • 2812640250 - 2.5m M12 5-Pole Unshielded Sensor/Actuator Connector
Qty:
Regular price Now $10.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

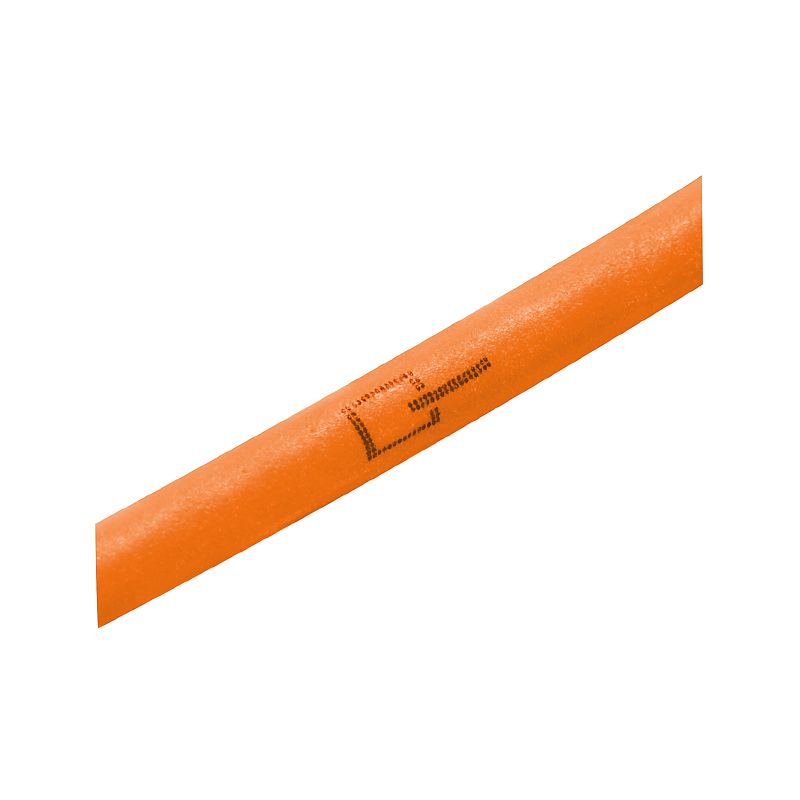

Introducing our advanced sensor/actuator cable designed for reliability and performance This 25-meter cable features an M12 connection with five poles and includes a straight, unshielded female socket Engineered with a PUR sheath, it meets RoHS standards and is free from halogens, ensuring a safe and eco-friendly choice for your applications.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •Suitable for cable carriers.

    •LABS-free product.

    •Resistant to welding sparks.

    •Bending cycles rated at 10 million.

Specifications:

 Bending radius, min., moving 7.5 x cable diameter
 Bending radius, min., stationary 4 x cable diameter
 Cable length 2.5 m

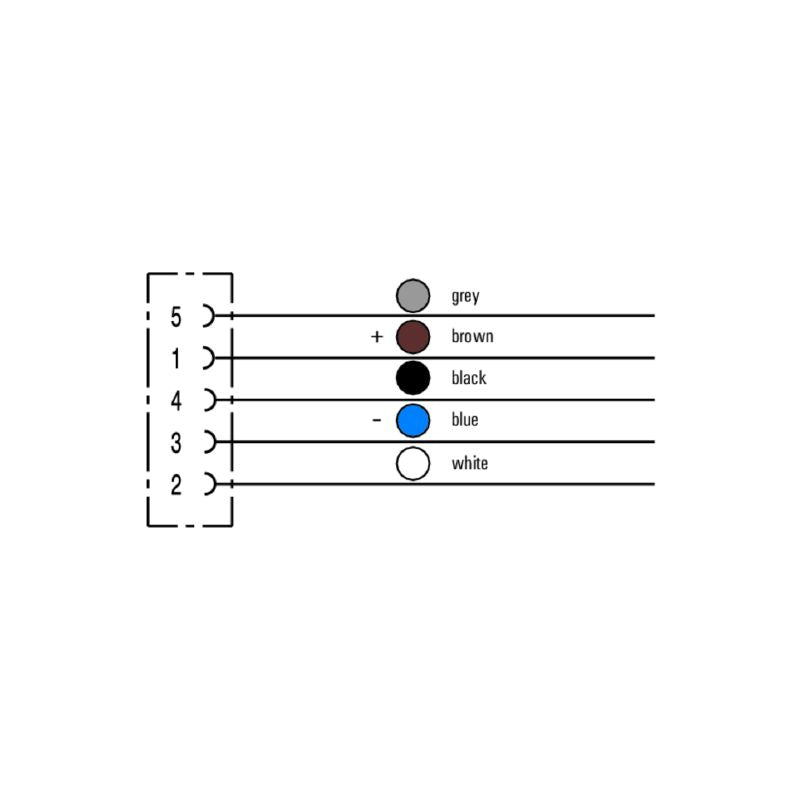

 Colour coding brown, black, blue, white, grey
 Core cross-section 0.34 mm²
 Number of poles 5
 Outside diameter 5.2 mm ± 0.2 mm
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Torsion resistance 360 °/m
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP65, IP66, IP67, IP68
 Temperature range of housing -25…+85 °C
