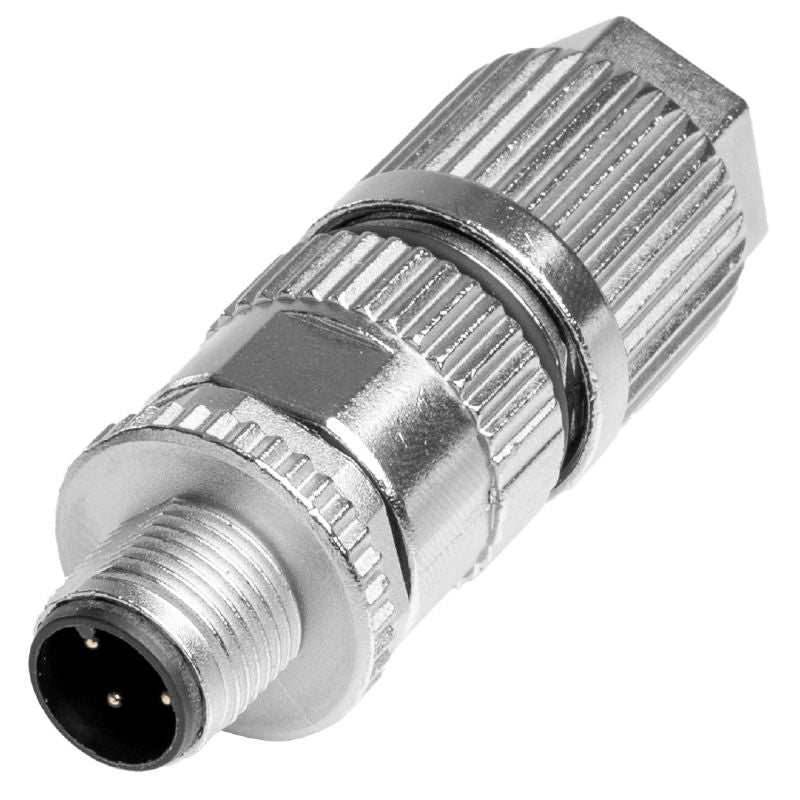

1962420000 - M12 Connector for 4.5-8.8mm Cables, CuZn Material

1962420000 - M12 Connector for 4.5-8.8mm Cables, CuZn Material

SKU: SKU: 1962420000   Download PDF

Select a Variant:
  • 1962420000 - M12 Connector for 4.5-8.8mm Cables, CuZn Material
Qty:
Regular price Now $21.05   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $21.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the versatile M12 field attachable connector, crafted to accommodate cable diameters between 45 mm and 88 mm Featuring A-coding, this connector boasts a tinned contact surface for enhanced conductivity Made from durable CuZn material, it secures connections through insulation displacement, ensuring dependable performance in various applications.

Features and Benefits:

    •Nominal current rating of 4 A.

    •Nominal voltage rating of 32 V.

    •IP67 protection degree, ensuring dust and water resistance.

    •Can withstand at least 50 plugging cycles.

    •Included shield connection for enhanced performance.

    •Insulation resistance measuring 10^8 Ω.

    •Technically compliant with RoHS and REACH standards.

Specifications:

 Cable diameter, max. 8.8 mm
 Cable diameter, min. 4.5 mm
 Conductor cross-section, max. 0.34 mm²
 Conductor cross-section, min. 0.14 mm²
 Gender of contact Male
 Housing main material CuZn
 Threaded ring material Diecast zinc
 Temperature range of housing -25…+85 °C
 Pollution severity 3
 Connector standard IEC 61076-2-101
 SCIP ebf89fc8-a87f-4691-b87a-dfb9921774b4
 RoHS Compliance Status Compliant with exemption
 RoHS Exemption 6c
