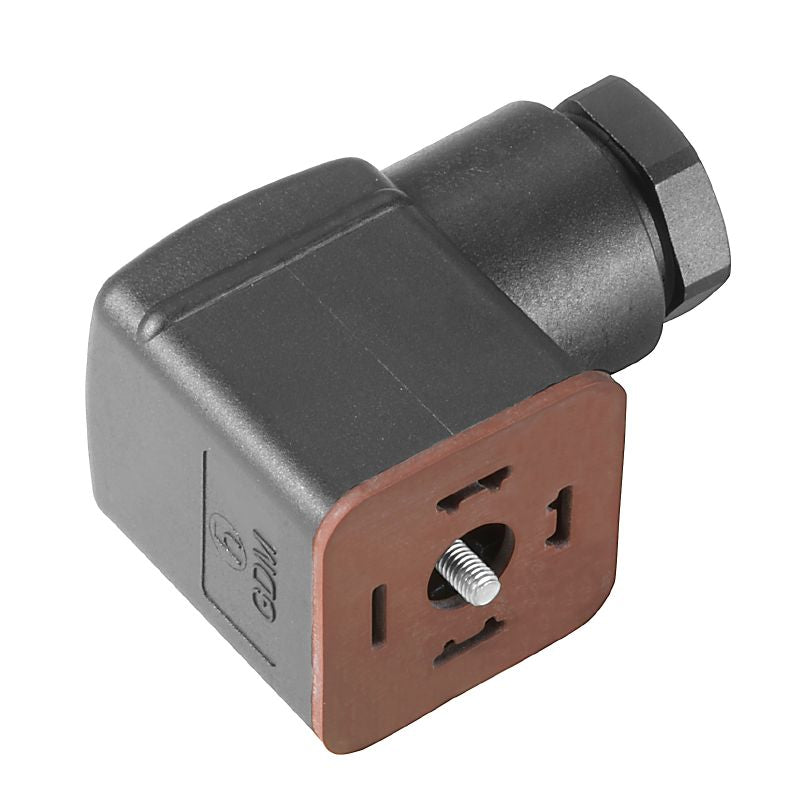

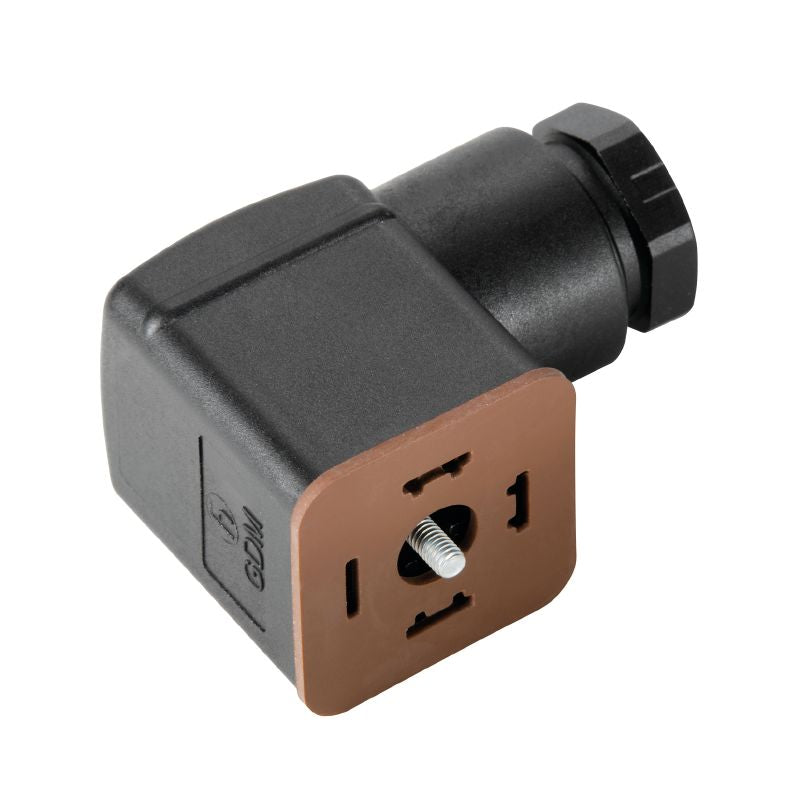

1873150000 - 230V IP65/IP67 Plug-In Valve Connector, 3 Poles, Field Assembly

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

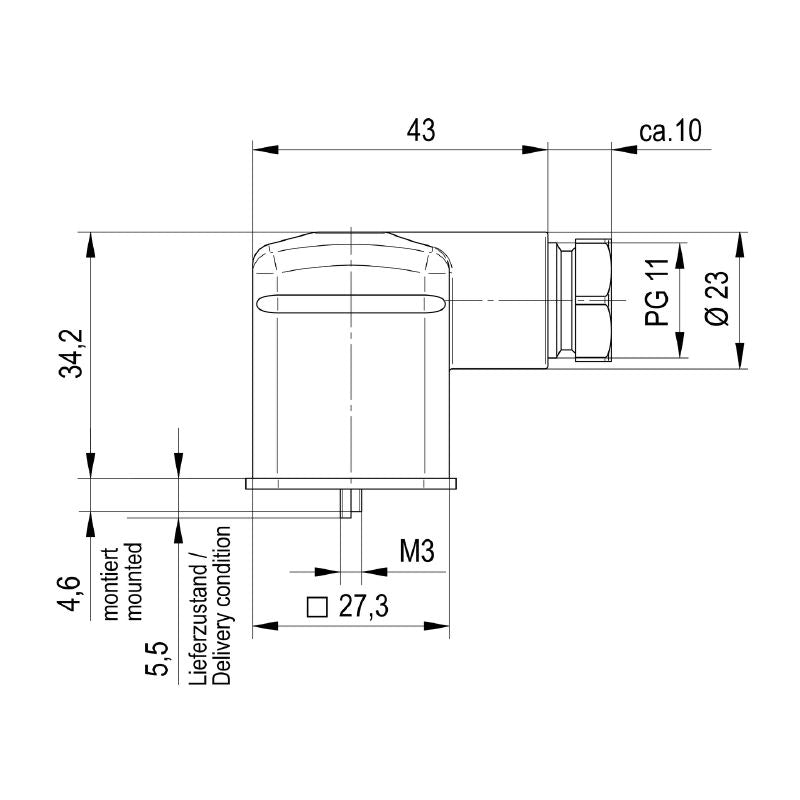

Ensure seamless connections with our valve plug-in connector, expertly crafted for field assembly This unit features three poles without circuitry and is rated for an operating voltage of 230 V It accommodates conductor cross-sections ranging from 034 mm² to 15 mm, while its dimensions vary from a minimum diameter of 6 mm to a maximum of 9 mm With full compliance to RoHS regulations—without exemptions—and no REACH SVHC content exceeding 0.

1 wt%, this connector is a reliable choice It boasts a robust design capable of withstanding up to 50 plugging cycles and provides IP65 and IP67 protection when properly secured, ensuring durability in challenging environments.

Features and Benefits:

•Equipped with protective circuits without circuitry.

•Designed for compatibility with cables having a diameter of 6 mm to 9 mm.

•Allows a conductor cross-section compatible up to 1.5 mm².

•Operates at a nominal voltage of 230 V and a nominal current of 10 A.

•Screw connection type for secure connectivity.

•Temperature range of housing is from -30 to +90 °C.

•Compliant with RoHS and free from REACH SVHC.

•Offers high protection degree of IP65/IP67 when installed.

Specifications:
