1865871000 - 10m M12 Sensor Line, 8 Poles, PUR Material

1865871000 - 10m M12 Sensor Line, 8 Poles, PUR Material

SKU: SKU: 1865871000

Variant:
  • 1865871000 - 10m M12 Sensor Line, 8 Poles, PUR Material
Regular price Now $34.63
Regular price BEFORE   $0.00 Sale price Now $34.63
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

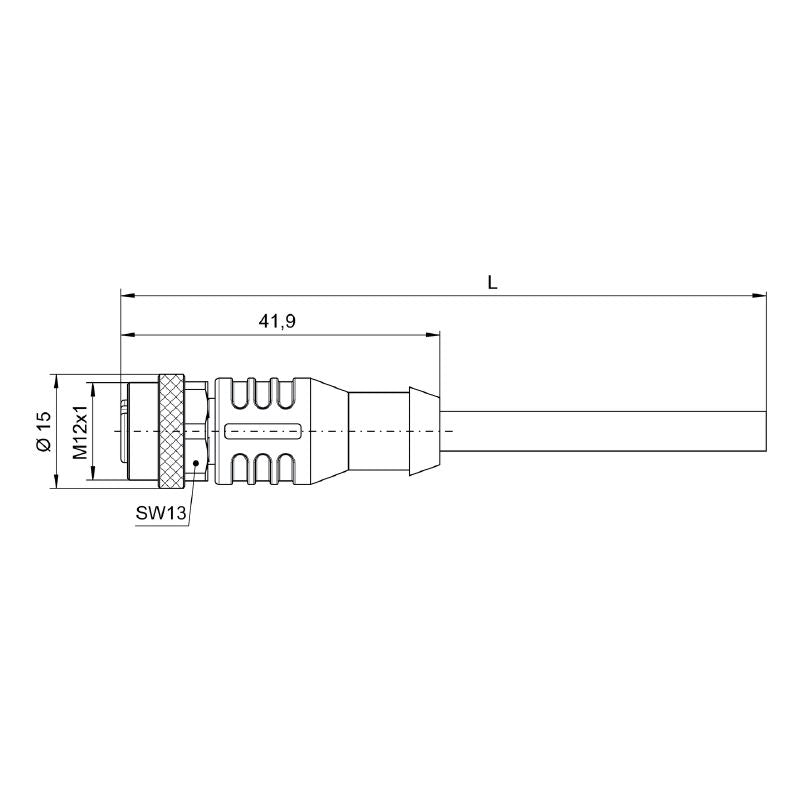

Introducing a durable component from our sensor and actuator range, this product is equipped with an 8-pole M12 connector on one end, while the other end is designed without a connector for versatile integration Measuring 10 meters in length, it features a straight, unshielded female socket crafted from high-quality PUR material This product complies with ROHS regulations and boasts a UL certification, ensuring reliability and safety in various applications.

Features and Benefits:

    •Net weight of 428 g.

    •Conformity with ROHS and exemption status.

    •Suitable for cable carriers.

    •IP67 protection degree.

Specifications:

 Cable length 10 m
 Number of poles 8
 Outside diameter 5.9 mm ± 0.2 mm
 Core cross-section 0.25 mm²
 Temperature range, moving -25 to 80 °C
 Temperature range, stationary -40 to 80 °C
 Nominal current 2 A
 Nominal voltage 30 V
 Plugging cycles ≥ 100
 Bending cycles 1 million
 Acceleration 5 m/s²
 Speed 5 m/s
 Insulation resistance 10^8 Ω
 Protection degree IP67, IP66, IP65
 Threaded ring material Brass, nickel-plated
 Sheath material PUR
