1865870150 - M12 8-Pole Sensor/Actuator Line, 1.5m PUR Sheath

1865870150 - M12 8-Pole Sensor/Actuator Line, 1.5m PUR Sheath

SKU: SKU: 1865870150

Select a Variant:
  • 1865870150 - M12 8-Pole Sensor/Actuator Line, 1.5m PUR Sheath
Qty:
Regular price Now $17.88   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $17.88 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

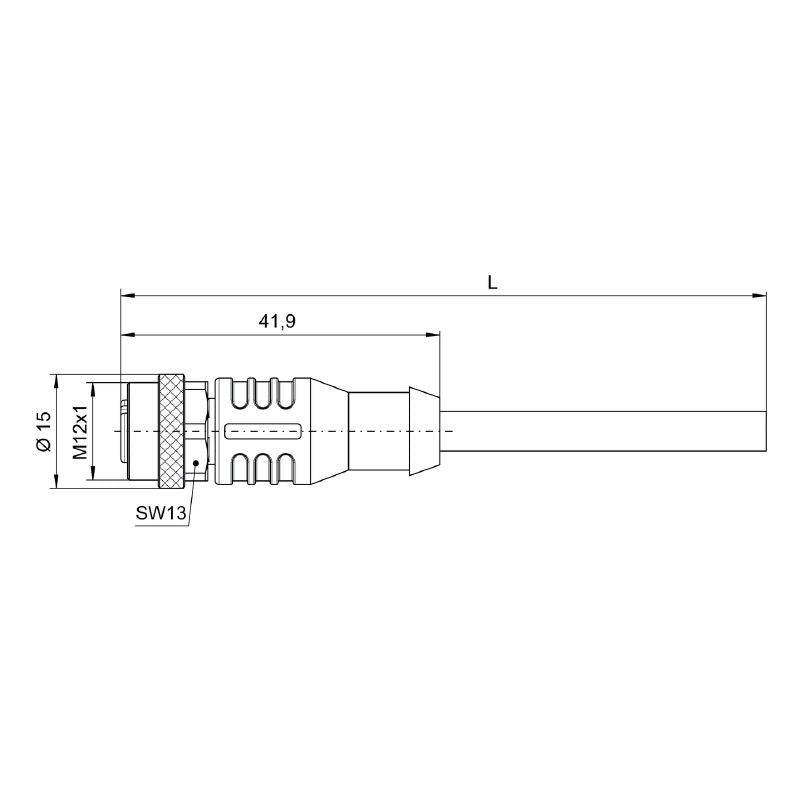

Presenting a versatile sensor and actuator cable designed for optimal performance This 15-meter line features an M12 connector with 8 poles, ensuring reliable connectivity for your devices The straight female socket is straightforward in design and does not include shielding or an LED indicator Constructed from durable PUR sheath material, this product meets RoHS standards and is free from halogens, making it a responsible choice for environmentally-conscious users.

Features and Benefits:

    •Straight female socket without connector.

    •High flexibility with a bending radius.

    •Resistance to flame spread as per IEC standards.

    •Over 100 plugging cycles.

    •Suitable for cable carriers.

Specifications:

 Cable Length 1.5 m
 Number of Poles 8
 Outer Diameter 5.9 mm ± 0.2 mm
 Core Cross-Section 0.25 mm²
 Nominal Current 2 A
 Nominal Voltage 30 V
 Insulation Resistance 10^8 Ω
 Temperature Range (Moving) -25...80 °C
 Temperature Range (Stationary) -40...80 °C
 Protection Degree IP65/IP66/IP67 when screwed in
 Housing Material PUR

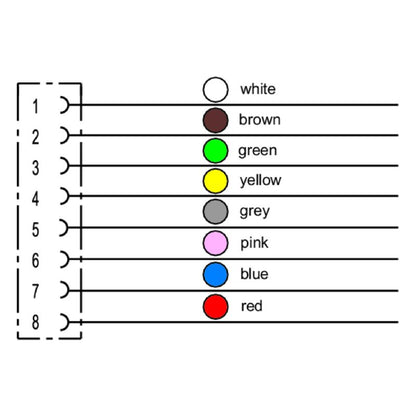

 Color Coding blue, red, white, brown, green, yellow, grey, pink
