1865870060 - 0.6m PUR Sensor/Actuator Cable, 8-Pole Female Socket

1865870060 - 0.6m PUR Sensor/Actuator Cable, 8-Pole Female Socket

SKU: SKU: 1865870060

Select a Variant:
  • 1865870060 - 0.6m PUR Sensor/Actuator Cable, 8-Pole Female Socket
Qty:
Regular price Now $16.10   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $16.10 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Experience reliable connectivity with this 06 m sensor/actuator cable Featuring a female socket with 8 poles and a straightforward design, it is perfect for various applications Crafted from durable PUR material, this cable is compliant with RoHS regulations, ensuring safety and environmental responsibility Please note, it does not include a connector on one end, nor does it support shielding or LED indicators.

Ideal for your electronic projects where simplicity and functionality are key.

Features and Benefits:

    •Compliant with RoHS standards.

    •Halogen-free sheath material.

    •Configured for operating speeds up to 5 m/s.

    •Suitable for cable carriers.

    •A-coded connection thread.

Specifications:

 Cable length 0.6 m

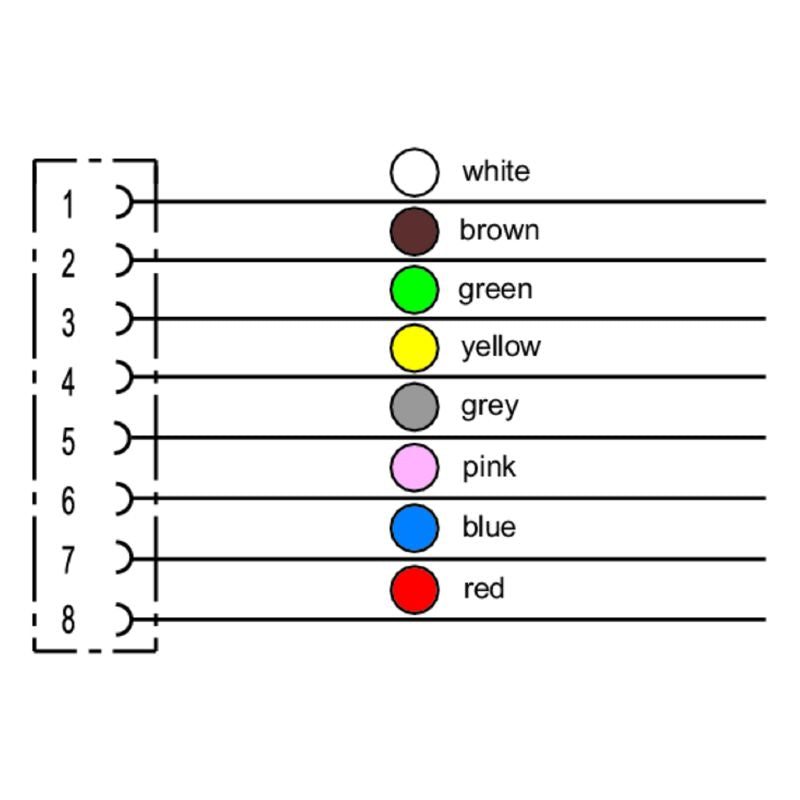

 Number of poles 8
 Outer diameter 5.9 mm ± 0.2 mm
 Core cross-section 0.25 mm²
 Nominal current 2 A
 Nominal voltage 30 V
 Protection degree IP67, IP66, IP65
 Temperature range, moving -25...80 °C
 Temperature range, stationary -40...80 °C
 Insulation resistance 10^8 Ω
 Contact material CuZn35PB2
 Contact surface Gold-plated
 Sheath material PUR
 Bending cycles 1 million
