1864740000 - IP67 M12 Connector, 4A, 8.8mm Max Cable, RoHS Compliant

Description:

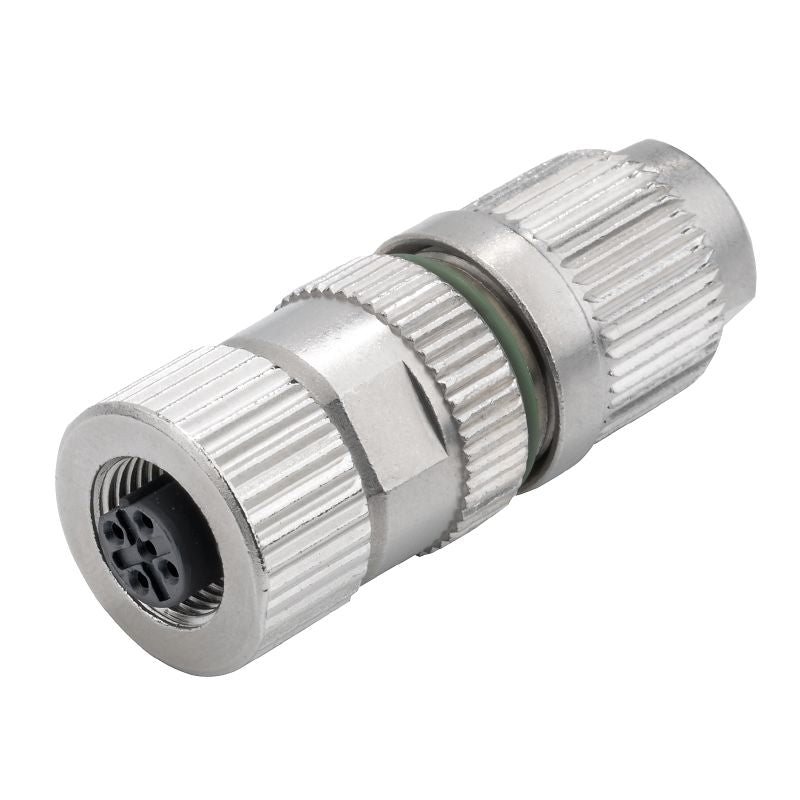

Introducing the M12 field attachable connector, model SAIBGI-M-2B-45/88-M12, crafted in accordance with RoHS standards This versatile connector allows for a customizable pin configuration for Pin 2 and Pin 4, accommodating cables with a diameter ranging from 45 mm to 88 mm Featuring B-coded compatibility, it supports a conductor cross-section between 025 mm² and 034 mm² Engineered for reliability, this connector boasts tinned contacts and can handle a maximum current of 4 A at a nominal voltage of 32 V.

With a robust IP67 rating, it is perfectly suited for demanding environments and can withstand at least 50 insertion and removal cycles Operating efficiently within a temperature spectrum of -25 °C to 85 °C, the housing is constructed from CuZn material, and benefits from an insulation displacement connection for straightforward installation.

Features and Benefits:

•RoHS compliant with exemption 6c.

•Available with a tinned contact surface.

•Protection degree of IP67 for high durability.

•Compatible with various applications due to customizable connectors.

Specifications:
