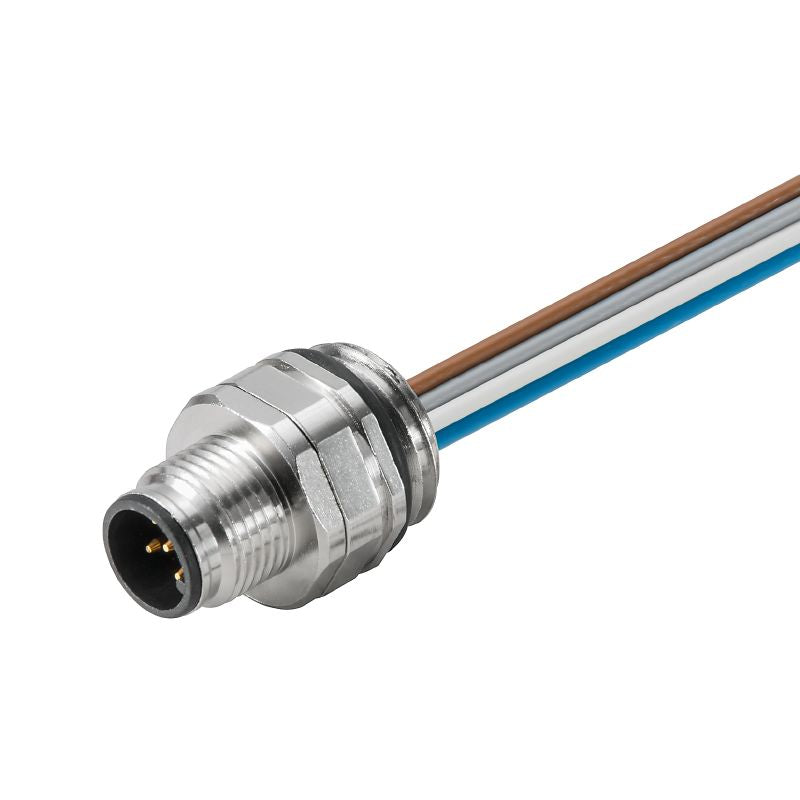

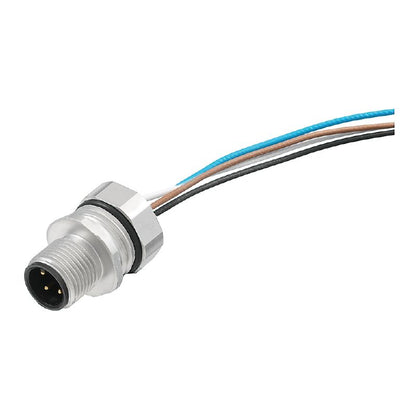

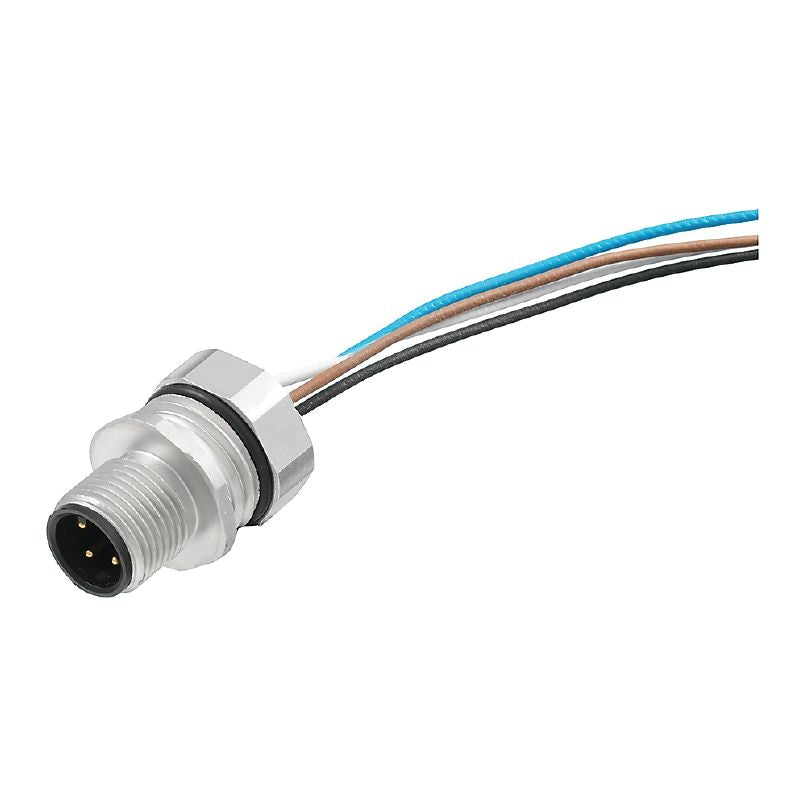

1861160000 - 0.5m M12 Connector with M16 Mounting Thread, Straight Design

1861160000 - 0.5m M12 Connector with M16 Mounting Thread, Straight Design

SKU: SKU: 1861160000   Download PDF

Select a Variant:
  • 1861160000 - 0.5m M12 Connector with M16 Mounting Thread, Straight Design
Qty:
Regular price Now $10.59   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.59 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Discover the versatility of this product equipped with integrated M12 connectors in a straight format It comes with an M16 x 15 mounting thread and features four poles for optimal performance The 05-meter cable is specifically crafted for front mounting setups, making it an excellent choice for various applications.

Features and Benefits:

    •M12 connector type.

    •Four-pole configuration.

    •IP67 protection rating when securely connected.

    •Gold-plated contact surfaces.

    •Brass housing with nickel plating.

    •Temperature range from -30 to +90 °C.

    •Compliant with RoHS standards.

Specifications:

 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Plugging cycles ≥ 100
 Standard IEC 61076-2-101
 Protection degree IP67
 Strand / cable length 0.5 m
 Connection 1 M12
 Connection 2 Flying wires
 Mounting thread M 16 x 1.5
 Rated current 4 A (4- and 5-pole)/ 2 A (8-pole)/ 1.5 A (12-pole)
 Rated voltage 250 V (4-pole)/ 60 V (5-pole)/ 30 V (8 and 12-pole)
 Basic material PVC
