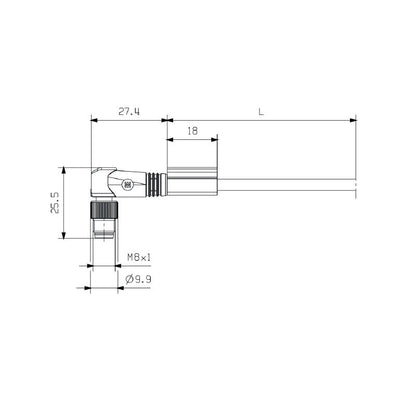

1857670034 - 0.3m PUR M8 Connector Cable with 3 Poles

1857670034 - 0.3m PUR M8 Connector Cable with 3 Poles

SKU: SKU: 1857670034   Download PDF

Select a Variant:
  • 1857670034 - 0.3m PUR M8 Connector Cable with 3 Poles
Qty:
Regular price Now $10.07   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $10.07 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing the SAIL-M8WM8W-3-034U, a reliable component from our sensor and actuator range featuring M8 connectors This cable, measuring 03 meters in length, is equipped with 3 poles for versatile applications It boasts a PUR sheath for durability, is compliant with RoHS standards, and comes without any shielding or LED components Additionally, it carries the UL file number E307231, ensuring quality and safety in its construction.

Perfect for a variety of industrial uses, this cable combines functionality with adherence to regulatory standards.

Features and Benefits:

    •Compliant with RoHS Exemption.

    •Halogen-free construction.

    •Hydrolysis and microbe resistant.

    •Resistance to oils.

    •Temperature ranges suitable for both moving and stationary applications.

Specifications:

 Cable length 0.3 m
 Diameter 3.6 mm
 Number of poles 3
 Core cross-section 0.25 mm²
 Nominal current 4 A
 Nominal voltage 60 V
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Insulation PP
 Sheath material PUR
 Plugging cycles ≥ 100
 Protection degree IP65, IP66, IP67, IP68, IP69
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Weight 18.16 g
