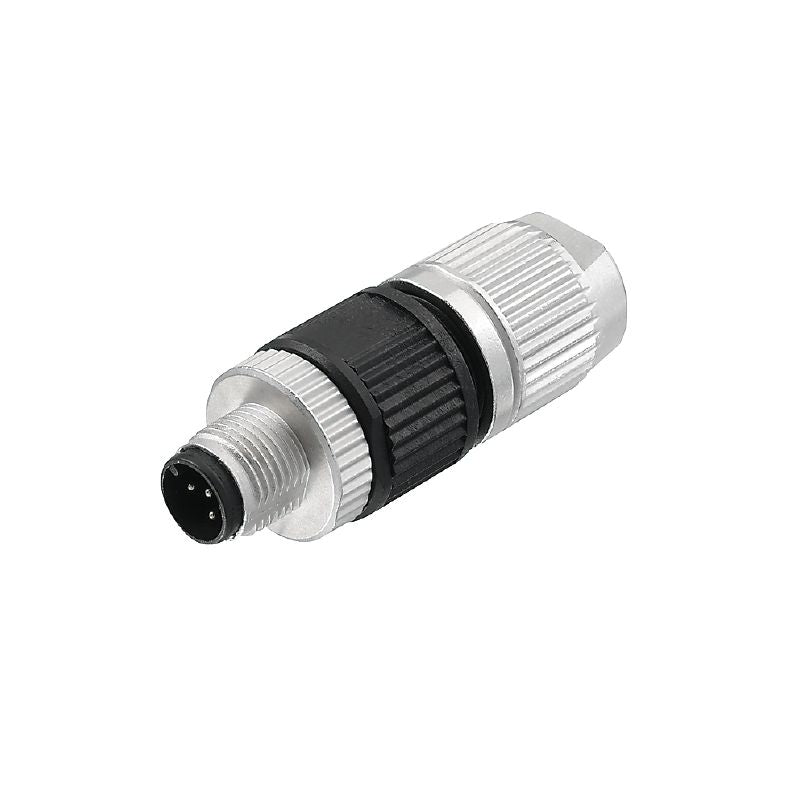

1852740000 - IP67 Field Attachable Connector with 5.5-8mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAISGI-P-4A-55/8-M12, a versatile field attachable connector that adheres to RoHS standards This connector accommodates cable diameters between 55 mm and 8 mm and is equipped with male gender contacts It supports conductors ranging from 034 mm² to 075 mm² in cross-section Featuring tinned contact surfaces, it can handle a maximum nominal current of 4 A at 50 V Designed for durability, this connector is rated for at least 50 insertion cycles and operates effectively in temperatures from -25 to +85 °C.

With a robust CuZn housing and an IP67 protection rating, it ensures reliable operation even in challenging conditions.

Features and Benefits:

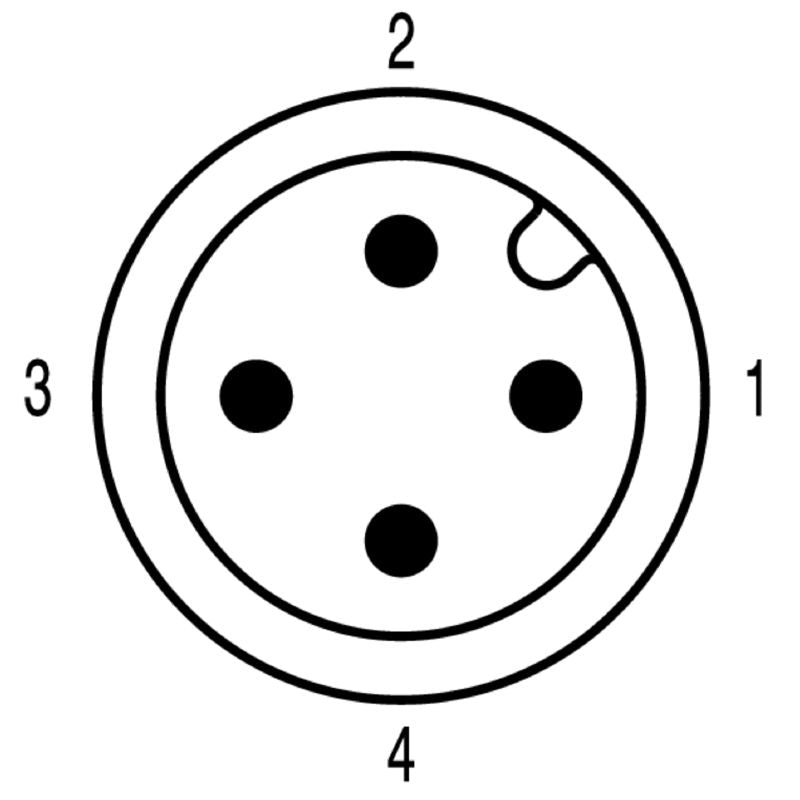

•M12 connection type.

•Insulation displacement connection.

•Rated for pollution severity of 3.

•Plugging cycles rated at ≥ 50.

•Compliant with IEC 61076-2-101 standard.

Specifications:
