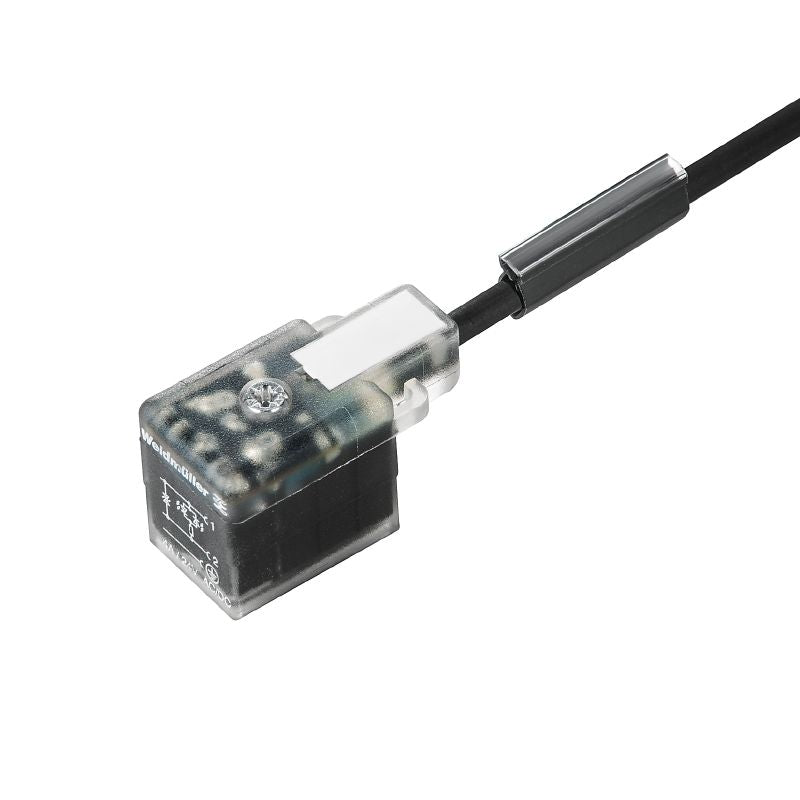

1845160500 - 5m PUR Valve Cable for DIN B Connectors

1845160500 - 5m PUR Valve Cable for DIN B Connectors

SKU: SKU: 1845160500   Download PDF

Select a Variant:
  • 1845160500 - 5m PUR Valve Cable for DIN B Connectors
Qty:
Regular price Now $13.29   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $13.29 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

Introducing a versatile valve cable, meticulously assembled for your needs This 5-meter long cable features a termination at one end that is designed for a DIN plug type B (10 mm), ensuring a seamless connection Crafted from durable PUR material, it comes in a classic black color Weighing in at just 175 grams, this cable is both lightweight and robust, making it an efficient choice for various applications.

Plus, it adheres to RoHS standards for added peace of mind.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Does not contain any SVHC above 0.1 wt%.

    •Suitable for cable carriers.

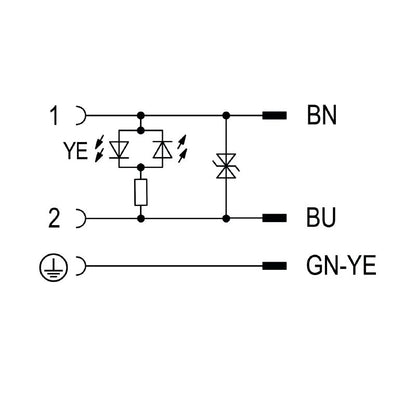

    •Fitted with protective circuits including a suppressor diode.

    •LED indicator included.

Specifications:

 Cable length 5 m
 Core cross-section 0.5 mm²
 Halogen No
 Number of poles 3
 Outside diameter 4.6 mm ± 0.2 mm
 Sheath material PUR
 Shielded No
 Temperature range, moving -25...80 °C
 Temperature range, stationary -50...80 °C
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67 when screwed in
 Temperature range of housing -25…+80 °C

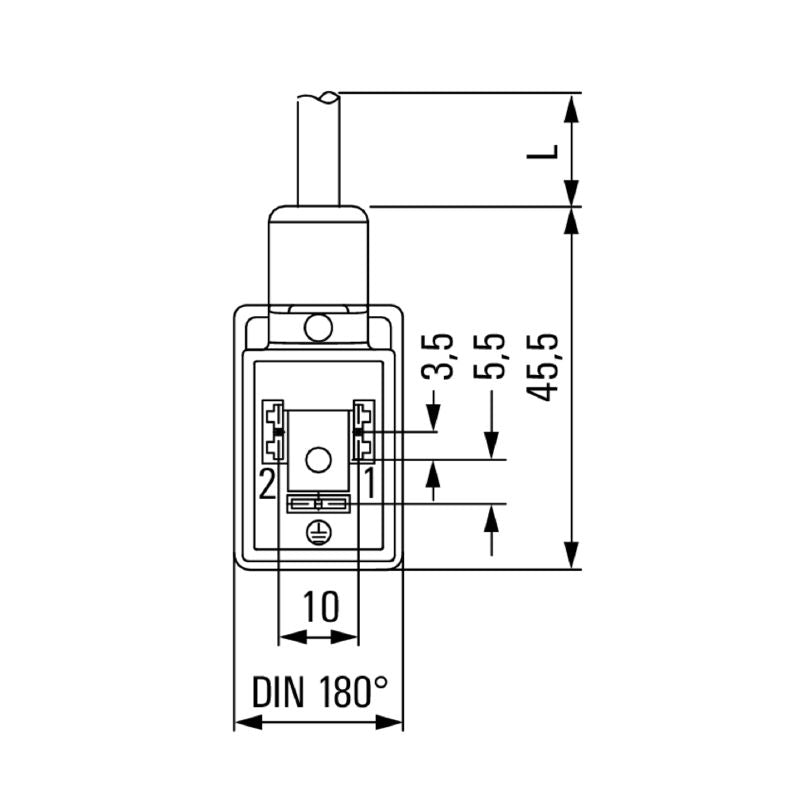

 Coding DIN design B (10 mm)
 Contact material CuZn
 Contact surface tinned
