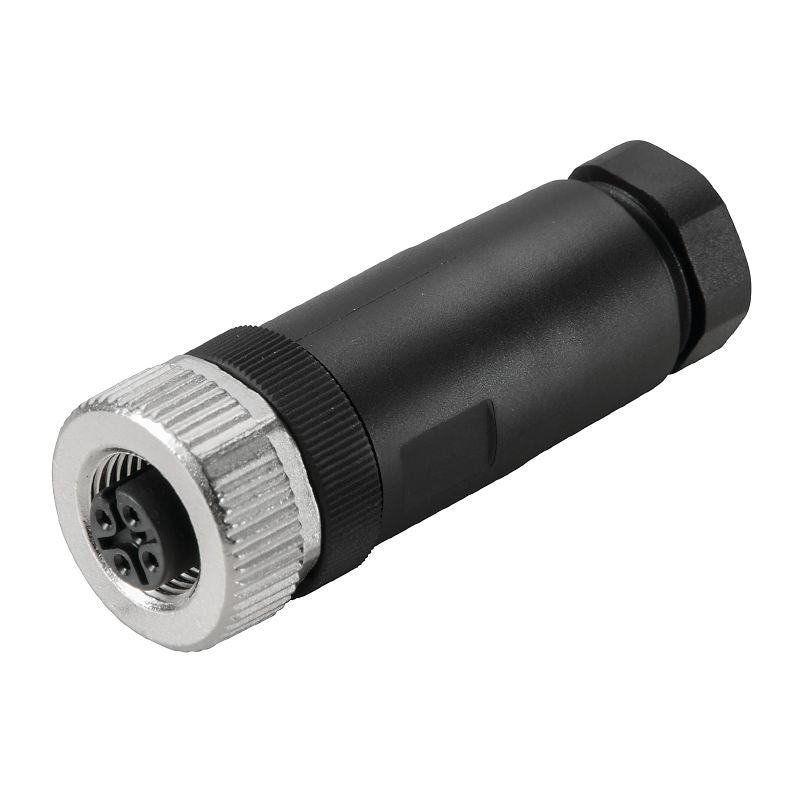

1836960000 - RoHS Certified Field Attachable M12 Connector SAIBGS-P-8A-6/8

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the versatile M12 connector, model SAIBGS-P-8A-6/8-M12, designed for easy field attachment This product is compliant with various regulations, including RoHS, and comes with a cURus certificate (E307231), ensuring it meets established safety and environmental standards Perfect for a range of applications, this connector is built to deliver reliable performance in various conditions.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Max cable diameter of 8 mm and min cable diameter of 6 mm.

•A-coded for specific compatibility.

•Gold-plated contact surface ensures good conductivity.

•Female contact gender.

•Housing made of PA material for durability.

•Insulation resistance rated at 10^8 Ω.

•Nominal current capacity of 2 A.

•Nominal voltage capacity of 60 V.

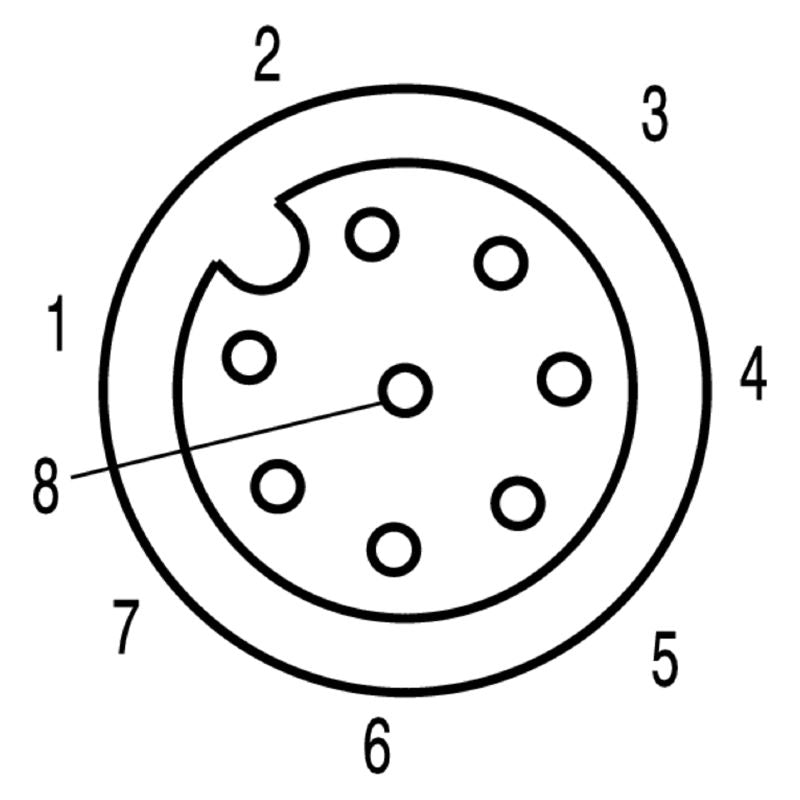

•Rated for 8 poles and can withstand at least 50 plugging cycles.

•IP67 protection degree for dust and water resistance.

•Temperature range of -40 to +85 °C.

Specifications:
