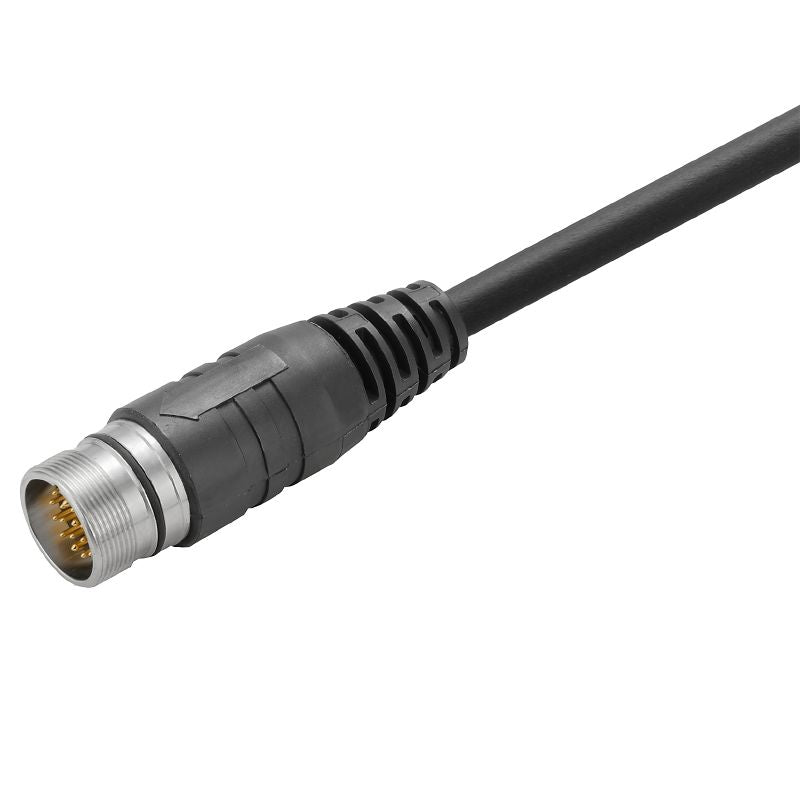

1818162500 - 25m PUR Sensor/Actuator Line with 19 Poles

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Sensor/Actuator line, meticulously crafted for versatility and performance Measuring 25 meters in length, this product features a configuration of 19 poles with a straight pin connection Please note, one end is left unconnected and the shielding is not included Constructed from robust PUR material, this line adheres to RoHS compliance standards, ensuring both safety and durability for a variety of applications.

Perfect for those who demand reliability and quality in their connectivity solutions.

Features and Benefits:

•Bend radius minimum is 10 times the cable diameter.

•Can handle 2 million bending cycles.

•Outer diameter is 9.1 mm ± 0.3 mm.

•IP67 protection degree for water and dust resistance.

•Temperature range for moving applications is from -25°C to 80°C.

•Temperature range for stationary applications from -50°C to 80°C.

•Nominal current rated at 8 A.

•Nominal voltage rated at 120 V.

•Gold-plated contact surface for better conductivity.

•Built with high-quality PUR housing material.

Specifications:
