1818160300 - 3m M23 Sensor/Actuator Line with 19 Poles

1818160300 - 3m M23 Sensor/Actuator Line with 19 Poles

SKU: SKU: 1818160300

Variant:
  • 1818160300 - 3m M23 Sensor/Actuator Line with 19 Poles
Regular price Now $55.95
Regular price BEFORE   $0.00 Sale price Now $55.95
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

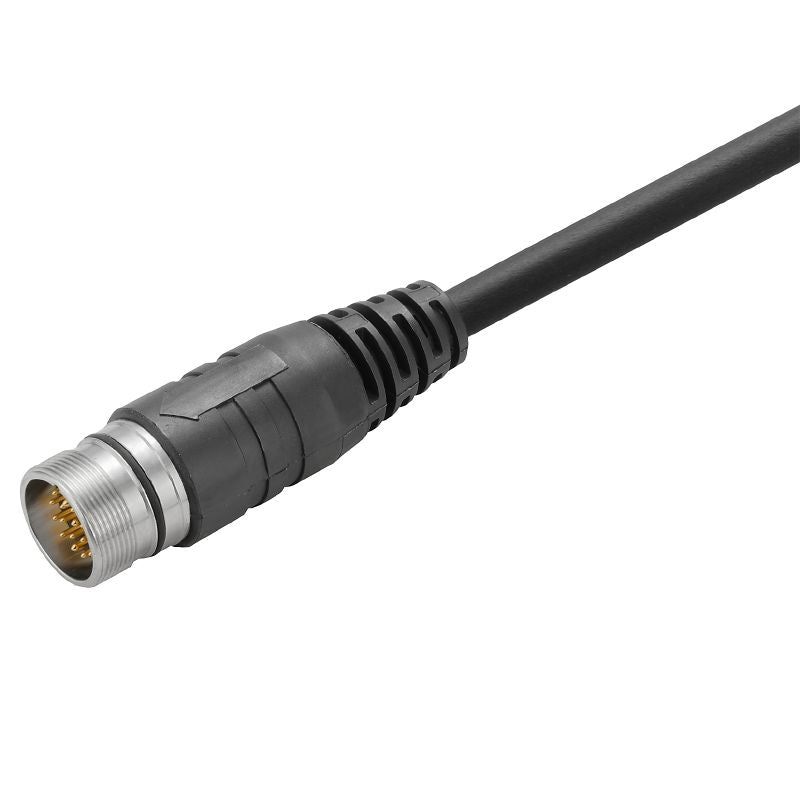

Introducing the sensor/actuator cord, featuring a robust M23 connector with 19 poles at one end With a generous length of 3 meters, this unshielded cable boasts a straight pin design Crafted from durable PUR, it is halogen-free, making it a reliable choice for various applications.

Features and Benefits:

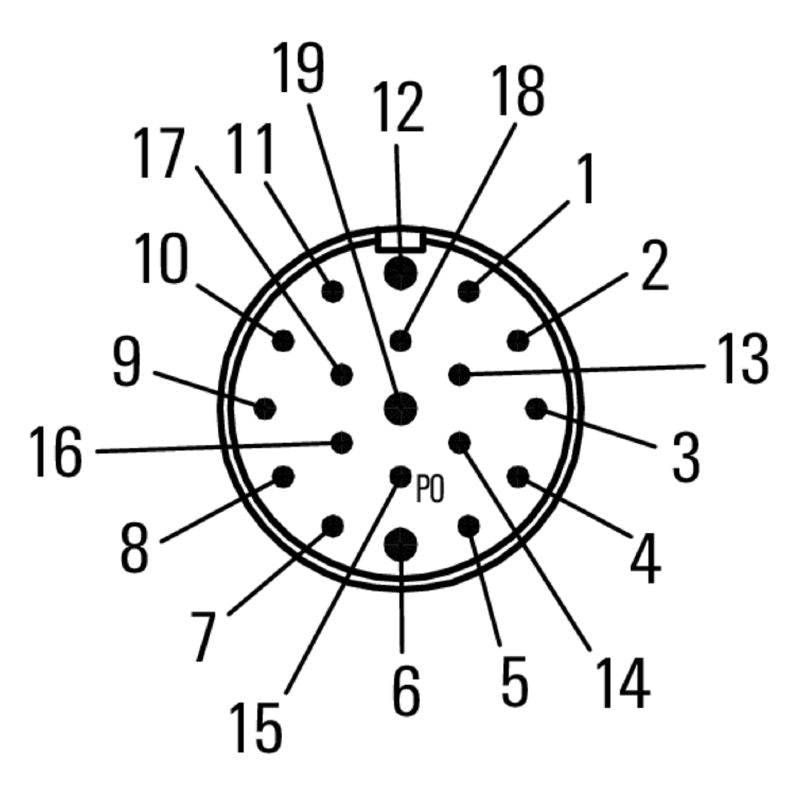

    •19 poles for versatile connectivity.

    •Mechanical resistance with a bending cycle of up to 2 million.

    •Operating temperature range from -25°C to +80°C for mobility applications.

    •Stationary applications can withstand temperatures from -50°C to +80°C.

    •Compliance with RoHS regulations.

    •Suitable for cable carriers.

Specifications:

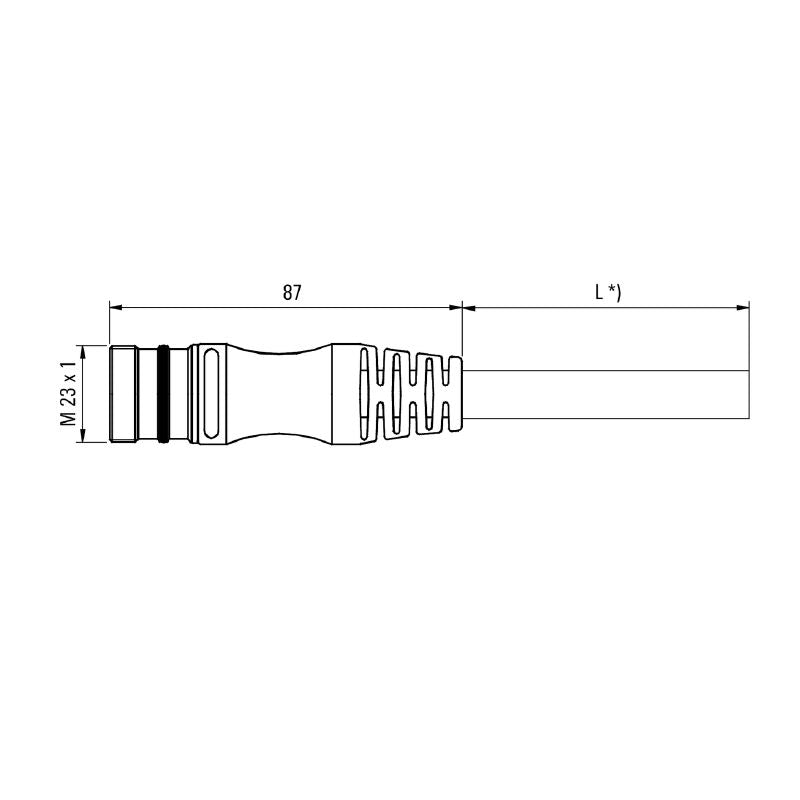

 Cable length 3 m
 Outside diameter 9.1 mm ± 0.3 mm
 Nominal current 8 A
 Nominal voltage 120 V
 Protection degree IP67
 Housing main material PUR
 Connection thread M23
 Contact surface Gold-plated
 Insulation resistance 10^12 Ω
 Plugging cycles ≥ 50
 Pollution severity 2
 Tightening torque M23: 2.5 Nm
 LED No
 Halogen No
