1807340000 - M12 Field Attachable Connector, 6-8mm, IP67, 4A

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

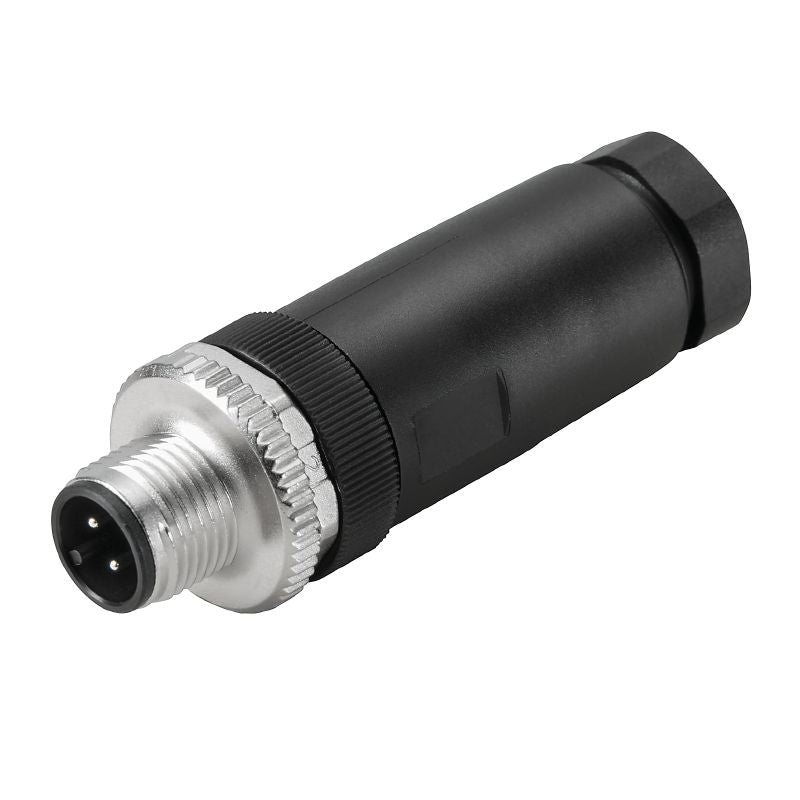

Introducing the SAISGS-P-4A-6/8-M12, a versatile field attachable connector ideal for M12 applications This connector complies with ROHS standards and is certified under UL E307231 for quality assurance With a flexible cable diameter range of 6 mm to 8 mm, it accommodates various installation needs It supports conductor sizes from 014 mm² to 075 mm² and features a male configuration with a CuSnZn contact surface, ensuring excellent conductivity.

Constructed with durable PA housing, this connector offers a remarkable insulation resistance of 10^8 Ω Capable of handling nominal currents of up to 4 A and voltages of 250 V, it includes 4 poles for reliable connections Designed for longevity, it withstands at least 50 plugging cycles, and its IP67 protection rating makes it suitable for challenging environments.

Features and Benefits:

•IP67 protection degree.

•Temperature range from -40 to +85 °C.

•Screw connection type.

•Compliant with ROHS and UL standards.

Specifications:
