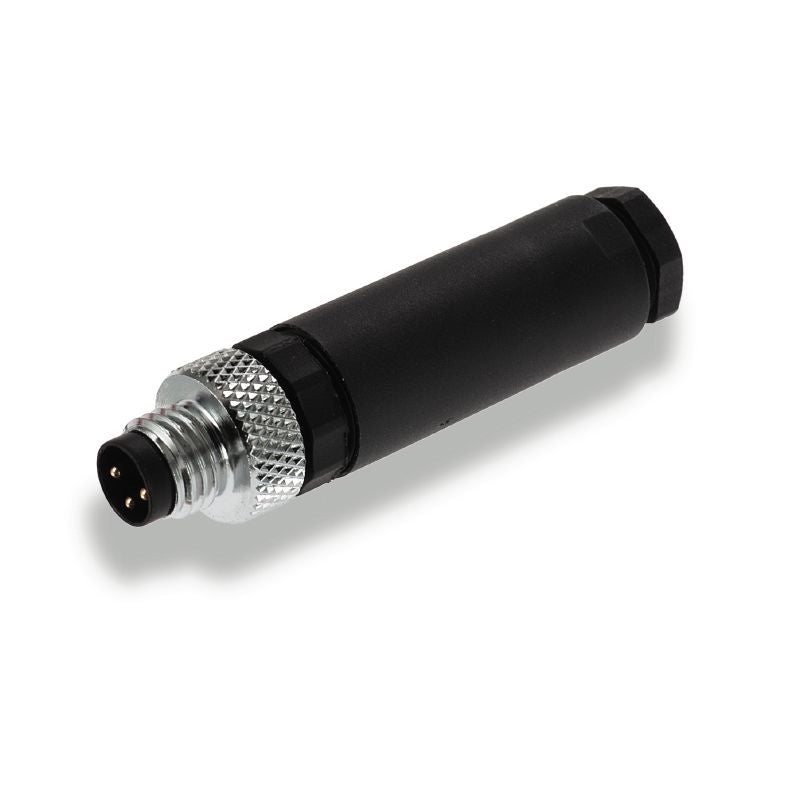

1803860000 - Customizable M8 Field Attachable Connector, RoHS Approved

1803860000 - Customizable M8 Field Attachable Connector, RoHS Approved

SKU: SKU: 1803860000 Download PDF

Variant:
  • 1803860000 - Customizable M8 Field Attachable Connector, RoHS Approved
Regular price Now $7.66
Regular price BEFORE   $0.00 Sale price Now $7.66
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile field attachable connector tailored for M8 applications This product ensures compliance with RoHS standards and is certified under cULus certificate number E307231 It offers a range of customizable options to suit various configurations, making it an ideal choice for your connectivity needs.

Features and Benefits:

    •A-coded.

    •Gold-plated contact surface.

    •Screw connection.

    •IP67 protection degree.

    •Temperature range of housing from -40 to +85 °C.

    •Conductor cross-section range from 0.14 mm² to 0.5 mm².

    •Maximum and minimum cable diameter of 5 mm and 3.5 mm, respectively.

    •Male contact gender.

    •Threaded ring made of diecast zinc.

Specifications:

 cULus Certificate Number E307231
 Nominal Current 4 A
 Nominal Voltage 60 V
 Number of Poles 3
 Plugging Cycles ≥ 50
 Pollution Severity 3
 Insulation Resistance 10^8 Ω
 Shield Connection No
 Environmental Compliance Compliant with RoHS exemption 6c
 REACH SVHC Lead 7439-92-1
