1783420000 - RoHS Compliant Y-Plug with M12/M8 Connections, IP67 Rating

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

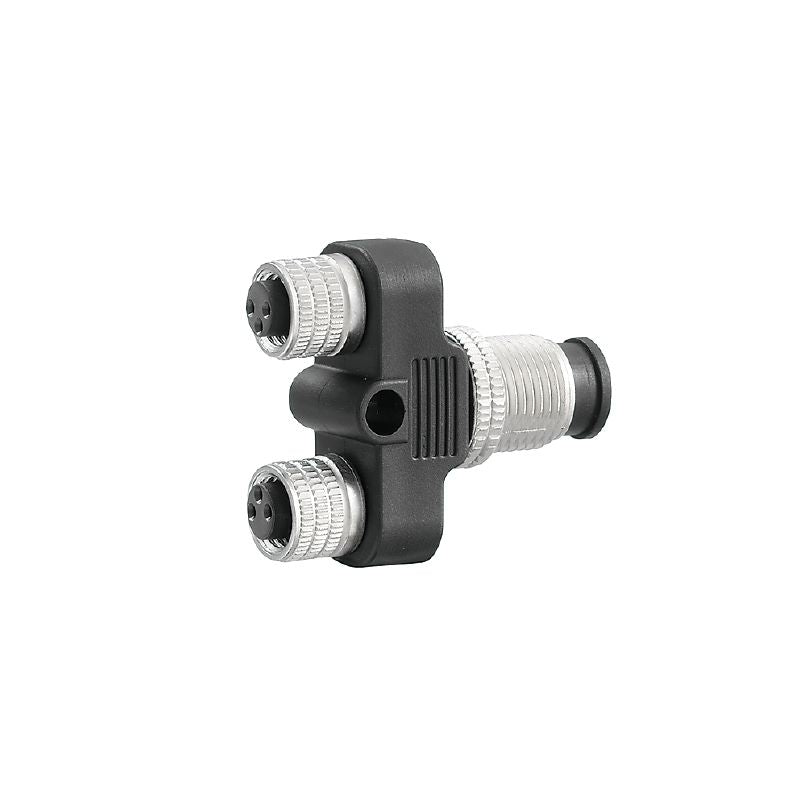

Introducing the SAI-Y-4-4/2-4 M12/8 Y-plug, expertly crafted for seamless connectivity with M12 and M8 interfaces This robust component is RoHS compliant and is identified by the order number 1783420000 and GTIN (EAN) 4032248183357 Weighing in at just 1496 grams, this item is sold individually This Y-plug features a reliable M12 pin group outlet along with two single M8 socket outlets It is designed to meet specific tightening torque requirements, with tolerances of 0.

8 - 12 Nm for M12 and 05 - 06 Nm for M8 The M12 connector is A-coded while the M8 remains un-coded, both equipped with a high-quality gold contact surface Constructed from durable PBT material, the product effectively supports a nominal current of 4A at a voltage of 24V across four poles It boasts an impressive pollution severity rating of 3 and an IP67 protection degree, ensuring reliable operation in various environments.

Featuring a wide operational temperature range from -25 °C to +90 °C, this versatile Y-plug is the ideal choice for demanding applications Please note that it does not include a shield connection and complies with RoHS exemption 6c, containing the REACH SVHC item Lead (7439-92-1).

Features and Benefits:

•RoHS compliant with exemption.

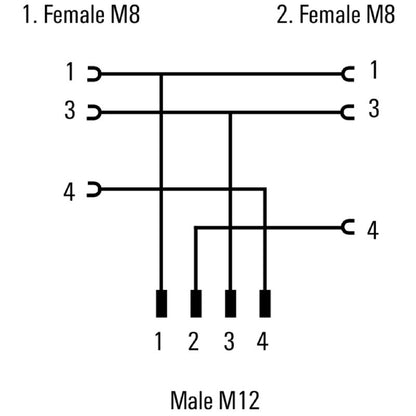

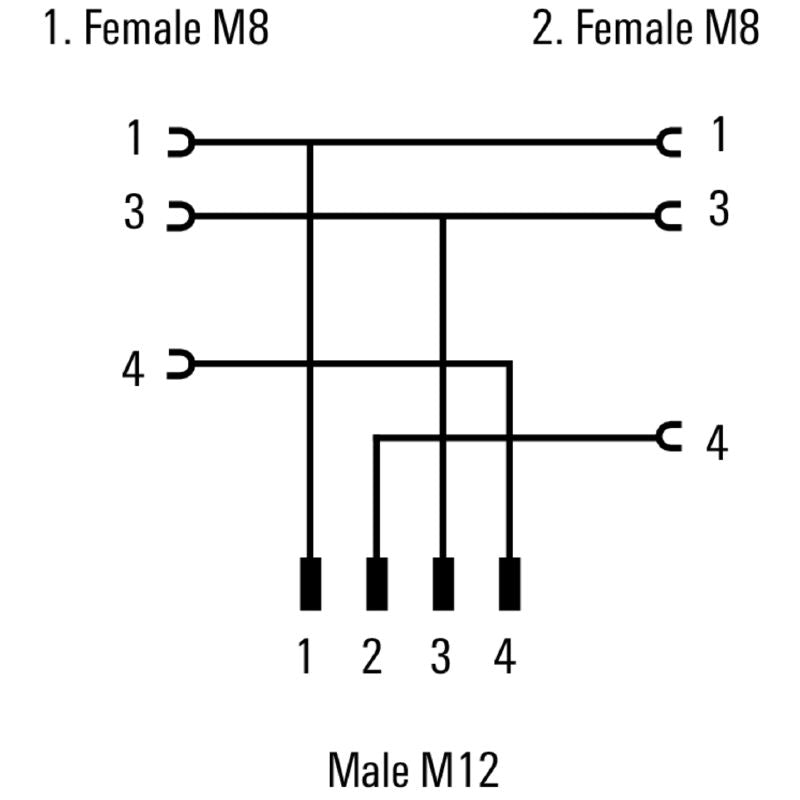

•Includes a group outlet M12 pin and two single outlet M8 sockets.

•Tightening torque specs for M8 and M12 connections.

•Gold contact surface enhances conductivity.

•Housing manufactured from durable PBT material.

•Rated for maximum current of 4A at 24V.

Specifications:
