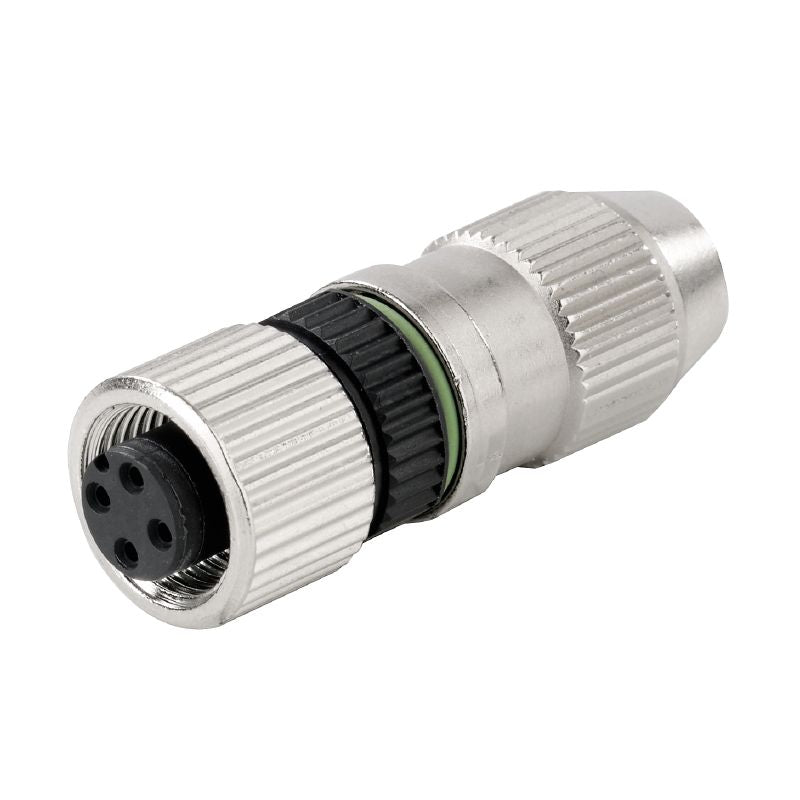

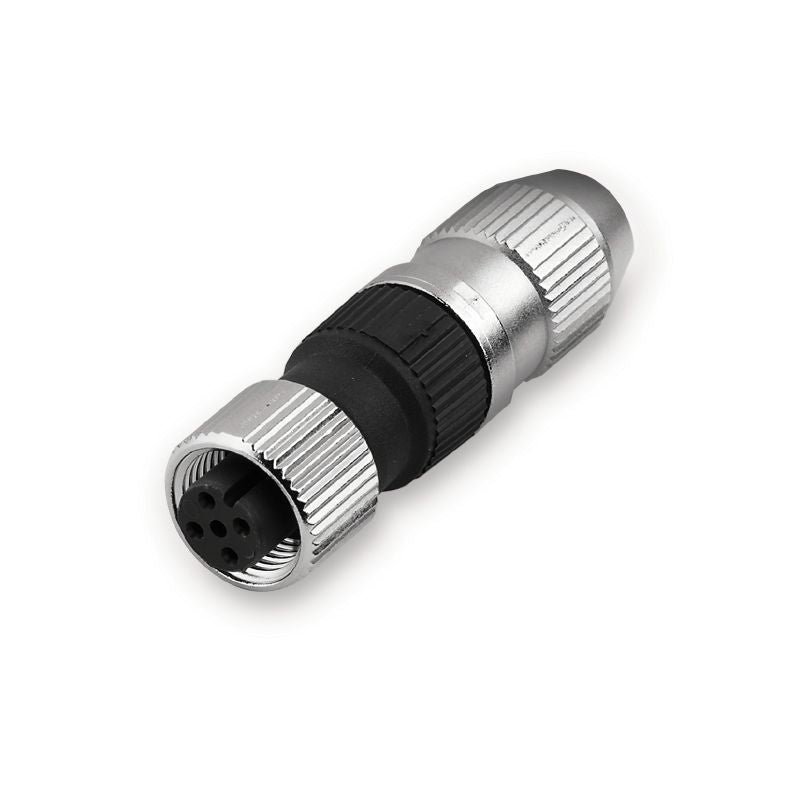

1781540001 - M12 IP67 Connector for 2.9-5.1mm Cables, 4A Rating

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIBGI-P-4A-29/51-M12, a robust field-attachable connector designed in the versatile M12 format for dependable performance This connector is compatible with cable diameters between 29 mm and 51 mm and supports a nominal current of 4 A with a voltage rating of 32 V Featuring four poles, it ensures superior connectivity with its tinned contact surface Crafted from durable CuZn material, this connector is rated IP67, providing excellent protection against environmental factors.

It can operate within a temperature range of -25°C to +85°C and boasts an impressive insulation resistance of 10^8 Ω Designed to utilize an insulation displacement connection, this connector can withstand at least 50 plugging cycles, making it ideal for demanding applications.

Features and Benefits:

•House material made of CuZn.

•IP67 protection rating.

•Compatible with cable diameters from 2.9 mm to 5.1 mm.

•Can accommodate a maximum conductor cross-section of 0.34 mm².

Specifications:
