1746030004 - Yellow 12x5.7mm Polyamide Conductors Marker, ROHS Compliant (Pack of 192)

SKU: SKU: 1746030004 Download PDF

Select a Variant:

1746030004 - Yellow 12x5.7mm Polyamide Conductors Marker, ROHS Compliant (Pack of 192)

SET THE QTY:

Now $39.14 Web pricing policy

~~BEFORE $0.00~~ Now $39.14 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

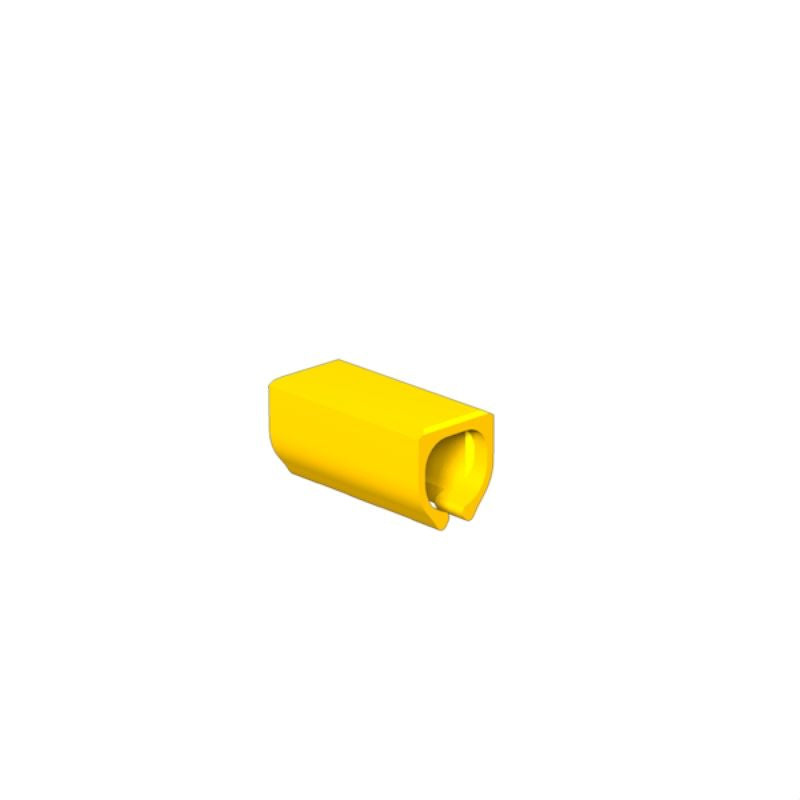

Introducing the SlimFix conductor and cable markers, expertly crafted to fit conductor sizes between 25 mm² and 4 mm², accommodating outer diameters of 36 mm to 6 mm Made from robust polyamide 66, these markers meet ROHS standards, ensuring they are both reliable and durable Each marker measures 12 x 57 mm and comes in a bright yellow hue, making it an excellent choice for all your labeling needs Each MultiCard includes one marker, offering a practical solution for easy identification.

Features and Benefits:

•Operating temperature range from -50°C to 120°C.

•Compliant with RoHS regulations without exemptions.

•Flammability rating of UL 94 V-0.

•Compatible with PRINTJET CONNECT printers.

•Suitable for the transportation industry.

•Applicable in machinery.

Specifications:

Depth	6.1 mm
Height	12 mm
Width	5.7 mm
Conductor cross-section (max)	4 mm²
Conductor cross-section (min)	2.5 mm²
Conductor O.D.	3.6 - 6 mm
Cross-section for connected wire	2.5 - 4 mm²
Product Carbon Footprint	0.004 kg CO2 eq.
Basic material	Polyamide 66
Number of markers per combination	1 MultiCard = Conductor and cable markers
Size of labelling field	12 x 5.7 mm
Halogen	No
REACH SVHC	No SVHC above 0.1 wt%
ETIM 6.0	EC001530
ECLASS 9.0	27-40-04-01
