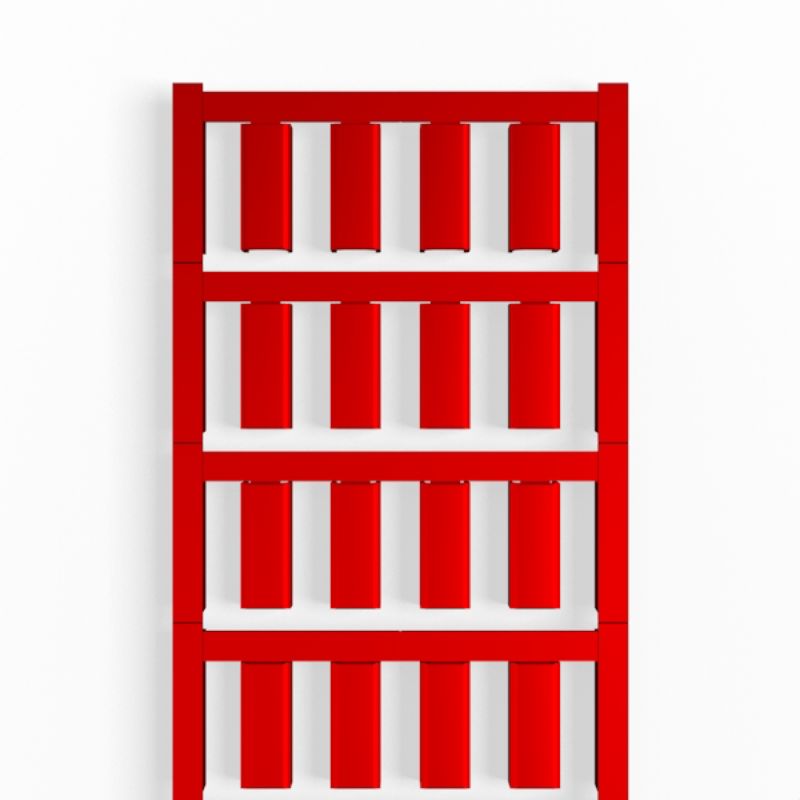

1730560003 - SlimFix 21x8.4mm Cable Marker for 5.8-7.8mm Wires (Pack of 160)

1730560003 - SlimFix 21x8.4mm Cable Marker for 5.8-7.8mm Wires (Pack of 160)

SKU: SKU: 1730560003 Download PDF

Variant:
  • 1730560003 - SlimFix 21x8.4mm Cable Marker for 5.8-7.8mm Wires (Pack of 160)
Regular price Now $83.74
Regular price BEFORE   $0.00 Sale price Now $83.74
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

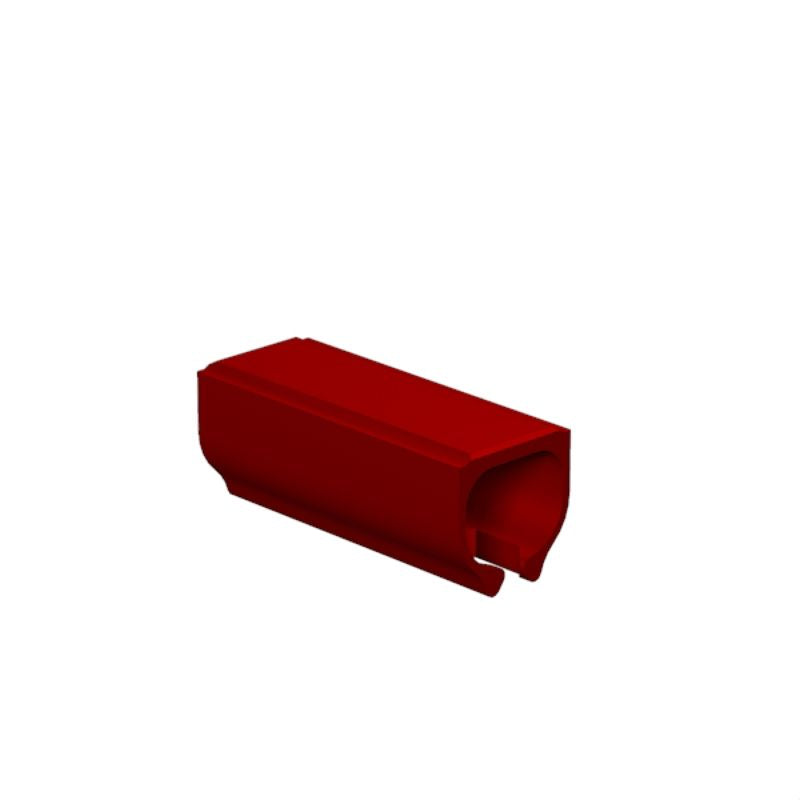

Introducing the SlimFix conductor and cable marker, an essential tool for wire labeling, measuring 21 x 84 mm Ideal for use in diverse industries such as transportation and machinery, these markers meet RoHS compliance standards and are crafted from durable Polyamide 66 material Each MultiCard includes one conductor and cable marker designed for cables with an outer diameter between 58 and 78 mm and supports cross-section capacities from 10 to 16 mm².

With a UL 94 flammability rating of V-0, these markers combine safety, functionality, and versatility for all your labeling needs.

Features and Benefits:

    •Conductor and cable markers designed for labels.

    •Made of durable polyamide material.

    •RoHS compliant without exemptions.

    •No halogen content.

    •Contains 1 MultiCard per packaging unit.

    •Operating temperature range between -50 to 120 °C.

    •Suitable for various labeling applications.

    •Transportation.

    •Machinery.

Specifications:

 Depth 8.5 mm
 Height 21 mm
 Width 8.4 mm
 Net weight 0.885 g
 Conductor cross-section, max. 16 mm²
 Conductor cross-section, min. 10 mm²
 Conductor O.D. 5.8 - 7.8 mm
 Operating temperature range, max. 120 °C
 Operating temperature range, min. -50 °C
 Size of labelling field 21 x 8.4 mm
 Classifications ETIM 6.0 EC001530
 Classifications ECLASS 9.0 27-40-04-01
