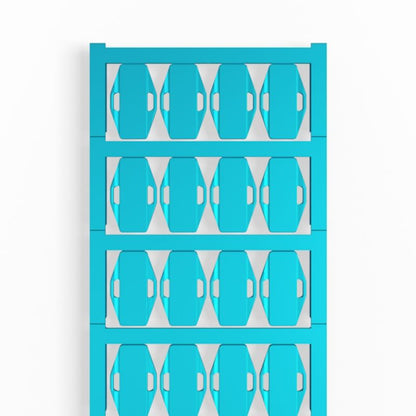

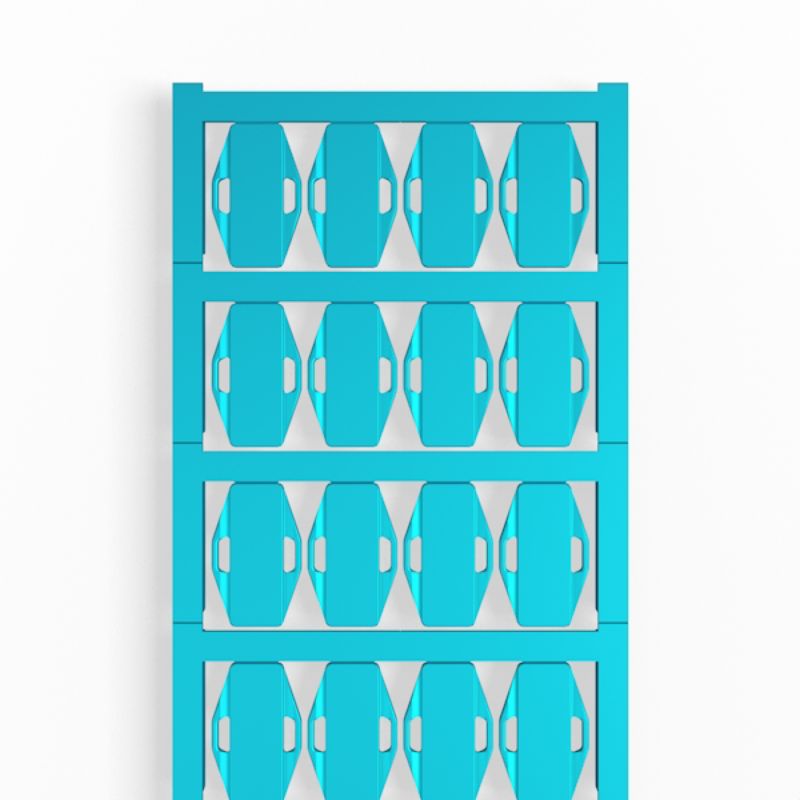

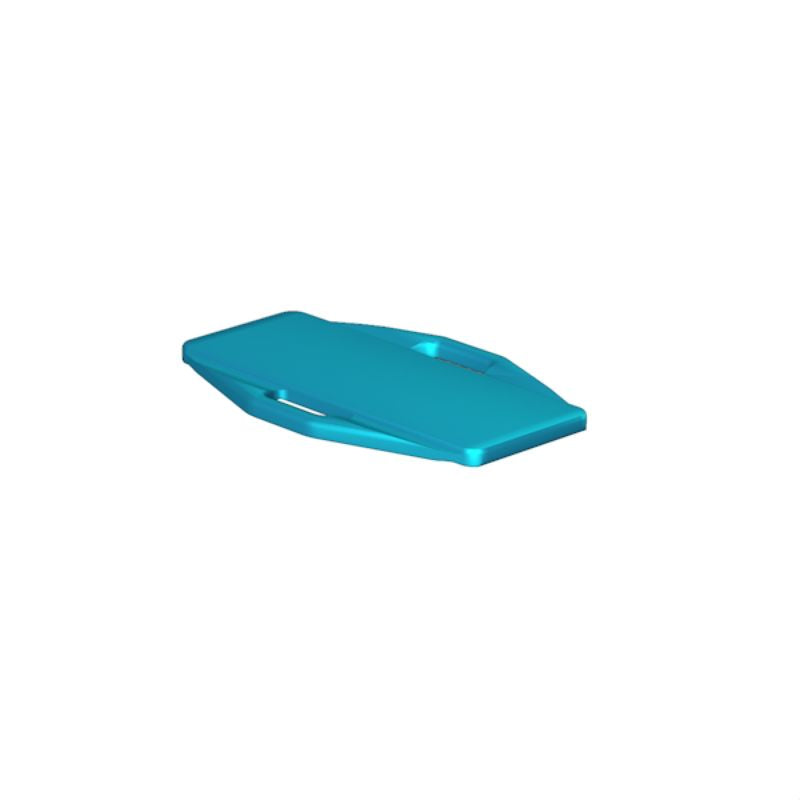

1727740002 - Blue Polyamide MultiCard for Cable ID, 24x15mm, RoHS Compliant (Pack of 320)

1727740002 - Blue Polyamide MultiCard for Cable ID, 24x15mm, RoHS Compliant (Pack of 320)

SKU: 1727740002   Download PDF

Select a Variant:
  • 1727740002 - Blue Polyamide MultiCard for Cable ID, 24x15mm, RoHS Compliant (Pack of 320)
Qty:
Now $169.14   Web pricing policy
BEFORE   $0.00 Now $169.14 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the VT SFX 9/24 MC NE BL V0, a part of the SlimFix X series tailored for effective conductor and cable identification with a diameter range of 7 to 40 mm These vibrant blue markers measure 24 x 15 mm, and each MultiCard includes a complete set of markers, making it an excellent choice for various applications, especially in transportation and machinery fields This marker system adheres to RoHS standards, ensuring it contains no restricted substances above 0.

1 wt% Crafted from polyamide 66, the product is halogen-free and boasts a UL 94 flammability rating of V-0, promising safety and reliability.

Features and Benefits:

    •Marker dimensions of 24 x 15 mm.

    •Conductor cross-section capability ranges from 16 to 500 mm².

    •Compatible with PRINTJET CONNECT printer.

    •Designed for installation with cable ties.

    •Operable in temperatures from -50 °C to 120 °C.

    •Compliant with RoHS without exemptions.

    •Halogen-free material.

    •Labeling for conductor and cable identification.

    •Suitable for use in the transportation sector.

    •Applicable in machinery.

Specifications:

 Depth 0.5 mm
 Height 24 mm
 Width 15 mm
 Net weight 0.473 g
 Operating temperature range -50...120 °C
 Conductor O.D. 7 - 40 mm
 Conductor O.D., max. 40 mm
 Conductor O.D., min. 7 mm
 Size of labelling field 23.9 x 9 mm
 Number of markers per packaging unit MultiCard
 Basic material Polyamide 66
 ETIM classifications {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
