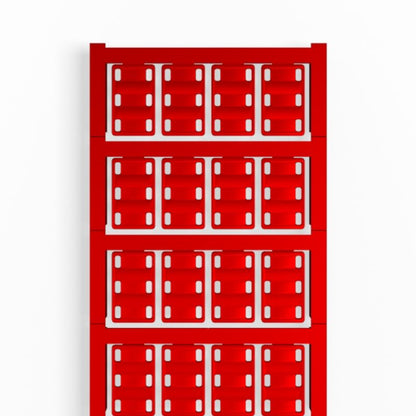

1689490003 - Red Slim Cable Markers 23x14mm, 320pcs, -50 to 120°C (Pack of 320)

1689490003 - Red Slim Cable Markers 23x14mm, 320pcs, -50 to 120°C (Pack of 320)

SKU: SKU: 1689490003 Download PDF

Variant:
  • 1689490003 - Red Slim Cable Markers 23x14mm, 320pcs, -50 to 120°C (Pack of 320)
Regular price Now $198.99
Regular price BEFORE   $0.00 Sale price Now $198.99
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

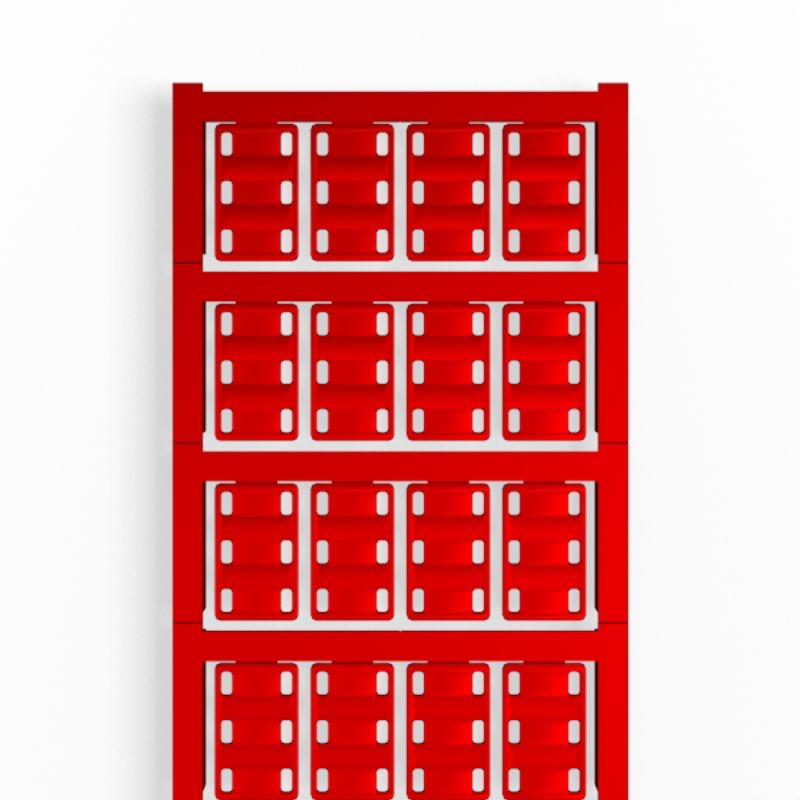

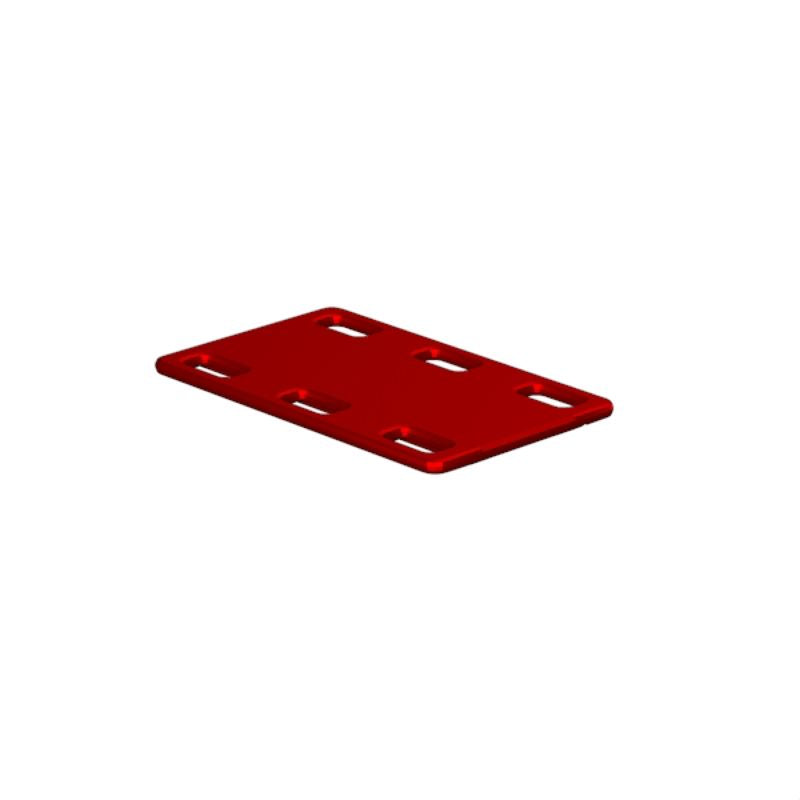

This set features sleek conductor and cable markers, specifically designed for dimensions ranging from 7 to 40 mm Each marker measures 23 x 14 mm and comes in a vibrant red color Built to withstand extreme temperatures from -50 to 120 °C, these markers are both durable and reliable The collection includes a total of 320 markers per order and is crafted from halogen-free polyamide 66, ensuring safety and quality for your applications.

Features and Benefits:

    •Maintenance-free and easy installation using cable ties.

    •Operates within a broad temperature range of -50 to 120 °C.

    •Compliant with RoHS without exemptions.

    •No known SVHC above 0.1 wt%.

    •1 MultiCard contains conductor and cable markers.

    •Transportation.

    •Machinery.

Specifications:

 Depth 0.5 mm
 Height 23 mm
 Width 14 mm
 Net weight 0.555 g
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Conductor O.D. 7 - 40 mm
 Cross-section for connected wire 16 - 500 mm²
 UL 94 flammability rating V-0
 Material Polyamide 66
 Size of labelling field 23 x 8 mm
 Type of printing neutral
 Operating temperature range -50...120 °C
