1689470001 - 21x7.4mm SlimFix Cable Marker, Polyamide, White (Pack of 160)

1689470001 - 21x7.4mm SlimFix Cable Marker, Polyamide, White (Pack of 160)

SKU: SKU: 1689470001 Download PDF

Variant:
  • 1689470001 - 21x7.4mm SlimFix Cable Marker, Polyamide, White (Pack of 160)
Regular price Now $51.68
Regular price BEFORE   $0.00 Sale price Now $51.68
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

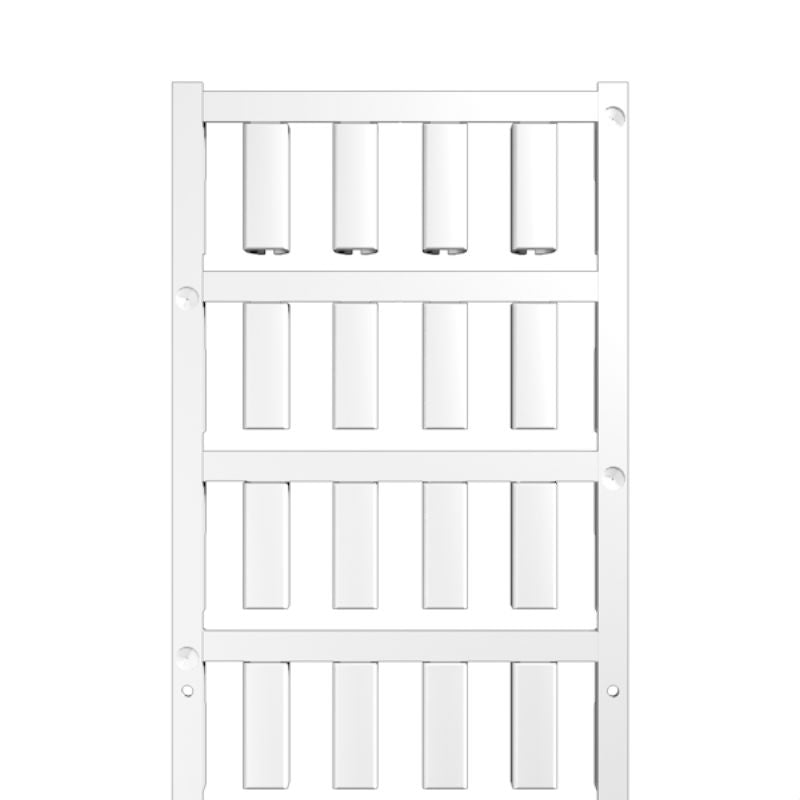

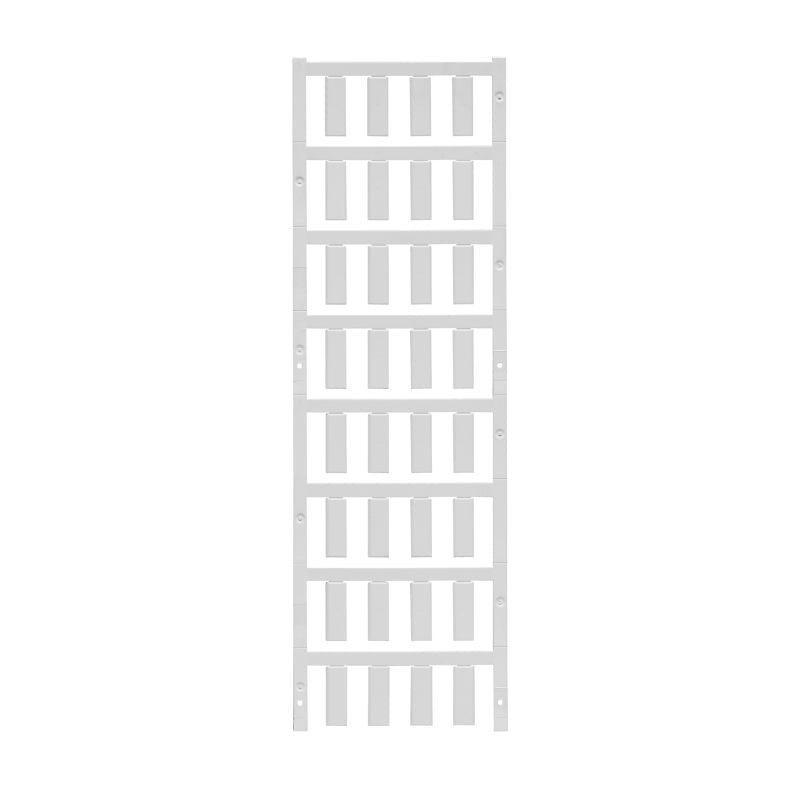

Introducing the SlimFix conductor and cable marker, expertly crafted for cables ranging from 48 to 74 mm in diameter This versatile marker measures 21 x 74 mm and features a bright white design, making it easy to spot Each marker complies with RoHS standards and is conveniently packaged with 160 units per MultiCard for efficient organization Made from durable polyamide 66, this product is engineered to withstand temperatures between -50 and 120 °C, ensuring reliability in various environments.

Perfect for clear identification of your conductors and cables!.

Features and Benefits:

    •Complies with RoHS without exemptions.

    •Compatible with PRINTJET CONNECT printers.

    •V-0 flammability rating according to UL 94.

    •Single MultiCard contains conductor and cable markers.

    •Recommended for use in transportation and machinery industries.

Specifications:

 Depth 8 mm
 Height 21 mm
 Width 7.4 mm
 Operating temperature range -50...120 °C
 Basic material Polyamide 66
 Colour white
 Conductor cross-section, max 10 mm²
 Conductor cross-section, min 6 mm²
 Conductor O.D. 4.8 - 7.4 mm
 Cross-section for connected wire 6 - 10 mm²
 Product Carbon Footprint 0.006 kg CO2 eq.
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
