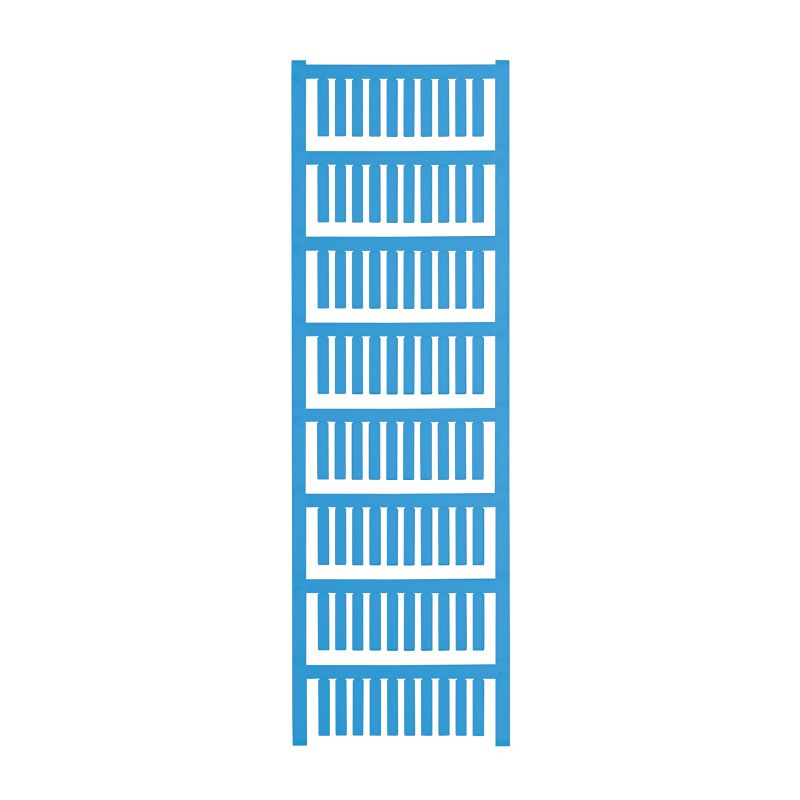

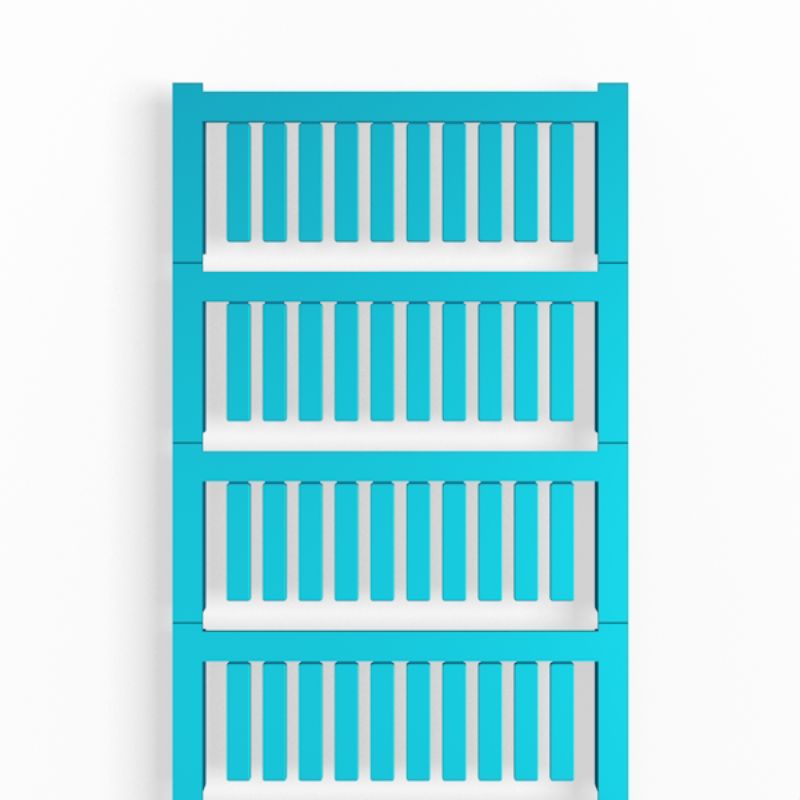

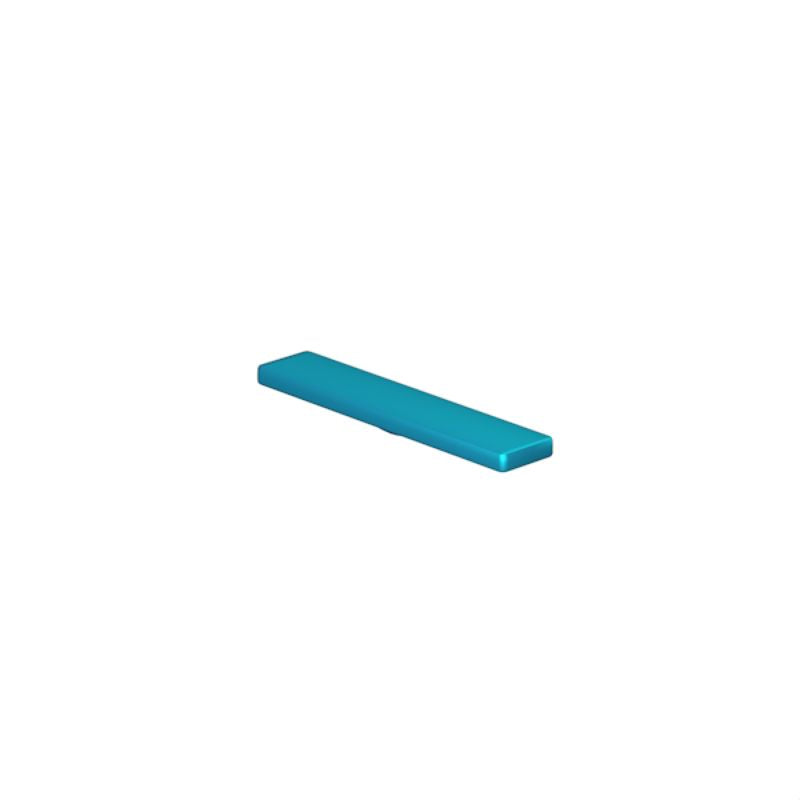

1680411693 - Blue Insert Markers, 20 x 4 mm for 1.5-22 mm Conductors (Pack of 400)

1680411693 - Blue Insert Markers, 20 x 4 mm for 1.5-22 mm Conductors (Pack of 400)

SKU: SKU: 1680411693 Download PDF

Variant:
  • 1680411693 - Blue Insert Markers, 20 x 4 mm for 1.5-22 mm Conductors (Pack of 400)
Regular price Now $69.13
Regular price BEFORE   $0.00 Sale price Now $69.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TM-I 20 MC NE BL insert markers, specifically crafted for effective marking of conductors with outer diameters between 15 and 22 mm These blue markers measure 20 x 4 mm and adhere to RoHS standards, ensuring they are free from harmful substances Made primarily from polyamide 66, they are versatile for numerous applications such as transportation and machinery Designed to withstand operating temperatures from -40°C to 100°C, these markers combine functionality and safety for various environments.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •Suitable for operating temperatures between -40°C and 100°C.

    •UL 94 flammability rating of V-2.

    •Compatible with PRINTJET CONNECT printer.

    •Offered in a packing form of MultiCard with 80 markers per sheet.

    •Transportation.

    •Machinery.

Specifications:

 Depth 2 mm
 Height 20 mm
 Width 4 mm
 Conductor O.D. 1.5 - 22 mm
 Basic material Polyamide 66
 Number of markers per combination 1 MultiCard = Insert markers
 Operating temperature range -40...100 °C
 Carbon Footprint 0.002 kg CO2 eq.
 Halogen No
 Number per sheet 80
 ETIM {'ETIM 6.0': 'EC001530', 'ETIM 7.0': 'EC001530', 'ETIM 8.0': 'EC001530', 'ETIM 9.0': 'EC001530', 'ETIM 10.0': 'EC001530'}
 ECLASS {'ECLASS 9.0': '27-40-04-01', 'ECLASS 9.1': '27-40-04-01', 'ECLASS 10.0': '27-40-04-01', 'ECLASS 11.0': '27-28-11-02', 'ECLASS 12.0': '27-28-11-02', 'ECLASS 13.0': '27-28-11-02', 'ECLASS 14.0': '27-28-11-02', 'ECLASS 15.0': '27-28-11-02'}
