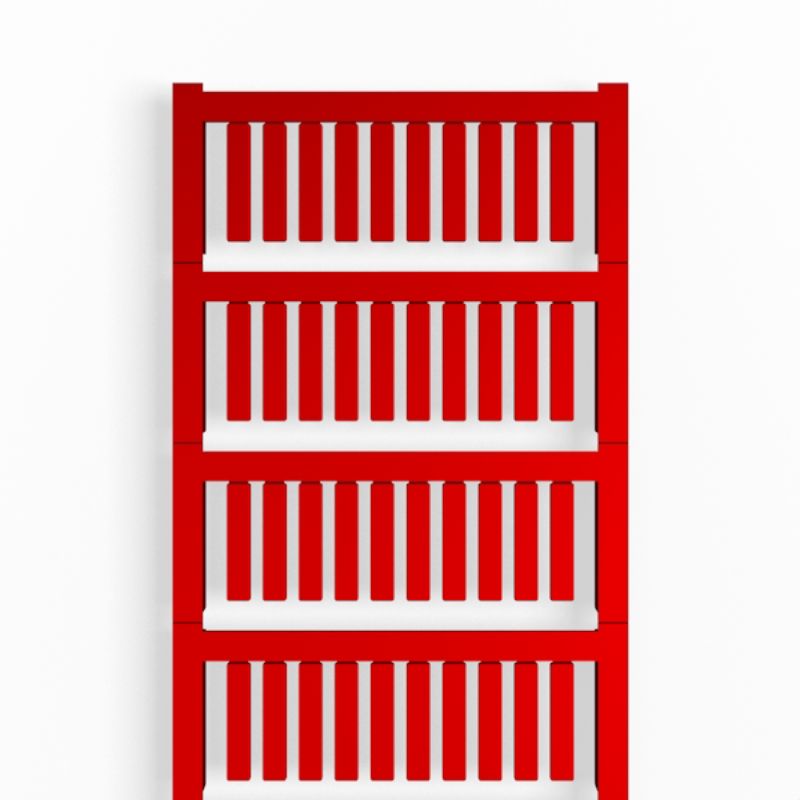

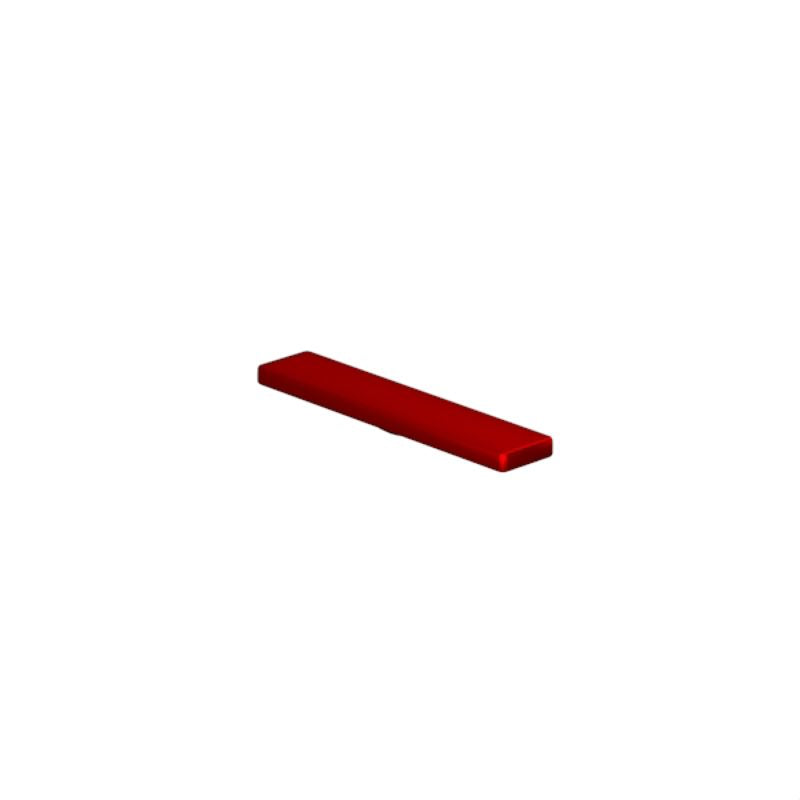

1680411686 - Red Insert Markers 20x4mm for 1.5-22mm Conductors (Pack of 400)

1680411686 - Red Insert Markers 20x4mm for 1.5-22mm Conductors (Pack of 400)

SKU: SKU: 1680411686 Download PDF

Variant:
  • 1680411686 - Red Insert Markers 20x4mm for 1.5-22mm Conductors (Pack of 400)
Regular price Now $69.13
Regular price BEFORE   $0.00 Sale price Now $69.13
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the TM-I 20 MC NE RT insert markers, perfectly designed to fit conductors with sizes between 15 mm and 22 mm Each marker measures 20 mm by 4 mm and is vibrantly colored in red These products meet RoHS regulations without the need for any exemptions You will receive a bulk package containing 400 markers, with each MultiCard providing 80 individual pieces These markers are neutral regarding printed characters, making them compatible with printers such as the PRINTJET CONNECT.

Features and Benefits:

    •Operating temperature range from -40 °C to 100 °C.

    •Basic material is Polyamide 66.

    •UL 94 flammability rating is V-2.

    •Suitable for various industries including Transportation and Machinery.

Specifications:

 Order No. 1680411686
 GTIN (EAN) 4008190367848
 Depth 2 mm
 Height 20 mm
 Width 4 mm
 Net weight 0.21 g
 Conductor O.D. 1.5 - 22 mm
 RoHS Compliance Status Compliant without exemption
 Material color according to resistance code 2
 Number of markers per combination 1 MultiCard = Insert markers
 Number of markers per packaging unit 80
 Classifications {'ETIM 6.0': 'EC001530', 'ECLASS 9.0': '27-40-04-01'}
