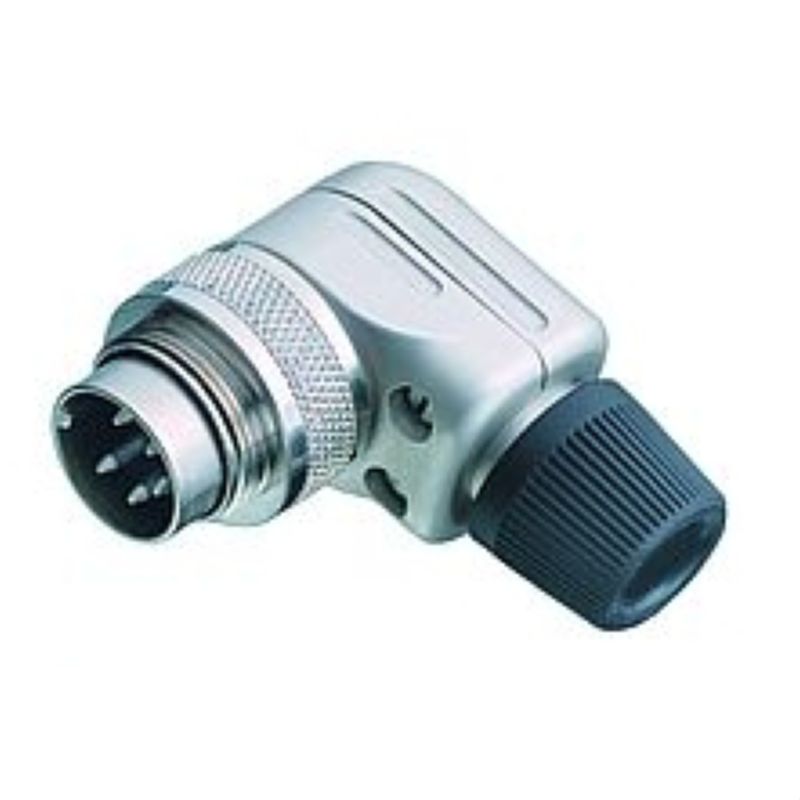

1548850000 - M16 Field Attachable Connector, IP40, 12 Poles, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M16 field attachable connector, designed to meet RoHS compliance standards This versatile connector supports a cable diameter range from 6 mm to 8 mm and accommodates conductor cross-sections from a minimum of 014 mm² to a maximum of 075 mm² It also facilitates connection cross-sections up to 025 mm² Crafted with a durable male gender type and a housing made of PA material, this connector features silver contact surfaces for optimal conductivity.

With an impressive insulation resistance of 10^8 Ω, it operates at nominal currents of 3 A and can handle voltages up to 60 V Designed with 12 poles, it can withstand a minimum of 500 plugging cycles and operates effectively under pollution severity level 3 Protected with an IP40 rating, this connector is resilient in various environments and is capable of functioning within a temperature range of -40 °C to +85 °C.

The threaded ring is constructed from robust diecast zinc, ensuring a reliable and stable connection achieved through soldering Perfect for diverse applications where durability and performance are essential.

Features and Benefits:

•RoHS compliant.

•Silver contact surface.

•Male gender type.

•Temperature range of -40 to +85 °C.

•IP40 protection degree.

Specifications:
