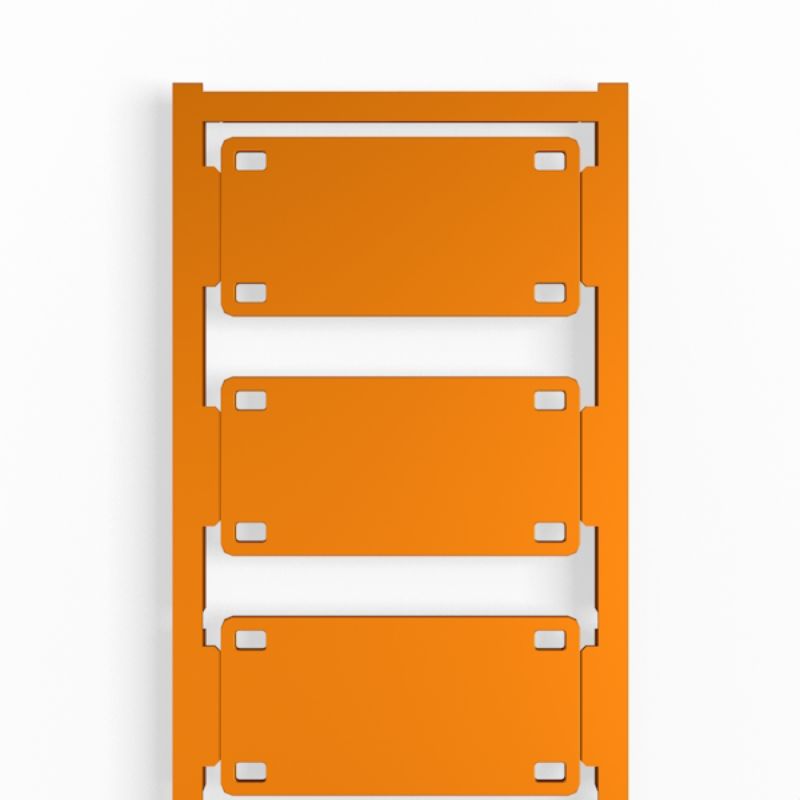

1490710000 - Orange SlimFix X Cable Marker 60x30mm, RoHS Compliant (Pack of 30)

1490710000 - Orange SlimFix X Cable Marker 60x30mm, RoHS Compliant (Pack of 30)

SKU: SKU: 1490710000 Download PDF

Variant:
  • 1490710000 - Orange SlimFix X Cable Marker 60x30mm, RoHS Compliant (Pack of 30)
Regular price Now $17.78
Regular price BEFORE   $0.00 Sale price Now $17.78
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix X, a versatile conductor and cable marker designed for cable sizes ranging from 7 to 40 mm Measuring 60 x 30 mm and featuring a vibrant orange color, this marker is perfect for various applications in industries like transportation and machinery It adheres to RoHS standards and is free from halogens, ensuring safety and compliance Each MultiCard contains one conductor and cable marker, which can be printed on using compatible printers such as PRINTJET CONNECT.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Contains no halogens.

    •Suitable for operating temperatures between -40 and 100 °C.

    •Accommodates conductor outer diameters from 7 to 40 mm.

    •Installation can be performed using cable ties.

    •Transportation.

    •Machinery.

Specifications:

 Depth 1.2 mm
 Height 60 mm
 Width 30 mm
 Net weight 3.96 g
 Operating temperature range -40...100 °C
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Conductor O.D. 7 - 40 mm
 Cross-section for connected wire 16 - 500 mm²
 UL 94 flammability rating V-2
 Basic material Polyamide 66
