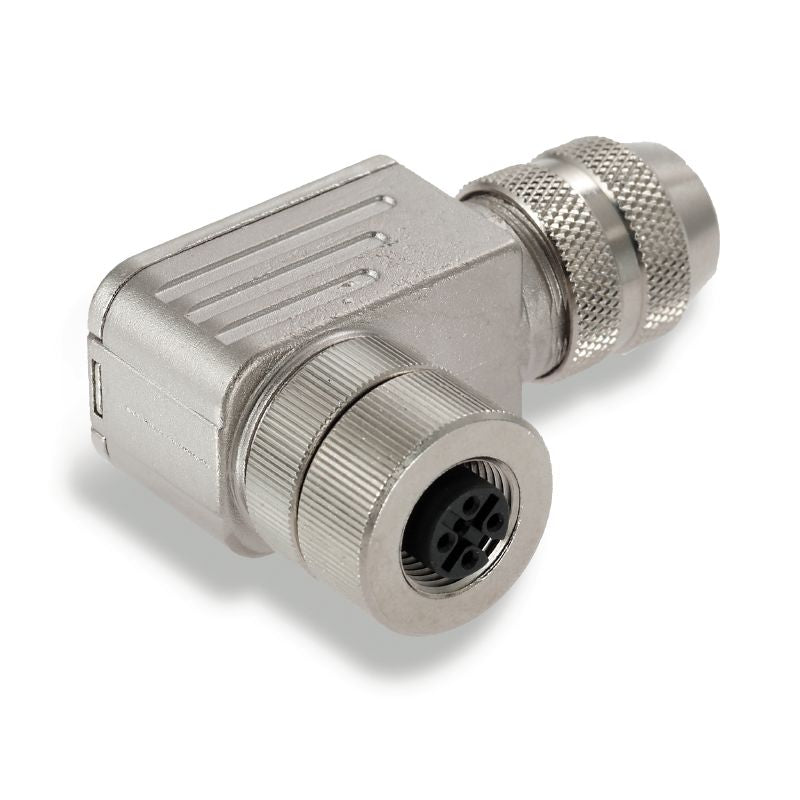

1344740000 - M12 Female Connector, IP67, 6-8mm Cable, 4A, RoHS Approved

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your connectivity with this M12 field attachable connector, designed with essential features and compliance standards It accommodates cables with a diameter ranging from 6mm to 8mm and is equipped with female contacts This component is capable of handling a nominal current of 4A and a voltage of 250V, allowing for a configuration of up to 4 poles With an impressive durability of over 100 plugging cycles, it boasts an IP67 protection rating, ensuring reliability in various environments.

Crafted from durable PA material for the housing and diecast zinc for the threaded ring, this connector also meets RoHS requirements, with specific exemptions for substances like lead and Imidazolidine-2-thione to ensure environmental standards are upheld.

Features and Benefits:

•A-coded contact coding.

•Gold-plated contact surfaces.

•Shield connection available.

•Designed for a temperature range of -40 to +85 °C.

•Utilizes a tension-clamp connection type.

Specifications:
