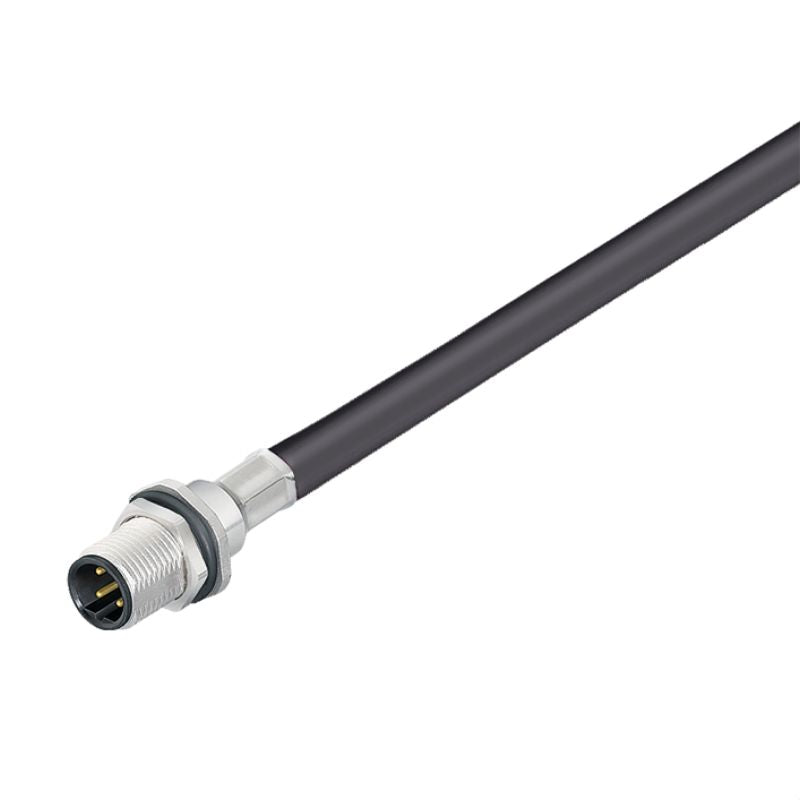

1341230050 - 0.5m M12 Cable with 5 Poles and Built-in Plugs

1341230050 - 0.5m M12 Cable with 5 Poles and Built-in Plugs

SKU: SKU: 1341230050 Download PDF

Variant:
  • 1341230050 - 0.5m M12 Cable with 5 Poles and Built-in Plugs
Regular price Now $20.00
Regular price BEFORE   $0.00 Sale price Now $20.00
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this M12 cable measuring 05 meters in length, featuring integrated plugs for easy connectivity With five poles and a robust black sheath, this cable not only meets environmental regulations, including RoHS compliance with exemption 6c, but also guarantees dependable performance for a myriad of applications requiring secure connections.

Features and Benefits:

    •Compliant with RoHS and REACH regulations.

    •Equipped with gold-plated contact surfaces for enhanced connectivity.

    •Rated for nominal current of 4 A and nominal voltage of 125 V.

    •IP68 protection degree for durability in harsh environments.

    •Temperature range suitable from -5 to +70 °C.

Specifications:

 Cable length 0.5 m
 Core cross-section 0.25 mm²
 Number of poles 5
 Sheathing colour black
 Cable gland PG 9
 Coding A-coded
 Housing main material Zinc diecast, nickel-plated
 Protection degree IP68
 Rated current 4 A (5-pole)/ 2 A (8-pole)
 Type of connection Pin
