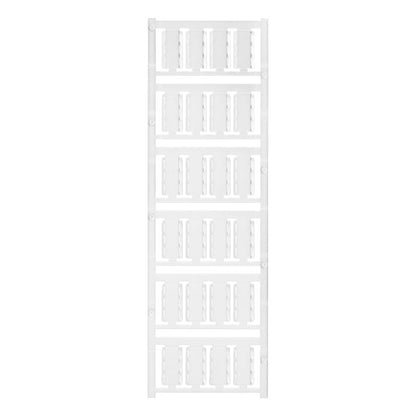

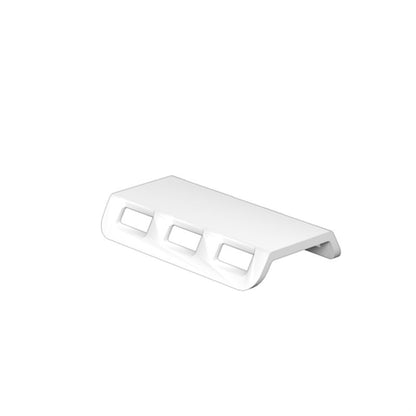

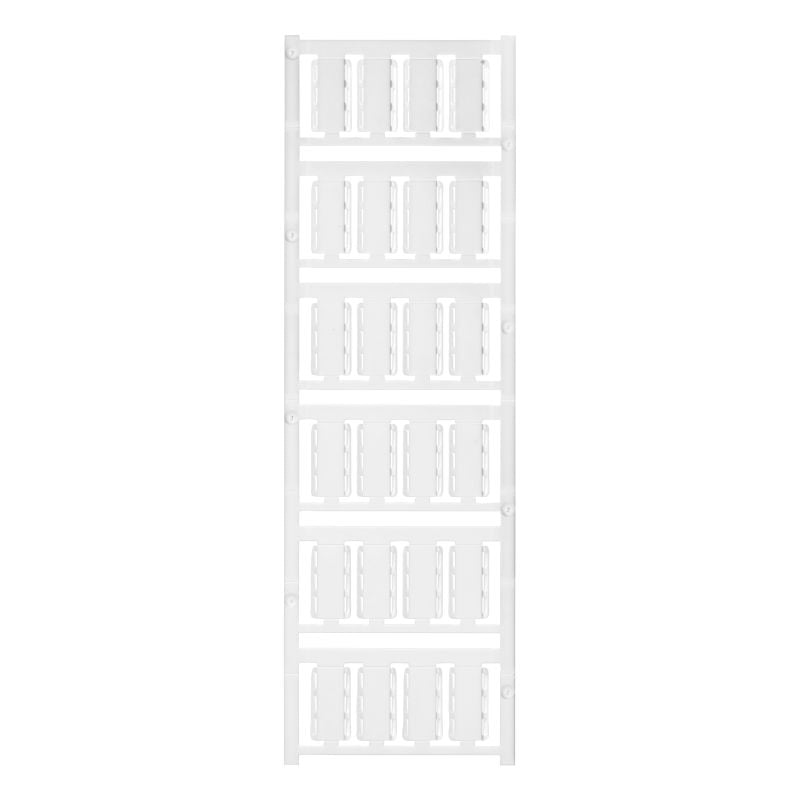

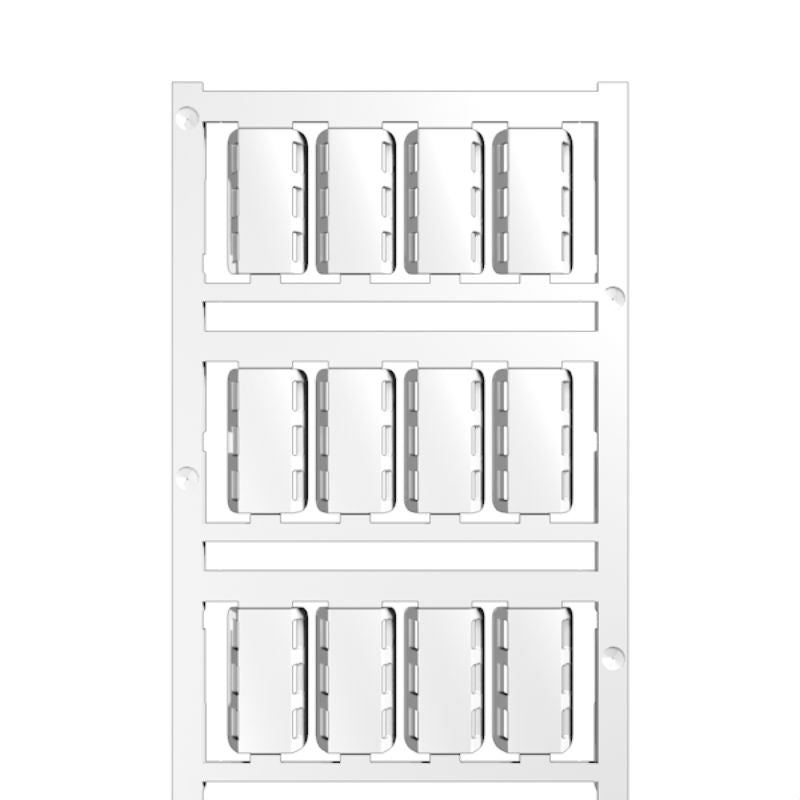

1323440000 - 24 x 13.62 mm White Cable Markers for 7-40 mm Conductors (Pack of 120)

1323440000 - 24 x 13.62 mm White Cable Markers for 7-40 mm Conductors (Pack of 120)

SKU: SKU: 1323440000

Variant:
  • 1323440000 - 24 x 13.62 mm White Cable Markers for 7-40 mm Conductors (Pack of 120)
Regular price Now $61.68
Regular price BEFORE   $0.00 Sale price Now $61.68
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix X conductor and cable markers, meticulously crafted for efficient marking applications These markers measure 24 x 1362 mm and are designed to fit conductors with an outer diameter of 7 mm to 40 mm Made from durable polyamide 66, they come in a crisp white color Complying with RoHS regulations, each marker boasts a minimal carbon footprint of just 0006 kg CO2 equivalent They are conveniently packaged in a MultiCard format, with each set containing 120 markers to meet your marking needs effortlessly.

Features and Benefits:

    •Compliant with RoHS without exemption.

    •Includes 120 items per packaging unit.

    •Operating temperature range from -40 to 100 °C.

    •Non-halogenated materials.

    •Installation compatible with cable ties.

    •Recommended for use in the transportation and machinery industries.

Specifications:

 Depth 0.8 mm
 Height 24 mm
 Width 13.62 mm
 Net weight 0.738 g
 Conductor O.D. 7 - 40 mm
 Conductor cross-section, max 500 mm²
 Conductor cross-section, min 16 mm²
 Operating temperature range (max) 100 °C
 Operating temperature range (min) -40 °C
 Size of labelling field 23.9 x 9 mm
 UL 94 flammability rating V-2
 Basic material Polyamide 66
 GTIN (EAN) 4050118125894
