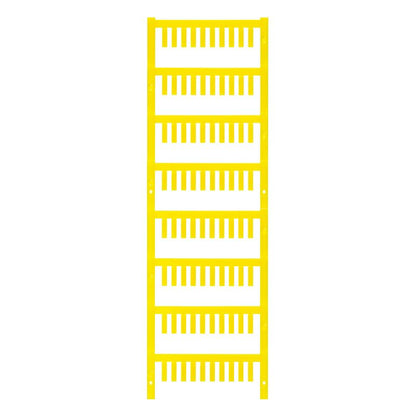

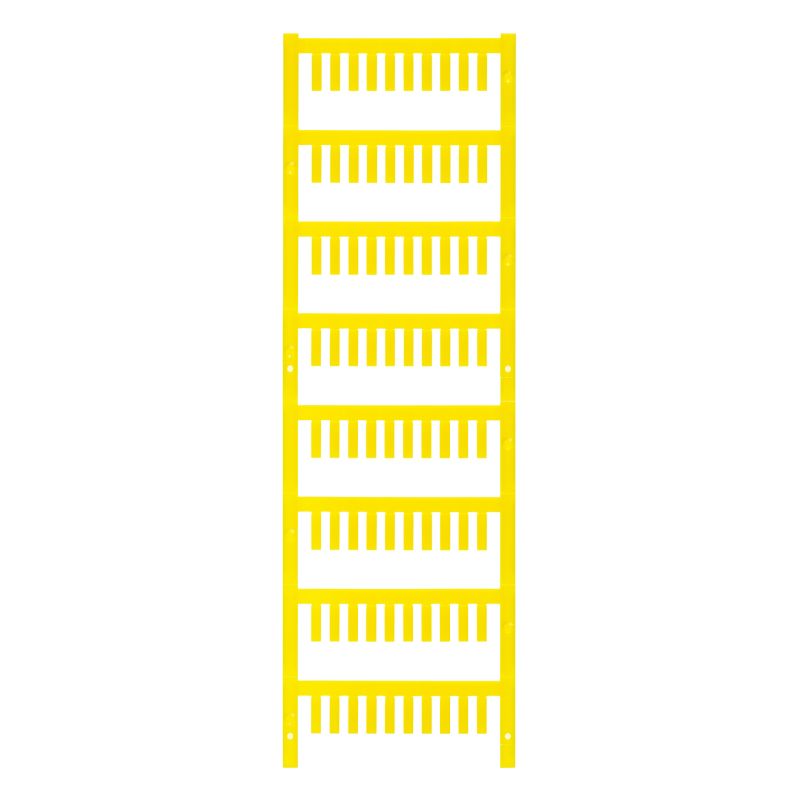

1318650000 - SlimFix R Cable Markers for 1.7-2.1mm Conductors, 400ct (Pack of 400)

1318650000 - SlimFix R Cable Markers for 1.7-2.1mm Conductors, 400ct (Pack of 400)

SKU: SKU: 1318650000

Variant:
  • 1318650000 - SlimFix R Cable Markers for 1.7-2.1mm Conductors, 400ct (Pack of 400)
Regular price Now $58.36
Regular price BEFORE   $0.00 Sale price Now $58.36
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix R, expertly crafted for the precise identification of cables and conductors measuring between 17 mm and 21 mm in diameter Each marker is designed with dimensions of 12 x 58 mm and is packed in MultiCards, totaling 400 units for your convenience This product adheres to RoHS standards and demonstrates a minimal carbon footprint of just 0002 kg CO2 equivalent from cradle to gate.

Built to endure a wide range of environments, the SlimFix R operates effectively at temperatures from -40 °C to 100 °C, utilizing non-halogen materials for added safety and performance.

Features and Benefits:

    •Compliant with RoHS regulations.

    •Made of Polyamide 66 material.

    •Suitable for use in the transportation and machinery industries.

    •Markers printed with neutral characters.

    •UL 94 flammability rating: V-2.

Specifications:

 Height 12 mm
 Height (inches) 0.472 inch
 Width 5.8 mm
 Width (inches) 0.228 inch
 Operating temperature range -40...100 °C
 Conductor cross-section, max 0.75 mm²
 Conductor cross-section, min 0.5 mm²
 Conductor O.D. 1.7 - 2.1 mm
 Conductor O.D., max 2.1 mm
 Conductor O.D., min 1.7 mm
 Cross-section for connected wire 0.5 - 0.75 mm²
 Number of markers per combination 1 MultiCard = Conductor and cable markers
 Form of supply MultiCard
 ETIM 6.0 EC001530
 ECLASS 9.0 27-40-04-01
