1274250000 - Robust D-Sub Connector, 180° Elbow, 12 MBit/s Data Rate

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

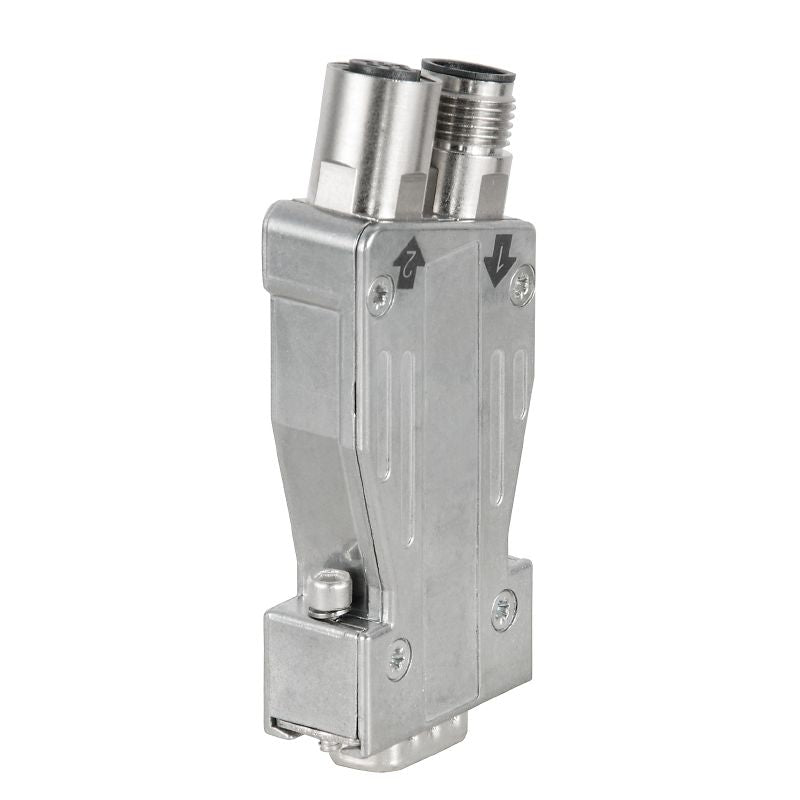

Introducing the PB-DP SUB-D M12 180 OS, a durable D-Sub connector built for reliable connections With a maximum operating humidity of 75% at 25°C (without condensation) and compliance with RoHS regulations (with an exemption), this connector also includes Lead classified as a SVHC It supports data transmission rates of up to 12 MBit/s and is ideal for use with D-Sub 9-pole bus interfaces Constructed from ZnAl material, it functions effectively within a temperature range of -20 to +70 °C.

This connector is built to last, featuring over 200 plugging cycles, a 180° outgoing elbow design, and an interlock mechanism of UNC4-40 for added security.

Features and Benefits:

•RoHS compliant with exemption.

•Max humidity of 75% at +25°C, non-condensing.

•Housing material made of ZnAl.

•Supports a data rate of 12 MBit/s.

•IP30 protection degree.

•Suitable for plugging cycles ≥ 200.

•Compatible with PROFIBUS specification.

Specifications:
