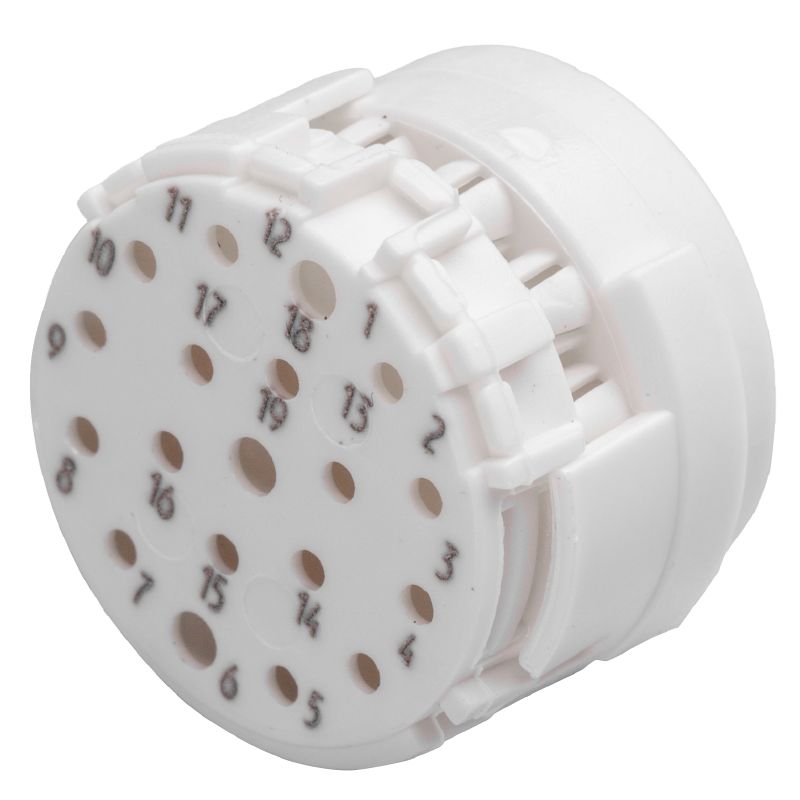

1170120000 - SAI-M23-SE-19 Male Connector, 19 Poles, RoHS Compliant

Description:

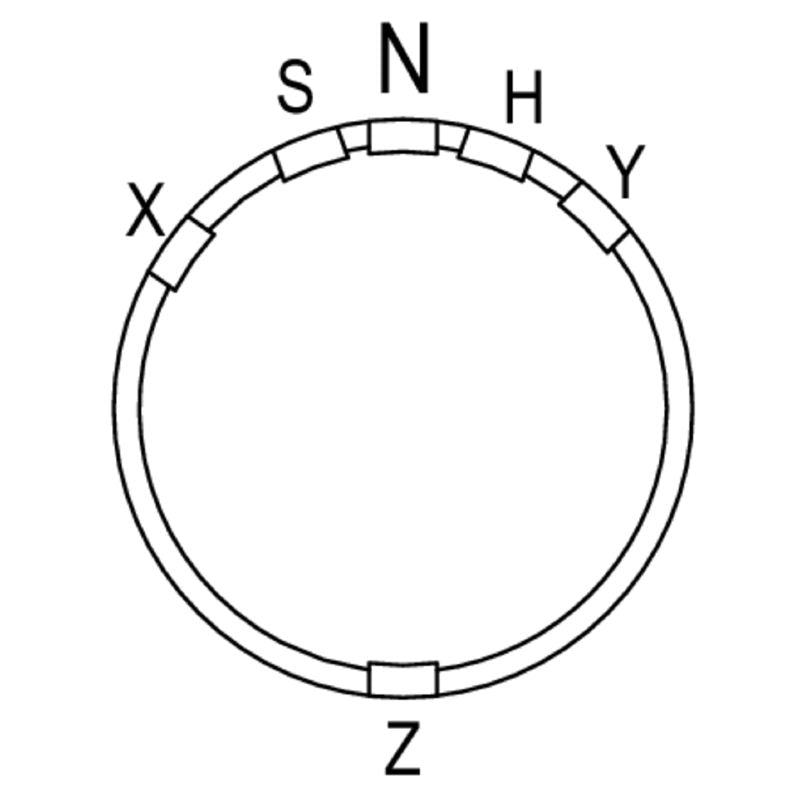

Elevate your connectivity with this advanced plug-in connector, crafted specifically for sensors and actuators in the SAI-M23-SE-19 configuration Fully compliant with RoHS standards, it ensures no harmful substances are present The connector features male contacts and supports multiple coding options—including H, N, S, X, and Y-coded formats—allowing for enhanced compatibility with various signal inserts.

Constructed from durable thermoplastic materials, including polyamide PA 6 and PBT, this connector withstands up to 1000 plugging cycles and is rated for pollution severity level 3 It operates at a nominal voltage of 100 V and accommodates connections of up to 19 poles With a rated current of 8 A for 1 mm contacts and 10 A for 15 mm contacts, the crimp connection type ensures versatility across different applications.

Features and Benefits:

•Male gender of contact.

•Coding options available for M23 signal inserts.

•Made from thermoplastic polyamide PA 6 and PBT.

•Rated current of 8 A for 1 mm contact and 10 A for 1.5 mm contact.

•Supports over 1000 plugging cycles.

Specifications:
