1093230500 - 5m M8 Actuator Cable with 4 Poles and LED Indicator

SKU: SKU: 1093230500

Variant:

1093230500 - 5m M8 Actuator Cable with 4 Poles and LED Indicator

Now $22.48

~~BEFORE $0.00~~ Now $22.48

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

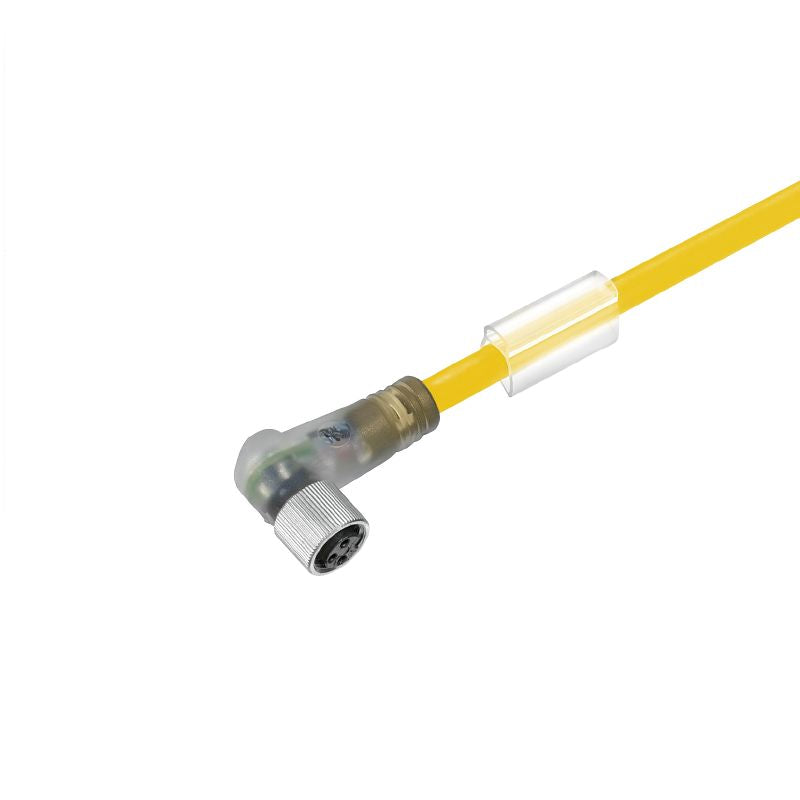

Introducing a versatile component from our sensor and actuator series, this product features a 4-pole M8 connector at one end, unconnected, and boasts a generous 5-meter length The angled socket design enhances flexibility in tight spaces, while the unshielded construction offers straightforward application Made from halogen-free PUR sheath material, this product also includes an LED indicator for added functionality.

Perfect for a range of electronic applications.

Features and Benefits:

•Not shielded.

•LED included.

•Sheath material is PUR.

•Halogen-free.

Specifications:

Acceleration	5 m/s²
Bending cycles	5 Mio
Bending cycles at torsion	> 5 Mio.
Bending radius, min., moving	10 x cable diameter
Bending radius, min., stationary	5 x cable diameter
Cable length	5 m

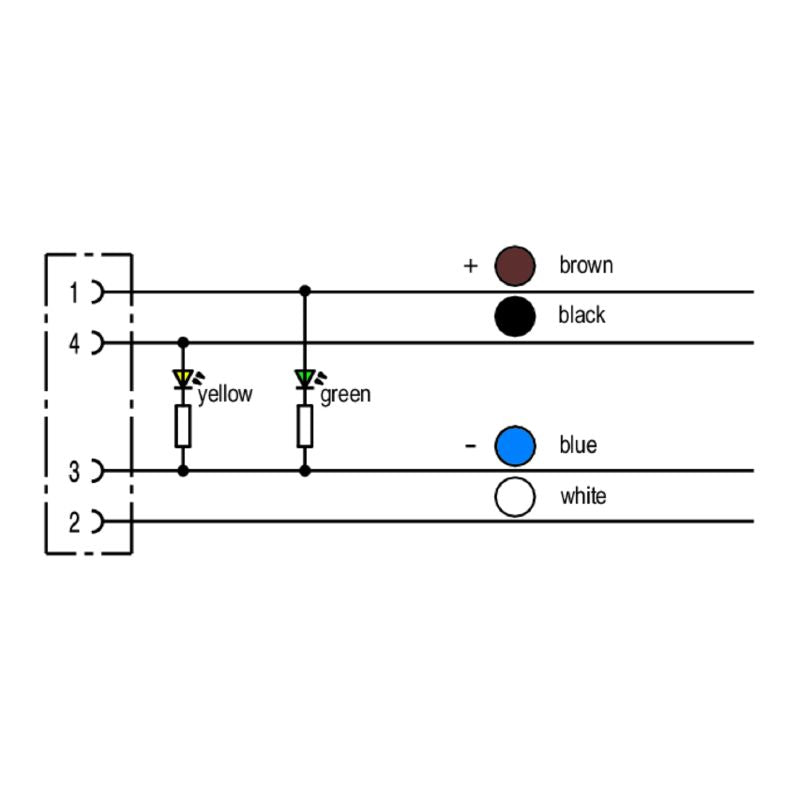

Colour coding	brown, white, blue, black
Core cross-section	0.25 mm²
Halogen	No
Hydrolysis and microbe resistant	Yes
Insulation	PP
LABS-free	Yes
Length of torsion	1 m
Number of poles	4

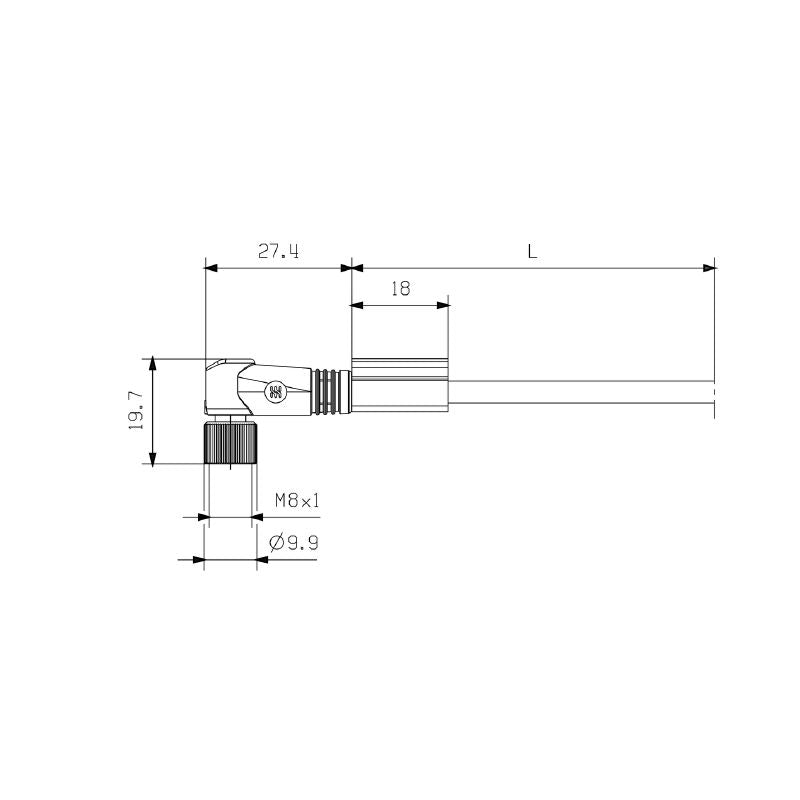

Outside diameter	4.4 mm ± 0.2 mm
Resistance to oils	in accordance with IEC 60811:404
Resistance to spread of flame	In accordance with UL1581 UL / CUL FT2 and IEC 60332-2-2
Sheath material	PUR
Sheathing colour	yellow
Speed	5 m/s
Suitable for cable carriers	Yes
Temperature range, moving	-25...80 °C
Temperature range, stationary	-40...80 °C
Torsion resistance	360 °/m
General technical data	{'Coding': 'A-coded', 'Connection thread': 'M8', 'Contact surface': 'Gold-plated', 'Housing main material': 'PUR', 'Insulation resistance': '10^8 Ω', 'jumpered': 'No', 'LED': 'Yes', 'Nominal current': '4 A', 'Nominal voltage': '24 V', 'Plugging cycles': '≥ 100', 'Pollution severity': '3', 'Protection degree': 'IP67, IP68 when screwed in, IP65, IP66', 'Temperature range of housing': '-25…+85 °C', 'Threaded ring material': 'Brass, nickel-plated', 'Tightening torque': 'M8: 0.5 - 0.6 Nm'}
