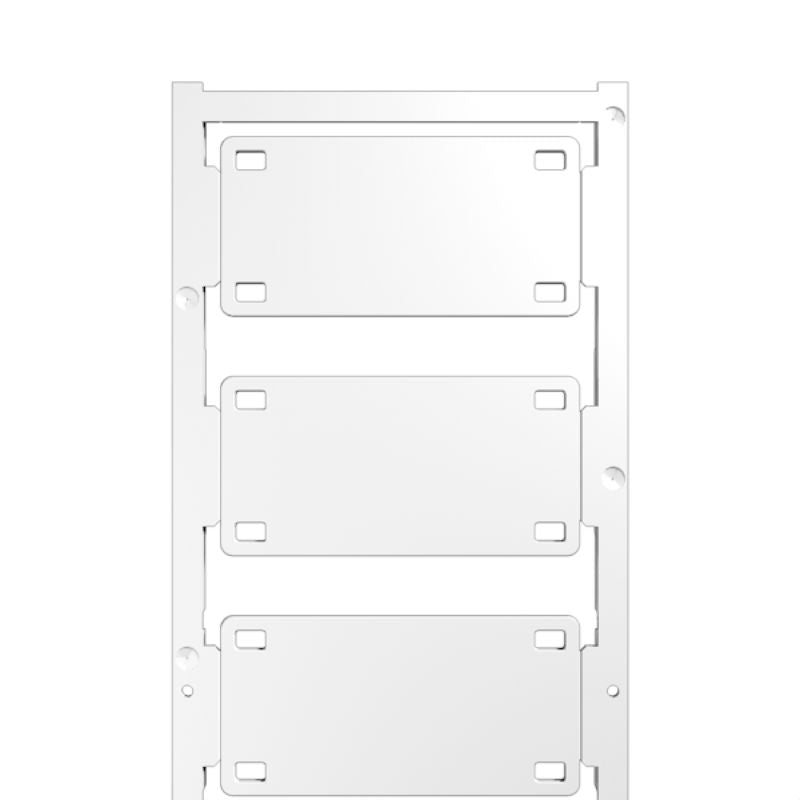

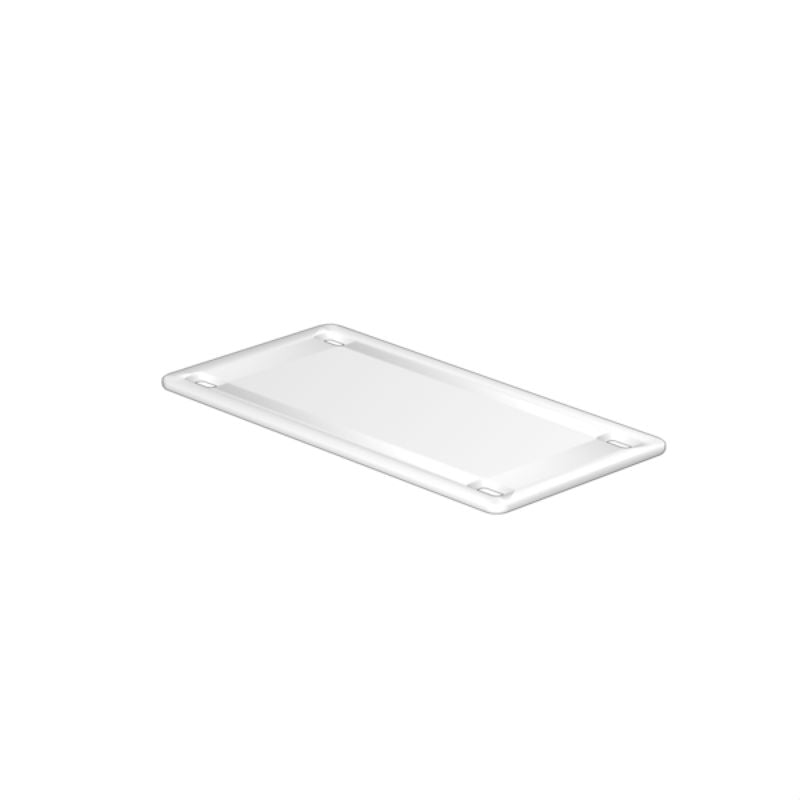

1083230000 - 60x30mm White Cable Markers for 7-40mm Conductor Sizes (Pack of 30)

1083230000 - 60x30mm White Cable Markers for 7-40mm Conductor Sizes (Pack of 30)

SKU: SKU: 1083230000 Download PDF

Variant:
  • 1083230000 - 60x30mm White Cable Markers for 7-40mm Conductor Sizes (Pack of 30)
Regular price Now $17.20
Regular price BEFORE   $0.00 Sale price Now $17.20
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SlimFix X series, the perfect solution for marking conductors and cables ranging from 7mm to 40mm Each marker measures 60 x 30 mm and features a clean white design These markers meet ROHS standards and have a minimal environmental impact, with a carbon footprint of just 0031 kg CO2 equivalents from cradle to gate Packaged in a convenient MultiCard unit, each card offers a selection of markers.

Designed to withstand extreme temperatures from -40 to 100 °C, the markers are made from durable polyamide 66 They are also compatible with PRINTJET CONNECT printers for effortless customization.

Features and Benefits:

    •Suitable for conductor and cable sizes from 7 to 40 mm.

    •Operating temperature range is from -40 to 100 °C.

    •Compliant with ROHS regulations.

    •Features a UL 94 flammability rating of V-2.

    •Packaged in MultiCard form for convenience.

    •Suitable for various industries including transportation and machinery.

    •Used for marking conductors and cables in various industrial applications.

Specifications:

 Dimensions (Width x Height x Depth) 30 mm x 60 mm x 1.2 mm
 Operating Temperature Range -40 to 100 °C
 Conductor Cross-Section (min) 16 mm²
 Conductor Cross-Section (max) 500 mm²
 Conductor O.D. (min) 7 mm
 Conductor O.D. (max) 40 mm
 Size of Labelling Field 45 x 30 mm
